In modern precision mechanical systems, ball screws and ball splines are widely used to achieve efficient, low-friction, and high-precision motion conversion. Although both utilize ball elements to reduce friction loss, they have fundamental differences in structural design, motion methods, and functional applications.

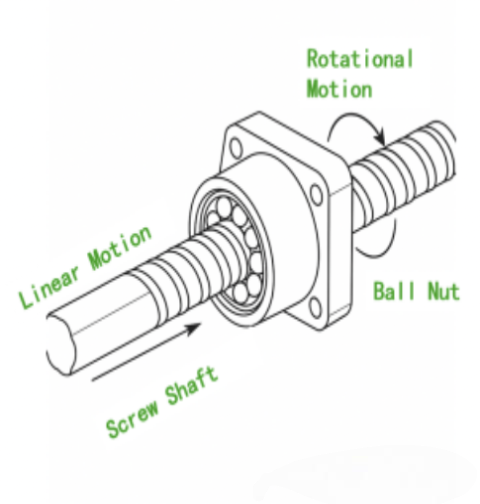

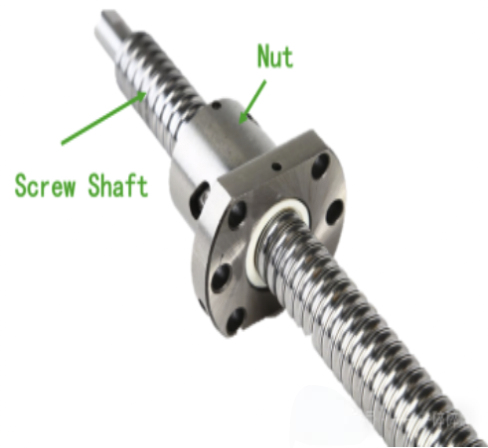

A ball screw is a mechanical component that converts rotary motion into linear motion, characterized by high efficiency, low friction, and high positioning accuracy. Its basic structure includes: a lead screw shaft (with helical raceways), a nut (with corresponding internal raceways), and a recirculating ball mechanism. The balls roll between the screw and the nut, effectively reducing friction resistance.
The threads of the ball screw and the balls inside the nut fit together precisely. When the lead screw rotates, the balls push the nut to move linearly along the axial direction. With each rotation, the nut advances by one pitch distance, achieving an efficiency of over 90%.

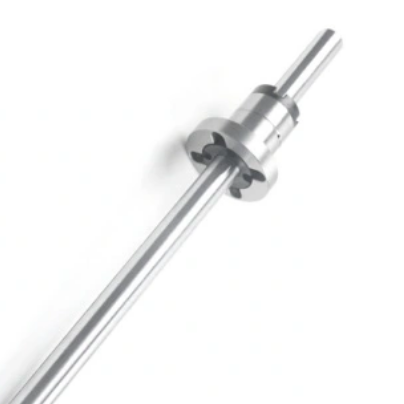

Ball Spline are mechanical components that can transmit torque while moving linearly. Their structure design make them suitable for systems requiring both linear and rotational functions.

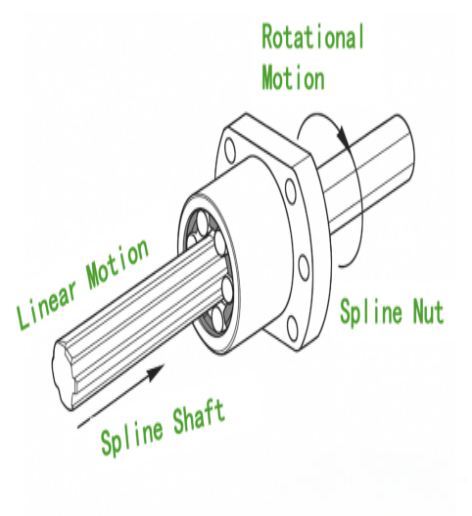

The outer ring of the ball spline is fitted with a slidable splined nut. The internal rollers circulate within precise grooves, allowing the shaft and outer nut to rotate synchronously while also sliding freely along the axial direction.
Comparison table
| Ball Screw | Ball Spline | |
Functional differences | It is mainly used to convert rotary motion into linear motion. | It is mainly used to connect two shafts and transmit torque and rotational motion. It allows for relative rotation between the shafts while transmitting torque. |
| Structural differences | Consisting of a screw shaft and multiple balls, the balls roll within the helical grooves of the screw shaft to achieve linear motion. | Consisting of a splined shaft and multiple balls, the balls roll in the grooves and protrusions of the splined shaft to achieve rotational movement. |
| Usage scenarios | Widely used in CNC machines, automation equipment, NC machinery, semiconductor-related equipment, and industrial robots. | Due to its high precision, high speed, and low friction characteristics, it is particularly suitable for fields with extremely high requirements for accuracy and reliability, such as semiconductors and medical devices. |
