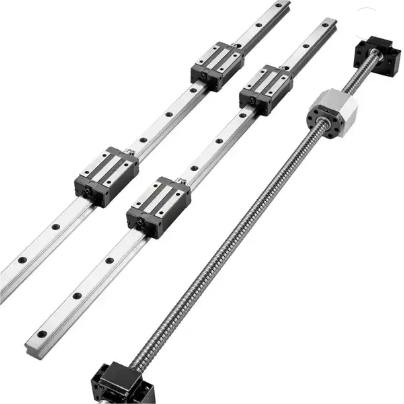

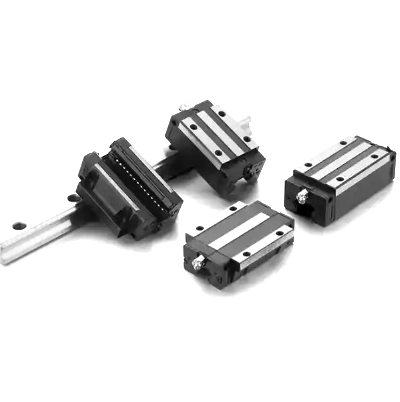

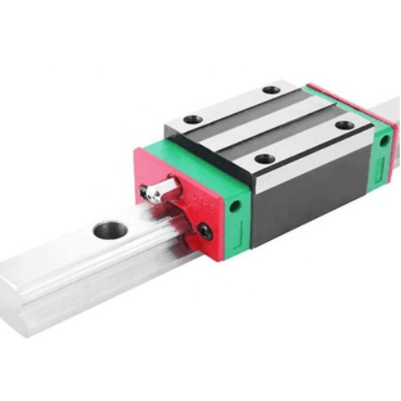

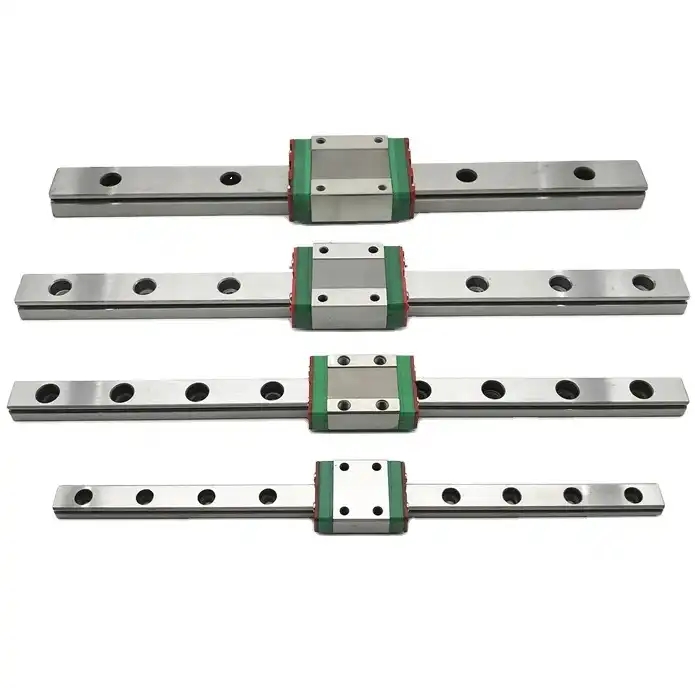

How Can High-precision Linear Guides Avoid Damage Issues?

To avoid damage to high-precision linear guides, multiple aspects such as installation, lubrication, load, protection, and maintenance need to be considered. Here are specific measures.

1. Precise installation

· Control installation errors: The flatness of the installation reference surface must be within 0.01mm/m, and it is recommended to use a laser interferometer for calibration to ensure that the spatial position error between the guide rails and the drive system does not exceed ±3μm.

· Adjust preload reasonably: Use a professional torque wrench to apply force in three increments, monitor the temperature after each load for 30 minutes, and finally stabilize the operating temperature at 45±5℃.

2. Scientific lubrication

· Select appropriate lubricants: Choose dedicated lubricants based on working conditions, such as ISO VG32 guide rail oil or perfluoropolyether lubricant (suitable for vacuum environments). High-temperature environments can use high-temperature resistant silicone grease.

· Establish a lubrication management system: Install an automatic oil injection system to replenish 0.1 ml of lubricating oil every 8 hours, maintaining the oil film thickness at 0.5 - 1 μm.

3. Optimize load distribution

· Precise load calculation: The multi-slider system needs to reconstruct the force model through finite element analysis, keeping the load deviation within ±5%.

· Real-time dynamic load monitoring: Install miniature load sensors at the slider ends, automatically triggering emergency stop protection when the instantaneous load exceeds 150% of the rated value.

4. Strengthen dust-proof sealing

· Graded protection: Double-layer oil-scraping plates are used for sealing in ordinary workshops. For high-cleanliness environments (such as chip manufacturing workshops), a positive pressure air curtain + labyrinth seal composite protection is required, and the protection level is recommended to reach IP67.

· Regular replacement of sealing parts: The hardness of polyurethane sealing strips should be tested every six months. They must be replaced when the Shore hardness drops by 15 points.

5. Intelligent Operation and Maintenance Management

Build a predictive maintenance platform: By collecting the frequency spectrum of rail operation using vibration sensors, when the energy value in the 3-5kHz band exceeds the baseline by 20% for three consecutive times, it indicates that the raceway may be experiencing spalling, providing timely warnings and maintenance.

Establish a full lifecycle archive: Using a QR code traceability system to record parameters such as lubrication amount, preload adjustment values, and load peaks, optimizing maintenance cycles through data modeling.

Through these measures, the service life of high-precision linear guides can be effectively extended, reducing fault risks and ensuring stable equipment operation.
