How To Avoid The Problems of Sagging And Resonance in Long-stroke Trapezoidal Lead Screws?

The sagging (deflection deformation) and resonance (critical speed resonance) of long-stroke trapezoidal lead screws are common pain points in long-stroke mechanical design. They can be avoided by optimizing the structure, selecting appropriate components, optimizing installation, and controlling parameters. The specific avoidance methods are as follows:

1. Optimize the structure and support method:

1.1 Shorten the effective support spacing (increase intermediate supports): This is the most effective method to suppress sagging and resonance. For long-stroke screws (over 1.5 meters), intermediate support seats (anti-jump devices) must be installed, and the long screw should be segmented to significantly reduce the length-to-diameter ratio and improve overall rigidity, avoiding sagging and high-speed swaying in the middle.

1.2 Optimize the end support method: Prefer "both ends fixed" or "double push-push" support to maximize the bending resistance; if space is limited, "both ends fixed + pre-tension" or "double push-support" combinations can be used to avoid the "one end fixed, one end free" cantilever structure, which is prone to sagging and resonance.

1.3 Change the driving method (nut rotation): In vertical lifting and other long-stroke scenarios, the "nut rotation, screw fixed" method can be adopted, allowing the screw to only bear tension or pressure, completely avoiding the resonance risk brought by high-speed rotation, and eliminating the influence of self-weight sagging.

1.4 Add dynamic/auxiliary support: Add adjustable or follow-up auxiliary support on the path of the nut movement. When the nut reaches the support position, provide auxiliary support, and automatically avoid interference during movement.

2. Select appropriate components and control parameters:

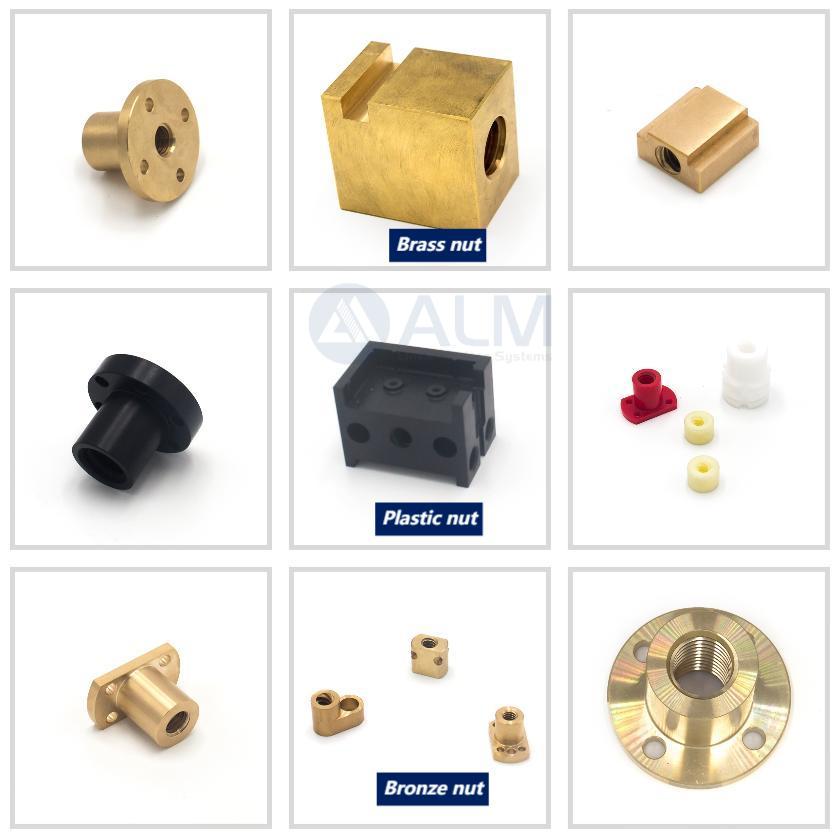

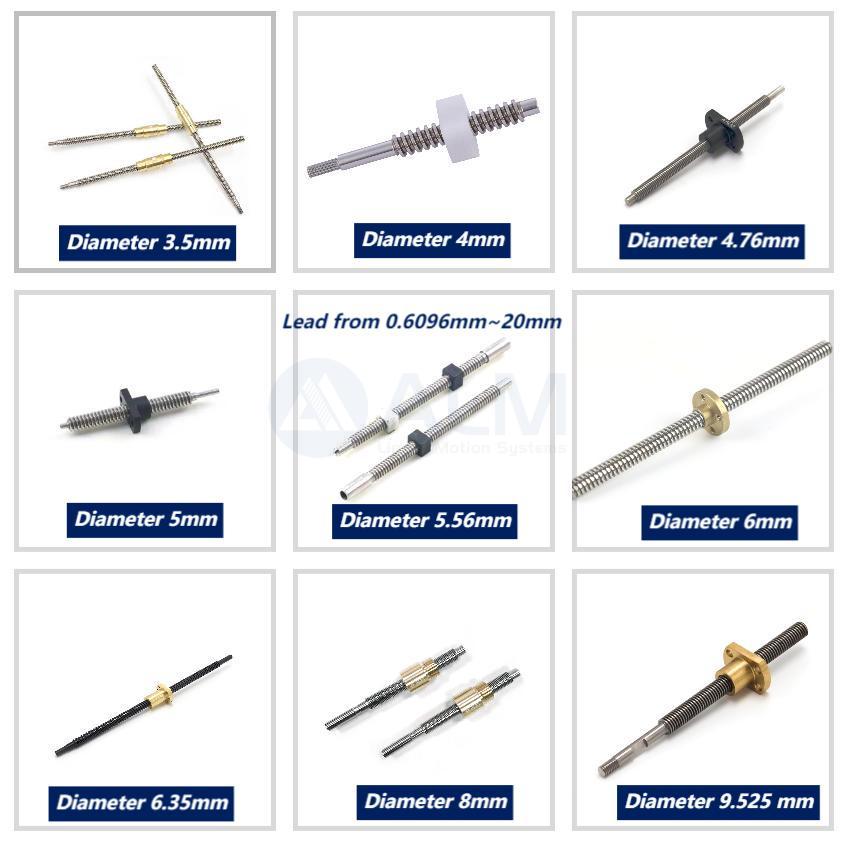

2.1 Increase the screw diameter: The larger the diameter, the better the rigidity, the higher the critical speed, and the stronger the resistance to sagging and resonance. If cost is within limits, choose a large-diameter screw and control the length-to-diameter ratio (travel/diameter) within a reasonable range (recommend a ratio of ≤ 40, extreme cases ≤ 60, and if exceeded, add intermediate supports).

2.2 Pre-tension design: When both ends are fixed supports, apply pre-tension force (pre-tension) to the screw to counteract self-weight sagging and thermal expansion deformation during operation, improving the transmission stability.

2.3 Optimize operating speed: Through finite element analysis or calculation, determine the critical speed of the screw, strictly control the operating speed within 80% of the critical speed, avoiding the resonance zone; if the speed cannot be changed, use a large lead screw, reducing the rotational speed to avoid resonance points at the same linear speed.

3. Enhance system rigidity and vibration reduction:

3.1 Strengthen guidance and share radial force: The screw only bears axial force, the radial force must be borne by high-precision linear guides or guiding shafts to avoid bending deformation of the screw due to radial eccentric loading.

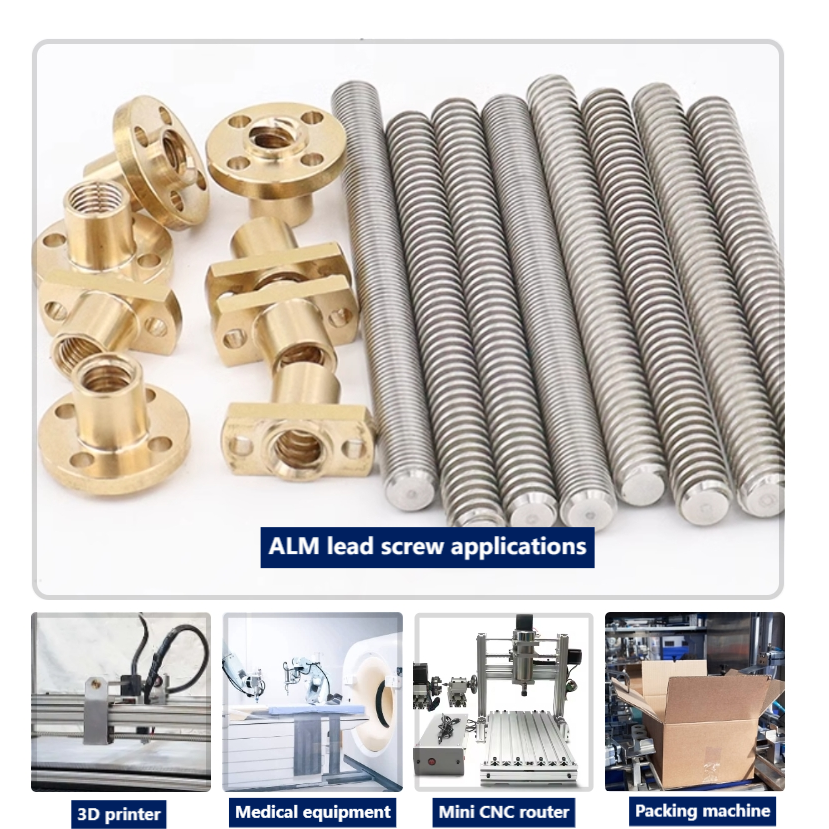

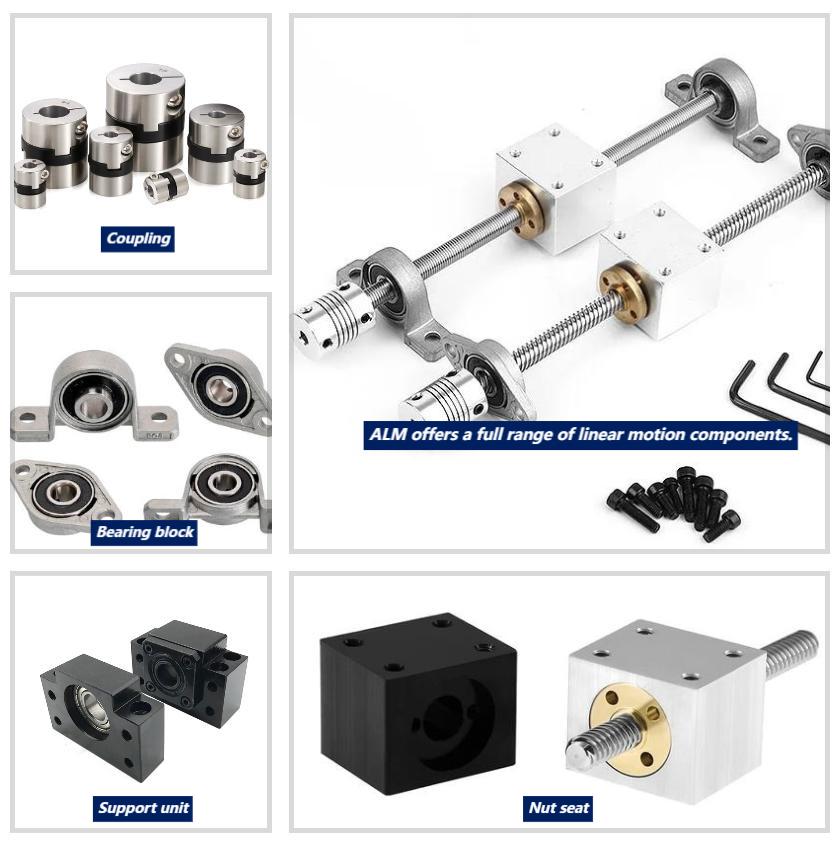

3.2 Optimize coupling and vibration reduction: Use diaphragm or meihua coupling between the motor and the screw to compensate for installation errors and reduce start-stop impacts； add vibration reduction supports or dampers on the support seat or frame to absorb high-frequency vibrations.

3.3 Ensure installation accuracy：Strictly control the parallelism of the screw axis and the guide rail (error controlled within 0.02mm/m) and the coaxiality of the coupling to avoid local uneven force and abnormal vibration due to installation tension.
