How To Install Miniature Lead Screw Assembly?

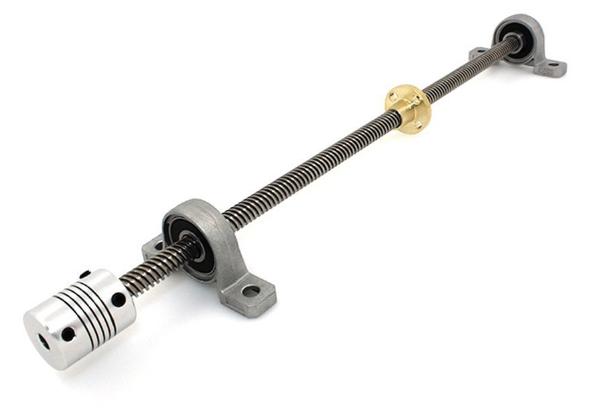

To ensure the best performance and longevity of miniature lead screw assemblies,it is important to install them correctly.Lead screw assembly usually contains lead screw,lead nut,coupling, motor,lead screw support unit.The steps below provide a general guide on how to properly install a miniature lead screw assembly.

1.Install the miniature lead screw onto the end supports,making sure that the machined surfaces on the lead screw and support bearings are aligned properly.

2.Place the miniature lead nut onto the guided carriage.Make sure the lead nut remains aligned with the lead screw, and that the flange/thread mount faces are perpendicular to the lead screw when fastening it down.Move the carriage manually along the lead screw's stroke to check for any resistance and ensure correct mounting.

3.Connect the motor or other drive mechanism to the lead screw.Ensure that the rotational axis is aligned with the lead screw or that the coupling compensates for any misalignment.

4.Turn the lead screw by hand and move the carriage along the entire length of the screw to check alignment and ensure there are no areas with excessive resistance.Once verified,secure all fasteners according to the specifications.The installation is now finished.
