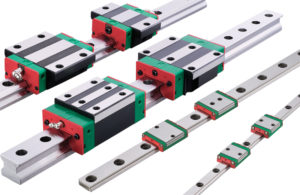

How To Maintain Linear Guides?

The maintenance of linear guides includes aspects such as cleaning, lubrication, calibration, inspection, and upkeep.

Cleaning

Maintaining the cleanliness of linear guides is the first step in maintenance. Here are some suggestions for cleaning linear guides:

1. Use a soft brush or hairdryer to clean dust and dirt from the surface of the guide. Make sure to use non-corrosive cleaning agents to avoid damaging the guide surface.

2.Apply an appropriate amount of lubricant to the linear guide at suitable intervals. Use suitable lubricant and ensure that the guide surface is clean before lubricating.

3. Regularly check the surface of the guide rails for scratches, wear, or other damage. If any abnormalities are found, take corrective measures or replace the damaged parts promptly.

Lubrication

Linear guides are precision transmission devices that must be lubricated. If used without lubrication, an appropriate lubrication method must be applied to the rolling elements.

Lubrication with grease involves pre-filling lubricant into sealed rail systems and filling an appropriate amount of grease inside the housing, replenishing or replacing it at regular intervals. Additionally, for machinery requiring lubrication at multiple rails, a centralized grease supply method is used, connecting pipes to each lubrication point.

Calibration

Proper calibration ensures smooth and precise movement of linear guides. Here are some steps for calibrating linear guides:

1. Adjust the fixed bolts or shims to correct vertical alignment.

2. Use measuring tools to check the parallelism between the guide. If deviations are found, adjust the fixed bolts or shims appropriately to ensure the guide are parallel.

Inspection and upkeep

In addition to cleaning and calibration, regular inspection and maintenance of linear guides are also crucial aspects of upkeep. Here are some methods for inspecting and maintaining linear guides:

1. Regularly check the fasteners on the guide rails to ensure they are securely tightened. If any are loose, tighten them promptly.

2. Use measuring tools to check if the linear path of the guide rails is smooth and continuous. If any abnormalities are found, adjust and repair them promptly.

3. Create a maintenance log to record each maintenance activity and its outcome. This helps track the history of upkeep and promptly identify any potential issues.

The above mentioned maintenance measures can extend the lifespan of linear guides and improve their performance. Proper maintenance ensures that the guides remain in optimal working condition, thereby supporting the normal operation of machinery.
