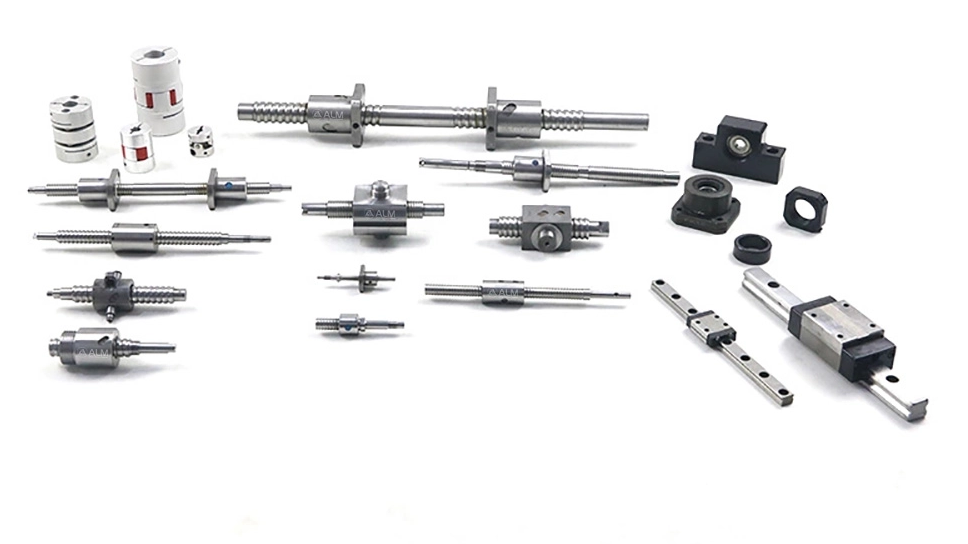

How To Select A Ball Screw for Heavy-Duty Applications?

When selecting a ball screw for heavy-duty applications, factors such as load, precision, speed, and travel distance must be carefully considered. Below are the key selection guidelines:

1. Determine Load Requirements

Calculate the axial load, including static loads (e.g., equipment weight, workpiece mass) and dynamic loads (e.g., inertial forces during acceleration and deceleration).

Select a ball screw with an appropriate nominal diameter based on the load magnitude—typically, higher loads require larger shaft diameters (e.g., ≥32 mm) to ensure sufficient load capacity and buckling resistance.

2. Choose Precision Grade

Heavy-duty applications usually have relatively lower precision requirements; C7 or C10 grade ball screws are suitable, meeting basic positioning needs while controlling costs.

If higher precision is required, consider C5 grade, but balance performance with increased cost.

3. Determine Lead

Select the lead based on speed requirements: use larger leads (e.g., 16 mm, 20 mm) for high-speed motion, and smaller leads (e.g., 10 mm, 12 mm) for higher thrust.

Ensure the lead matches the motor speed so that the ball screw achieves the desired linear velocity within its rated rotational speed.

4. Select Installation Method

For heavy-duty applications, a fixed-fixed mounting configuration is recommended, using angular contact ball bearings or thrust bearings at both ends to handle significant axial and radial forces, thereby improving system rigidity and stability.

If space is limited, a fixed-supported arrangement may be used, provided the support end effectively shares the load.

5. Consider Preload

In heavy-duty scenarios, preload is essential to eliminate axial clearance, enhancing rigidity and impact resistance. Options include double-nut preload or single-nut preload, with preload force determined by load and precision requirements.

6. Verify Critical Speed

Calculate the critical speed of the ball screw to ensure actual operating speeds remain below this threshold, avoiding resonance. Generally, longer travel distances result in lower critical speeds—perform detailed calculations based on specific travel length and lead.

7. Consider Service Life and Lubrication

Select a ball screw with adequate service life based on operational cycles and load conditions; industrial applications typically require a minimum life of 10,000 hours.

For heavy-duty operations, implement a forced lubrication system to maintain proper lubrication under high-speed and high-load conditions, thereby extending service life.
