Short Stroke And High Precision Equipment - Why Choose Cross Roller Guideways?

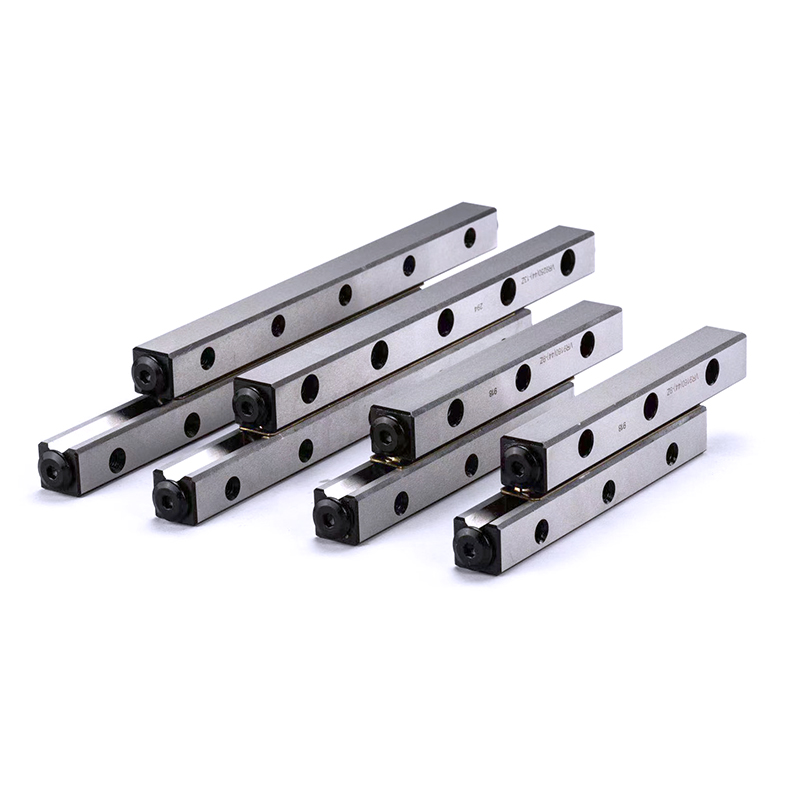

The reason why short stroke and high precision equipment prefer cross roller guideways is that they perfectly meet the strict requirements of such equipment in terms of precision, rigidity, smoothness of motion, and spatial adaptability. They compensate for the performance shortcomings of traditional linear guideways in short stroke and high precision scenarios. The specific reasons are as follows:

1. High precision and excellent micro-motion performance

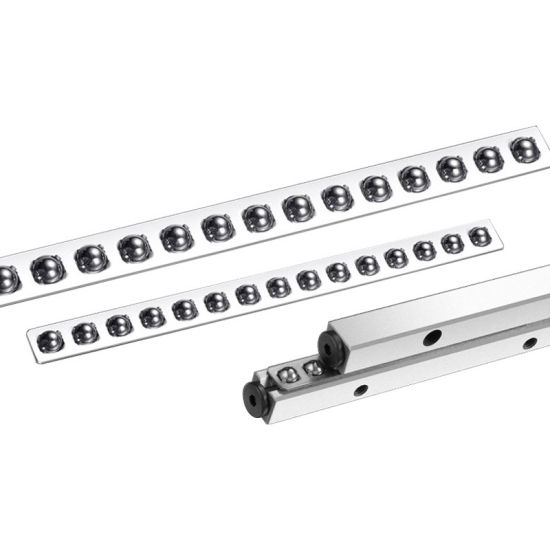

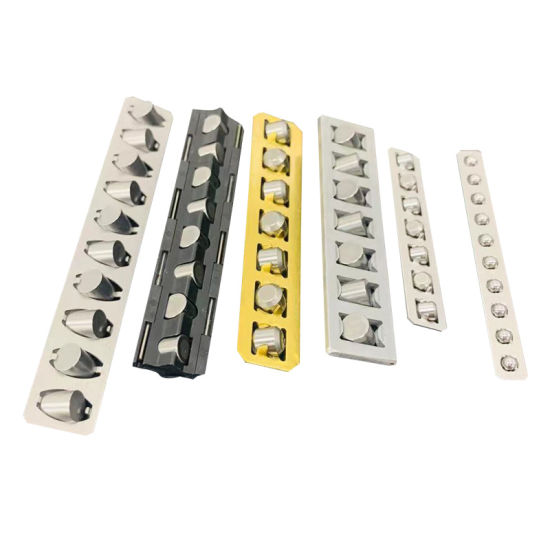

1.1. Line contact and zero clearance: The cross roller guideways use cylindrical rollers in line contact with V-shaped raceways. The contact area is large, the elastic deformation is minimal, and zero backlash is achieved through preload elimination. The repeat positioning accuracy can reach sub-micron level, and the long-term precision degradation is slow.

1.2. Smooth micro-motion without crawling: The friction coefficient is extremely low, and the difference in static and dynamic friction forces is small. During low-speed micro-motion, the movement is smooth without any jamming or crawling, perfectly adapting to scenarios with extremely high micro-motion precision requirements such as optical detection and semiconductor micro-displacement.

2. Extremely strong rigidity, excellent anti-deformation ability

Line contact and four-way bearing capacity: The rigidity of the cross roller guideways is far superior to that of linear guideways' "point contact", and the rollers are arranged crosswise (90° V-type) to achieve equal strength bearing in all directions, which can perfectly counteract radial, axial, and overturning moments. When bearing the weight of the spindle or local uneven loading, the deformation is minimal, ensuring the positioning stability of the equipment.

3. Perfectly compatible with short stroke and compact space

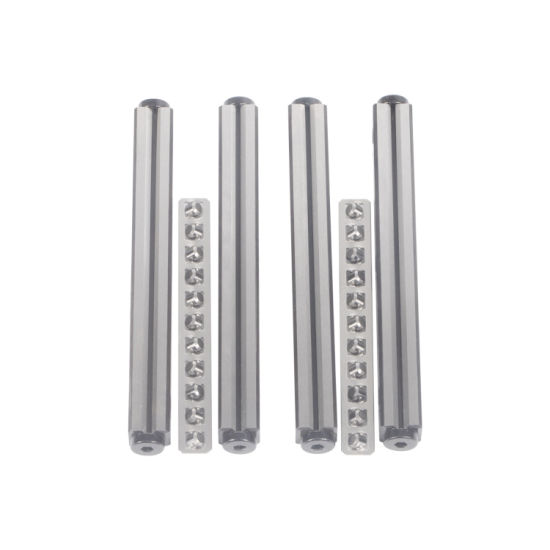

3.1. Stroke matching: The cross roller guideways are of a split structure, with a limited stroke (usually ≤ 1000mm), which precisely matches the motion range of short stroke equipment, avoiding the redundancy and space waste of long stroke guideways.

3.2. Compact structure: The split ultra-thin structure has a low installation height, effectively compressing the equipment space, and is suitable for the design of small-sized, integrated, and compact precision equipment.

4. Smooth motion, excellent vibration resistance

Pure rolling design of rollers, low running resistance, and the optimized preload structure ensure smooth operation with low noise, effectively absorbing and dispersing the tiny vibrations during equipment operation, guaranteeing the accuracy of data in high-precision detection or processing.

5. Long lifespan and good precision retention

The line contact design reduces the pressure per unit area, and wear is uniform. In short stroke and high-frequency reciprocating conditions, the wear of the guideways is minimal, and the equipment can maintain extremely high precision consistency under long-term operation. The overall long-term usage cost is lower.

In conclusion, cross roller guideways, with their core advantages of "line contact + zero clearance + four-way high rigidity", have become an indispensable preferred solution for short stroke, high precision, and high rigidity equipment (such as semiconductor inspection equipment, optical testers, precision measuring machines, medical imaging equipment, etc.).
