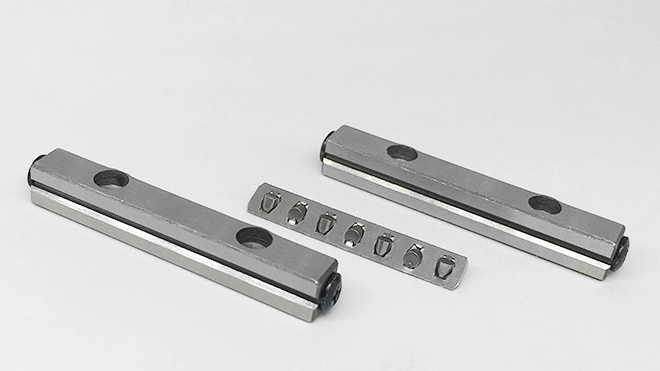

What Are The Advantages And Disadvantages of Cross Roller Guides?

The cross roller guide is a common precision guiding component. Here are its main advantages and disadvantages:

Advantages:

1. High precision

The rollers are in line contact with the V-shaped raceway, and with precise processing and pre-pressing design, it can achieve extremely high repeat positioning accuracy (up to ±0.001mm or even higher), suitable for scenarios with extremely high motion precision, such as semiconductor manufacturing and precision measuring instruments.

2. High rigidity

The rollers are arranged crosswise, which can effectively disperse the load. Through pre-pressing, the gap can be eliminated, making the guide rail system have high rigidity, capable of withstanding large radial, reverse radial and torque loads, with good vibration resistance, suitable for use in scenarios with load changes or impact loads.

3. Low friction and smooth movement

The rollers have rolling friction with the guide rail, with a low friction coefficient (usually 0.001-0.003), smooth movement without jamming, small starting force, suitable for high-speed, high-frequency reciprocating motion, and low operating noise.

4. Multi-directional load-bearing capacity

When two rails are installed parallelly, it can withstand four-directional loads (radial, reverse radial, torque), has strong anti-bias load capacity, and can adapt to complex force conditions.

5. Long service life

The line contact design between the rollers and the guide rail reduces the pressure per unit area, combined with good lubrication and material selection, wear is small, and the service life is long. Especially under reasonable pre-pressing and load conditions, the service life can be significantly extended.

Disadvantages:

1. Complex installation

High installation accuracy is required, ensuring the parallelism, perpendicularity and pre-pressing quantity of the guide rail parameters are accurate. The installation process requires professional tools and techniques, otherwise it may affect performance.

2. Higher cost

Due to the high requirements for precision processing, material selection and manufacturing process, the manufacturing cost of cross roller guides is relatively high. Especially in high-end applications, the price may become a consideration factor in the selection.

3. Limited travel

Limited by the roller cage and the guide rail structure, the effective travel is usually limited, not suitable for scenarios requiring extremely long travel.

4. High maintenance requirements

Although the service life is long, once wear or damage occurs, maintenance is difficult, and professional personnel may be required for disassembly, inspection and component replacement. The maintenance cost is high. In summary, cross roller guides are suitable for scenarios with high requirements for precision, rigidity and smoothness, and where the travel and installation conditions permit. However, in terms of cost, complex installation and travel limitations need to be weighed according to specific application requirements.
