What are the advantages of ball screws used in AOI equipment?

Views: 0     Author: Site Editor     Publish Time: 2023-10-11      Origin: Site

What are the advantages of ball screws used in AOI equipment?

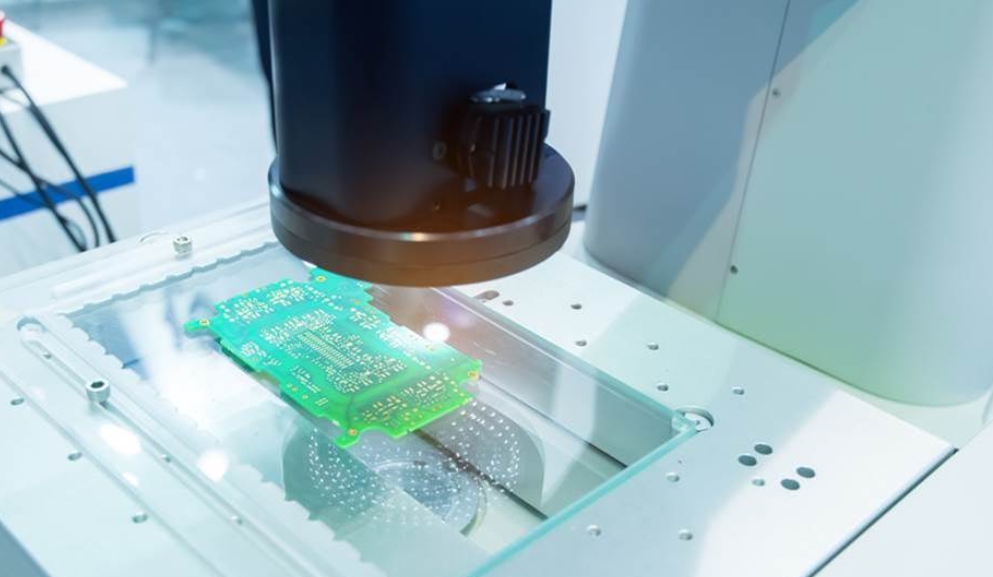

AOI(Automated Optical Inspection) is an essential technology used in the electronics manufacturing industry to inspect and detect defects in printed circuit boards (PCBs).The accuracy and efficiency of AOI equipment greatly depend on the precision and stability of its mechanical components,such as the ball screw.

ALM ball screw China

The ball screw is a mechanical device that converts rotary motion into linear motion with minimal friction. It consists of a screw shaft and a nut with ball bearings between them.When the screw shaft rotates, the balls roll between the screw shaft and the nut, converting the rotational motion into linear motion.

In AOI inspection equipment, the ball screw is widely used for its numerous advantages. Firstly, it provides high precision and accuracy. The ball bearings reduce friction, ensuring smooth and precise movement of the screw shaft. This enables the AOI equipment to accurately position the inspection head and capture high-resolution images of the PCBs, thus improving the detection accuracy of defects.

Secondly,the ball screw offers excellent repeatability. Its design ensures that the nut and screw shaft have minimal backlash, allowing for precise and repeatable motion. This is crucial in AOI inspection, as it guarantees consistent inspection results and minimizes false positives or negatives.

Additionally,the ball screw provides high load-carrying capacity. The ball bearings distribute the load evenly along the screw shaft, allowing it to handle heavy loads without compromising its performance. This is particularly important in AOI equipment, as it often needs to move the inspection head across large PCBs or multiple boards simultaneously.

Furthermore, the ball screw is known for its durability and longevity. The ball bearings and the hardened surfaces of the screw shaft and nut reduce wear and tear, ensuring prolonged service life. This is beneficial for AOI inspection equipment, as it operates continuously for extended periods, requiring components that can withstand high usage.
