What are the advantages of cross roller guides?

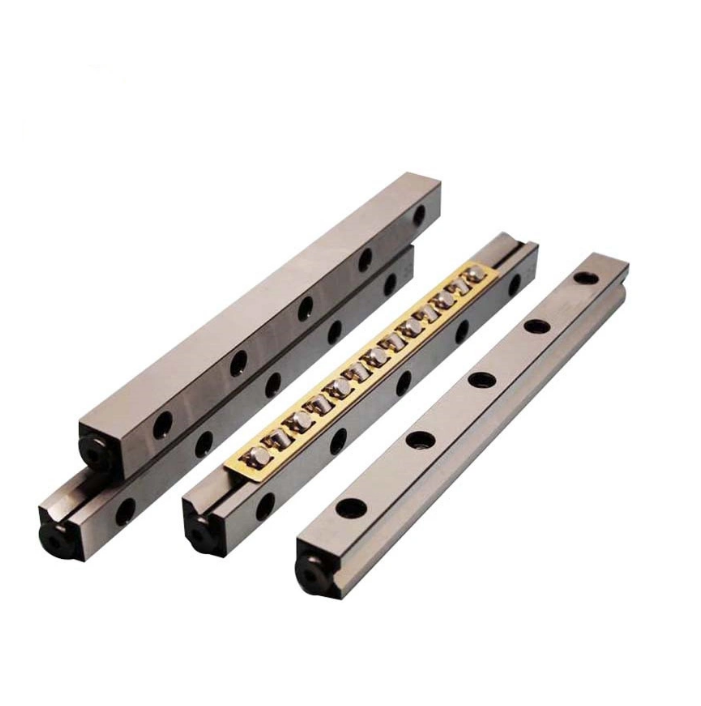

Cross roller guide is a linear guide with limited travel.It is loaded with alternating orthogonal cylindrical rollers in two 90 degree V-groove slides.Because of its special arrangement mode,it can bear torque load in any direction,so it is especially suitable for linear steering in the need of high rigidity and flexible motion.

The cross roller guide is used to press the part with a press plate so that the side of the part is close to the installation datum.Use a torque wrench to tighten the installation screws of the parts one by one according to the torque specified in the following table,starting from the middle and tightening to both ends in a cross sequence.

Advantages:

●High precision:Cross roller guide has high precision, which can meet the requirements of high precision applications.

●High rigidity:The structure design of cross roller guide rail makes it have high rigidity and can bear large load.

●Low friction:Cross roller guide adopts rolling friction,which has less friction compared with other guides and can reduce energy loss and wear.

●Long life:Because the cross roller guide adopts rolling friction,less wear,so it has a long service life.

●Wide application range:Cross roller guide can be used in a variety of mechanical equipment,such as CNC machine tools,semiconductor manufacturing equipment,medical equipment,etc.
