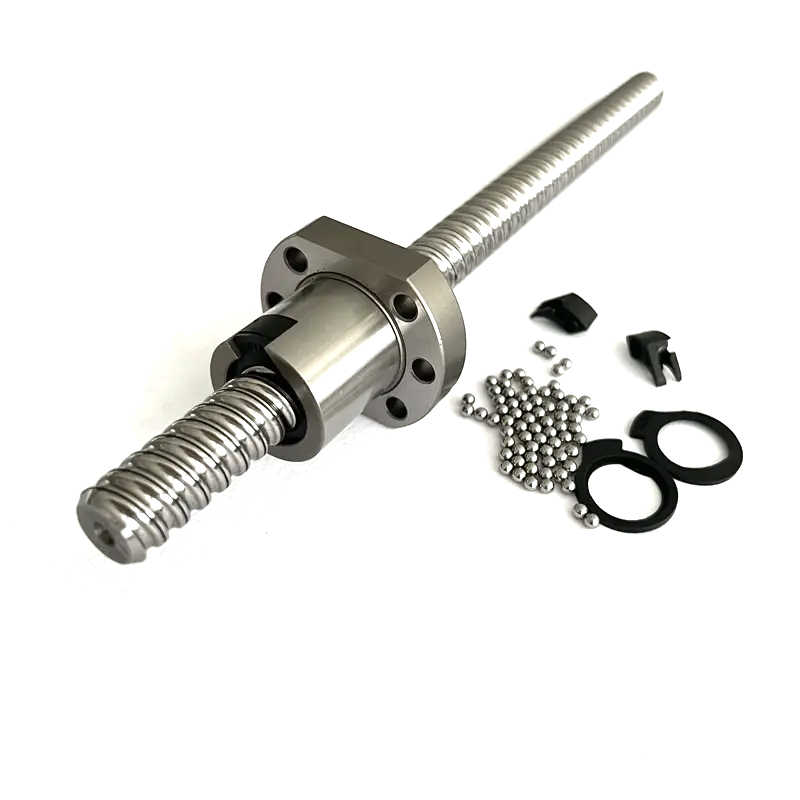

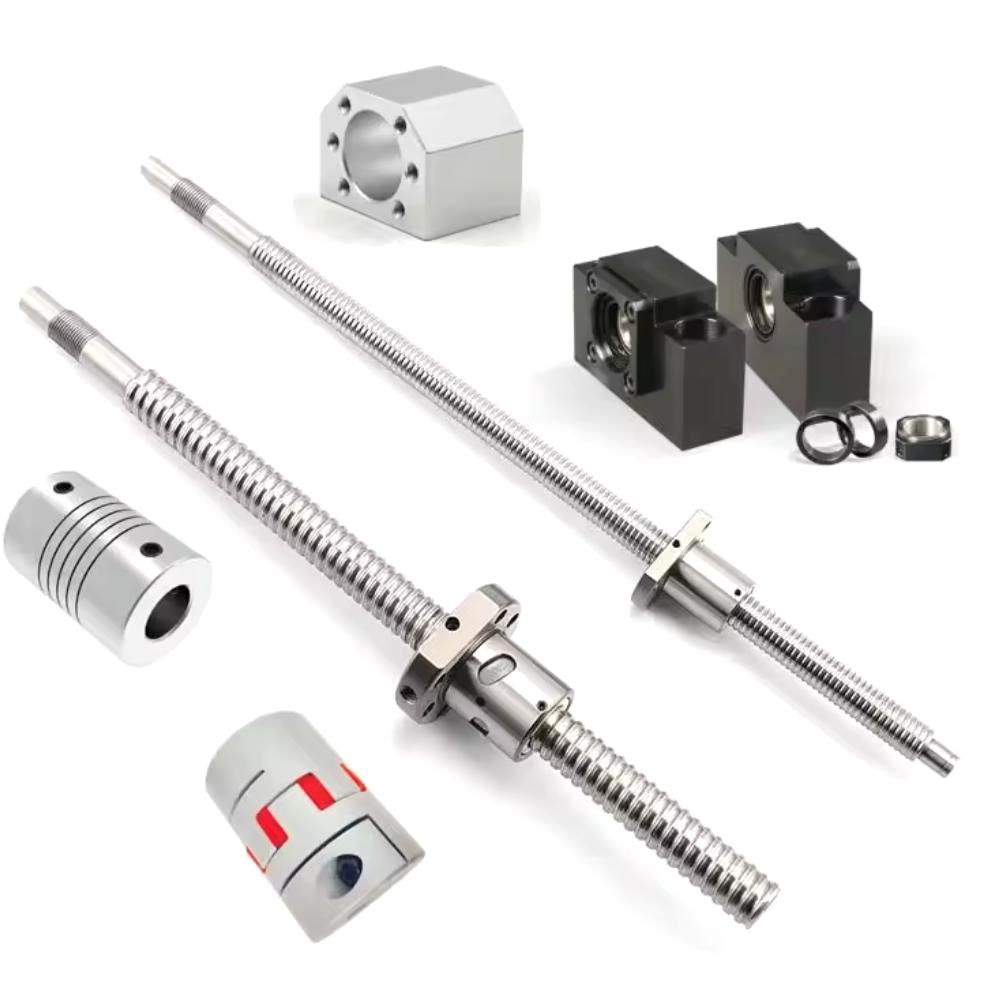

What Are The Assembly Steps for A Ball Screw?

A ball screw is an efficient and precise transmission component widely used in machine tools, automation equipment, and other fields. Proper assembly of a ball screw is crucial for ensuring its performance and extending its service life. Below are the assembly steps and key points for a ball screw:

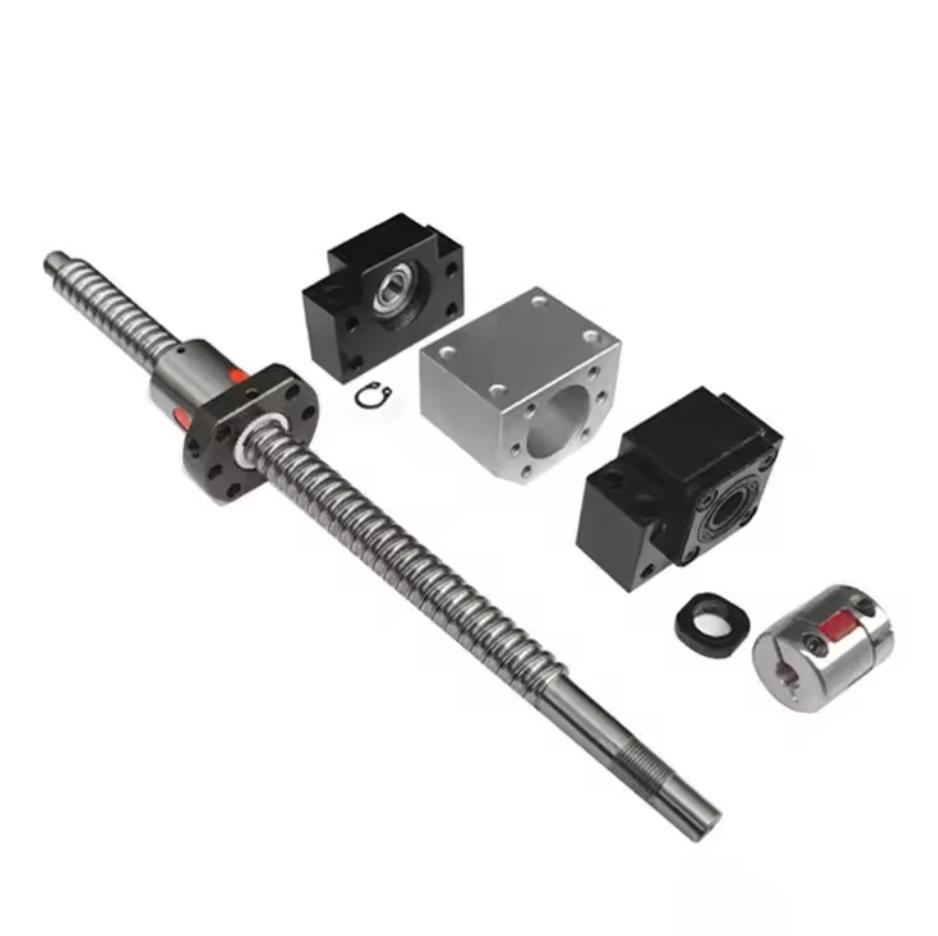

Assembly steps

1. Preparatory work

(1). Ensure that all parts (including ball screws, nuts, support bearings, etc.) are undamaged and meet specification requirements.

(2). Clean the work area and prepare the necessary tools and lubricants.

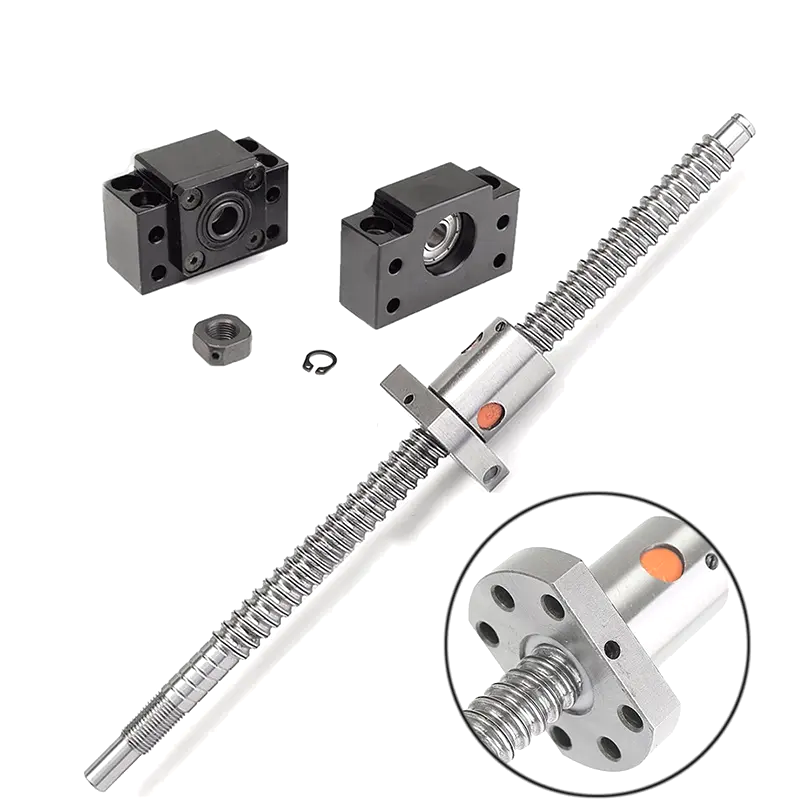

2. Install support bearings

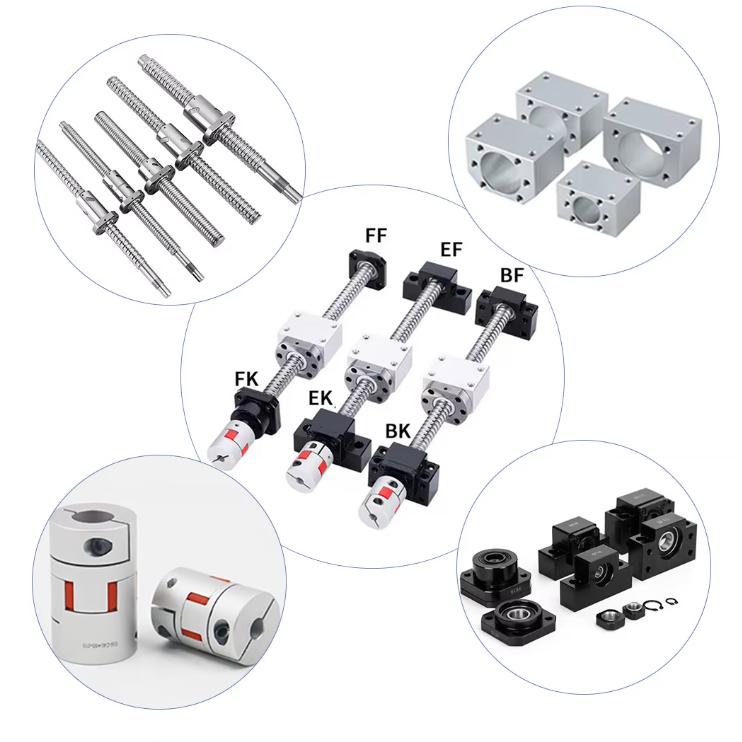

(1). First, install the support bearings at both ends. Ensure that the fit between the bearing housing and the journal meets the design requirements.

(2). Use appropriate tools to gently press or tap the bearings into place, avoiding direct hammering on the outer ring of the bearing to prevent damage.

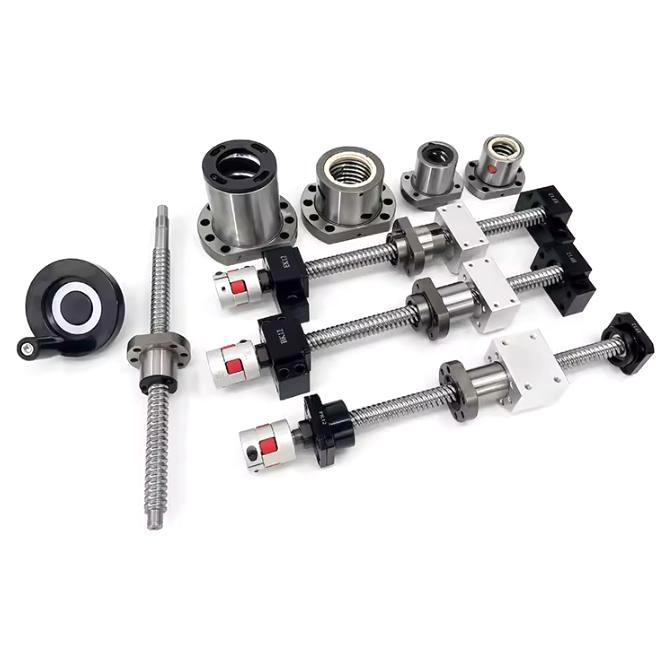

3. Pre-installed ball screw

(1). Pass the ball screw through the support bearing at one end and slowly advance it until the other end also passes through the corresponding support bearing.

(2). Pay attention to maintaining the straightness of the ball screw during installation to prevent bending and deformation.

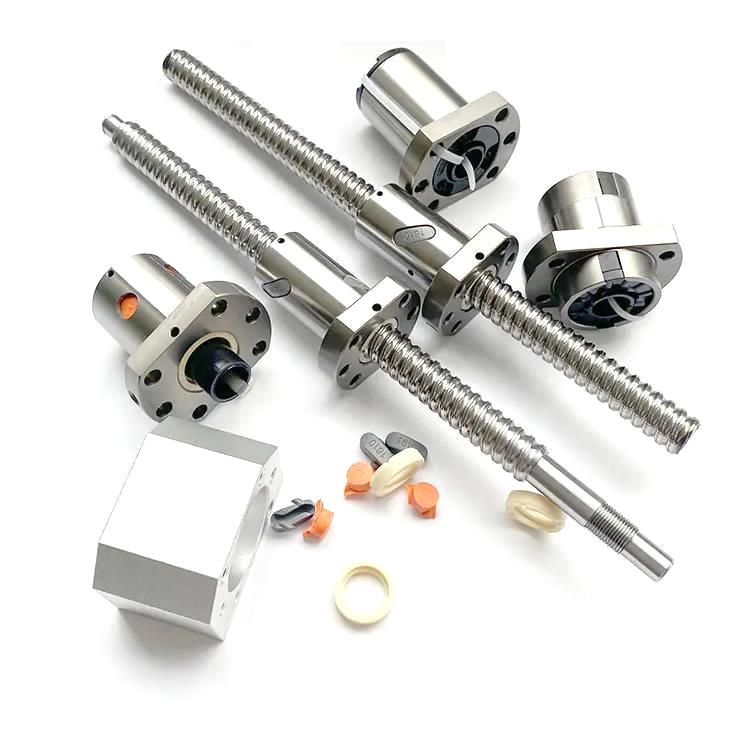

4. Install the nut

(1). Install the pre-prepared nut on the ball screw. Adjust the position of the nut according to specific application requirements to ensure smooth operation.

(2). If there are multiple nuts, they must be precisely aligned and secured as per design specifications.

5. Adjust preload

(1). Adjust the preload between the nut and the ball screw according to the manufacturer's guidelines. Proper preload can eliminate play, improve system stiffness, and enhance positioning accuracy.

(2). Common methods include using shims, locking nuts, or other specialized devices to achieve the desired preload.

6. Lubrication treatment

After the entire assembly is complete, thoroughly lubricate the ball screw. Select an appropriate lubricant and apply it evenly to the contact surfaces.

7. Final check

(1). Check all connection points to ensure they are secure and confirm there is no looseness.

(2). Manually rotate the ball screw to verify smooth operation, and check for any abnormal noise or resistance.

Key points reminder

1. Cleanliness: Maintaining high levels of cleanliness throughout the assembly process is crucial, as even tiny particles can lead to increased wear or system failure.

2. Precision control: Strictly control the assembly precision between each component, especially the straightness of the ball screw and its parallelism with the guide rail.

3. Proper tools: Using the correct tools for assembly, such as specialized installation fixtures, can help operate more safely and reduce damage to parts.

4. Environmental factors: Consider the temperature, humidity, and other conditions at the assembly site, as these may affect material dimensional stability and lubrication effectiveness.

Following the above steps and key points can effectively complete the assembly of the ball screw, ensuring its normal operation and optimal performance.
