What are the common designs and applications of pinion and rack?

Although rack and pinion can use straight or helical cutting teeth,helical teeth are usually preferred because they offer higher load capacity and quieter operation.Helical gears also have very small pitch errors -- in the range of a single micron-- to achieve very low back backlash.

Rack and pinion assemblies with helical teeth provide high load capacity and quiet operation.

Another way to prevent(or reduce)clearance is preload,which can be done with one of two designs:split pinion or dual pinion.The split pinion method uses two pinion halves that engage with opposite tooth surfaces on the same rack.One half of the pinion is driven and the other half is preloaded with an axial spring set to compensate for the clearance.

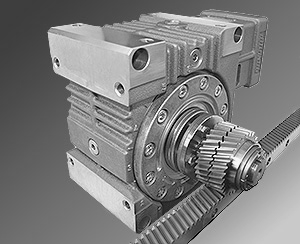

In a split pinion design,one pinion drives the system and the other pinion is preloaded.

Using the double pinion method,one pinion(aka the "master" pinion)is driven and the other(aka the "slave" pinion)is preloaded.Each pinion is driven by a gearbox and motor,and the preload is managed by a controller.

In a two-pinion design,one pinion is preloaded electronically.

A rack and pinion is a drive system,and in most applications,linear guides are needed to support the load.For this purpose,some rack and pinion manufacturers offer rack and pinion configurations that allow the profiled rail to be easily mounted directly onto the rack.

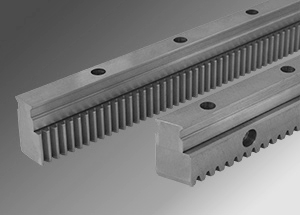

The rack and pinion can be provided with configuration and mounting holes,allowing the profiled guide to be assembled directly onto the rack.

Going a step further,some profiled rail manufacturers offer variants that machining the gear teeth directly onto the profiled rail for a compact and easy to assemble solution.

With rack and pinion machined directly onto the rail structure for extremely compact package.

Many applications use rack and pinion systems because of their extremely long travel capacity.Take the robotic transmission Unit(RTU)as an example.Also known as"7th tracks" because they are used to move 6-axis articulated robots over long distances,RTUs usually contain a rack and pinion system for drivers and a profiled rail(with recirculating ball or recirculating rollers)for guides.The advantage of this combination is that the rack and profiled guide can be connected in segments to achieve an almost infinite stroke length.

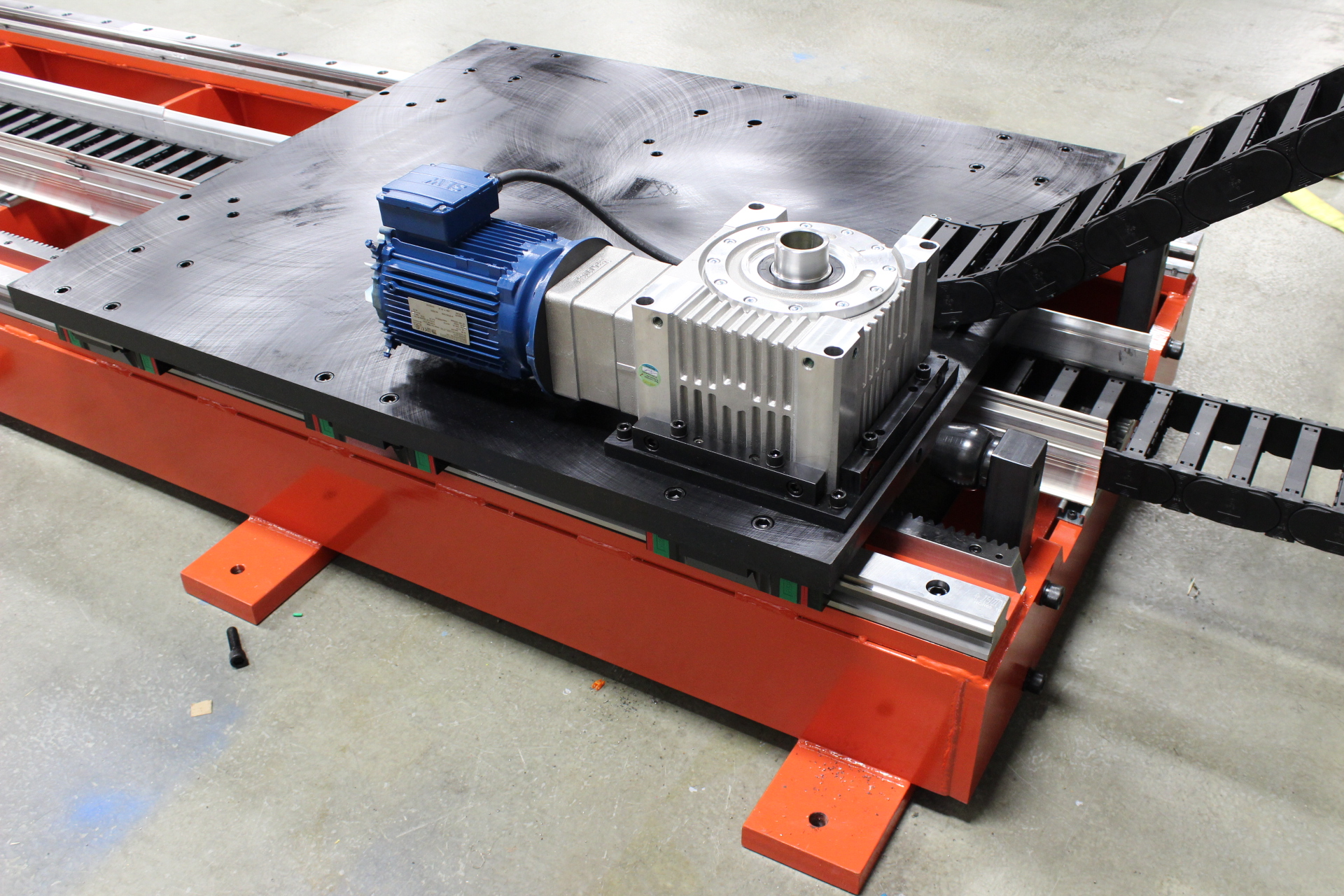

The robot transmission unit usually combines a rack and pinion drive with a profiled linear rail for moving 6-axis robots over long distances.

Gantry robots are another common application of rack and pinion systems.Large gantry frames are common in automotive,machine tool and material handling operations,where heavy objects need to be moved - often over long distances and with high positioning accuracy.

Rack and pinion assemblies are ideal for large gantry systems requiring long travel,high load capacity and good positioning accuracy.
