What Are The Common Mistakes in Installing Linear Guides And Their Corresponding Solutions?

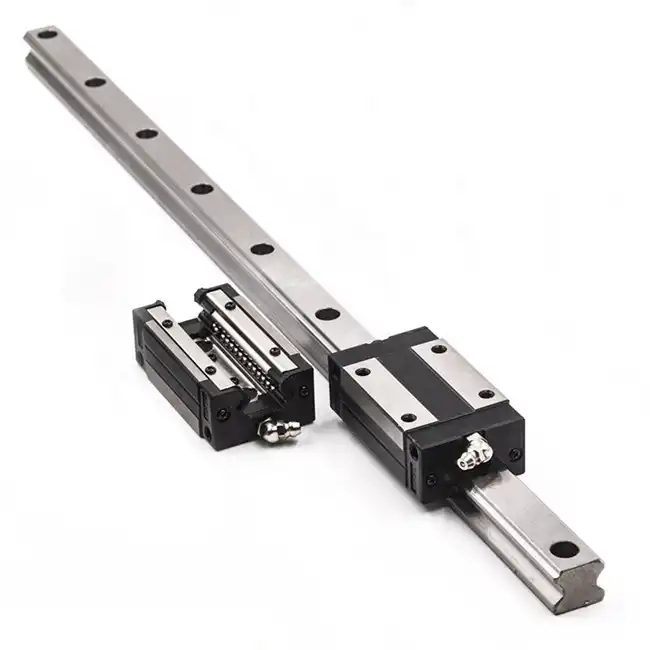

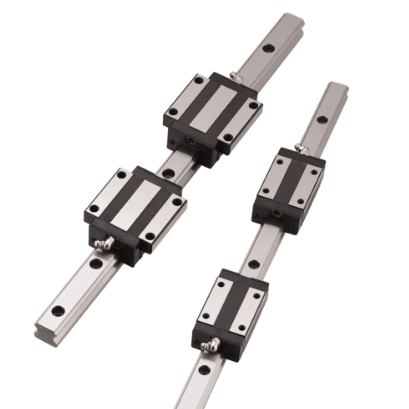

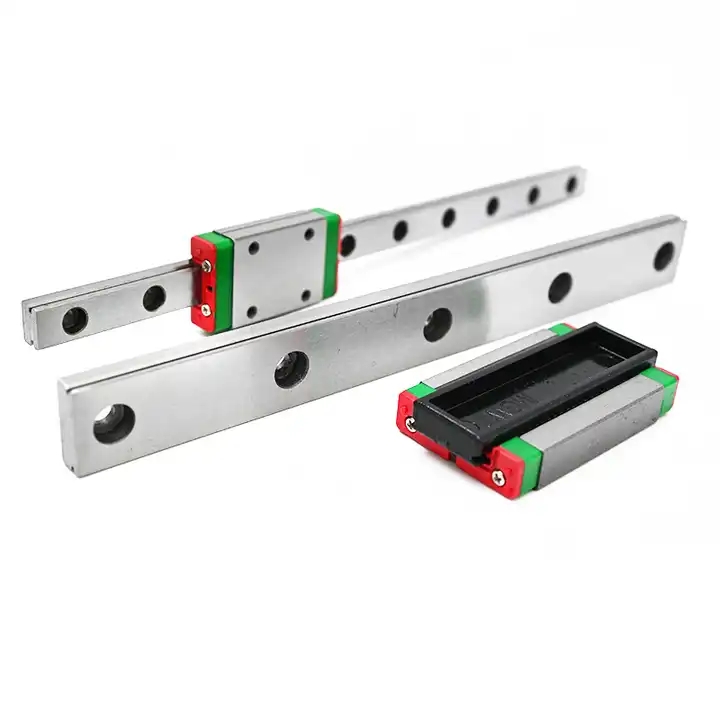

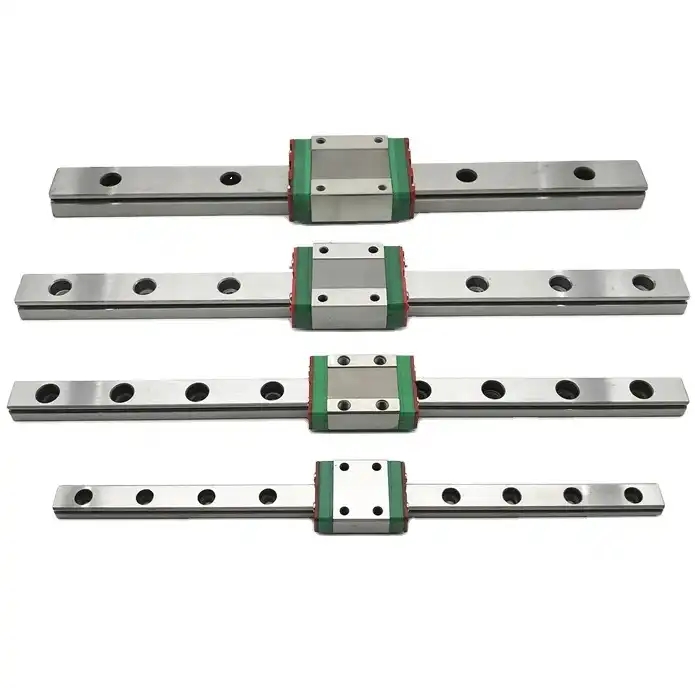

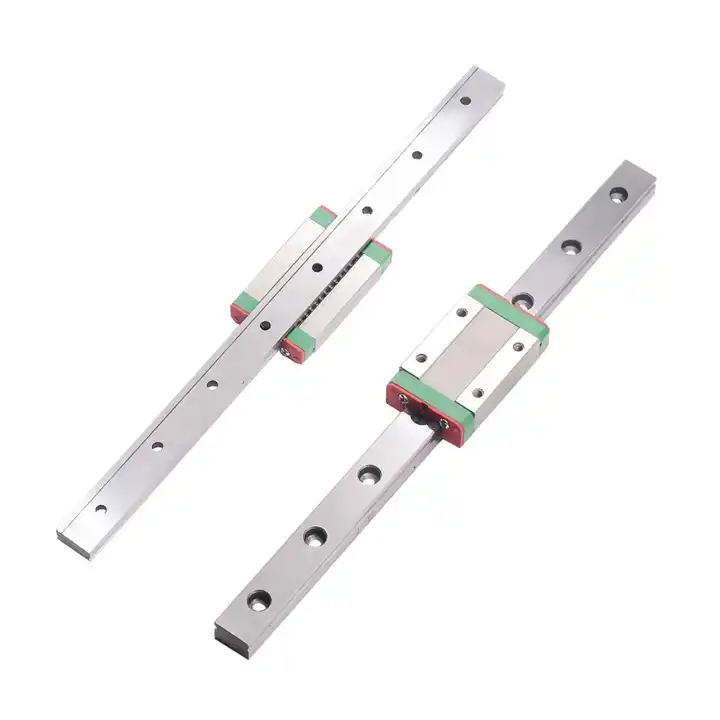

Linear guides, as the core component of precise transmission, their installation accuracy directly affects the lifespan and operational stability of the equipment. This article elaborates on the four common installation mistakes and their professional solutions, helping you avoid potential operational hazards of the equipment.

1. Identifying rail inclination and misalignment phenomena

Horizontal deviation is the most common placement issue, often occurring in scenarios where long-stroke guide rails are installed. When there is a height difference of more than 0.1mm between the base surfaces on either side of the guide rail, the movement trajectory of the slider will exhibit a wavy deviation, resulting in a 40%-60% decrease in repeat positioning accuracy. By using a laser interferometer for detection, it can be found that if the straightness error of the entire guide rail length exceeds 0.05mm/m, there will be obvious abnormal sounds during equipment operation.

Misalignment installation often occurs in scenarios where multiple track segments are spliced. A case study of an automotive welding line shows that when the gap at the end face of the tracks exceeds 0.02mm, the probability of damage to the ball recirculation system increases by three times after 2000 reciprocating movements. When using a feeler gauge to detect the gap at the splice, it is recommended to control the value within 0.01mm and use a stepped splicing process to eliminate cumulative errors.

2. Analysis of the causes of preload imbalance

Improper preload setting is a common installation misconception. When the preload coefficient exceeds ±15% of the rail's nominal value, frictional resistance abnormally increases. Test data shows: over-preloading by 20% raises temperature by 8-10°C, shortening grease life by 30%; under-preloading increases vibration amplitude by 50%, directly affecting surface roughness of the machined parts.

Insufficient flatness of the installation surface is the main cause of preload imbalance. A measurement by a certain machine tool factory showed that when the flatness of the base surface exceeds 0.03mm/m, the actual contact area of the guide rails decreases by 40%, leading to localized stress concentration. It is recommended to use the blue dan coloring method to check the contact rate, ensuring that the contact area between the bottom of the guide rails and the installation surface is ≥85%.

3. Detection technology for foreign object intrusion

Magnetic particle testing can effectively identify micro-cracks in rail grooves. When using fluorescent magnetic suspensions, detection rates for cracks as small as 0.005mm can reach 99%. A case study of semiconductor equipment maintenance showed that metal debris left unremoved during installation caused scratches on the raceway, leading to a decrease in positioning accuracy by 0.02mm within 500 hours.

Ultrasonic cleaning equipment can thoroughly remove installation residues. Comparative experiments show that after three cycles of cleaning, the operating noise of the rails can be reduced by 15 dB(A). It is recommended to adopt a three-stage purification process before rail installation: initial wash to remove visible particles → ultrasonic cavitation cleaning → vacuum drying treatment.

4. Professional calibration and compensation solutions

The laser calibration system can achieve micron-level precision restoration. Using a dual-frequency laser interferometer combined with an electronic level, straightness correction of a 10-meter guide rail can be completed within 4 hours. After applying this solution to a certain injection molding machine retrofit project, the mold closing accuracy improved from ±0.15mm to ±0.03mm.

Temperature compensation technology addresses the impact of environmental changes. The installation of temperature difference compensation coefficients is recommended to be set at 11.7 ppm/°C (for steel tracks). Actual measurement data from a certain constant temperature workshop shows that a compensation system equipped with temperature sensors can control the positioning error caused by thermal deformation within 0.005 mm/10°C.
