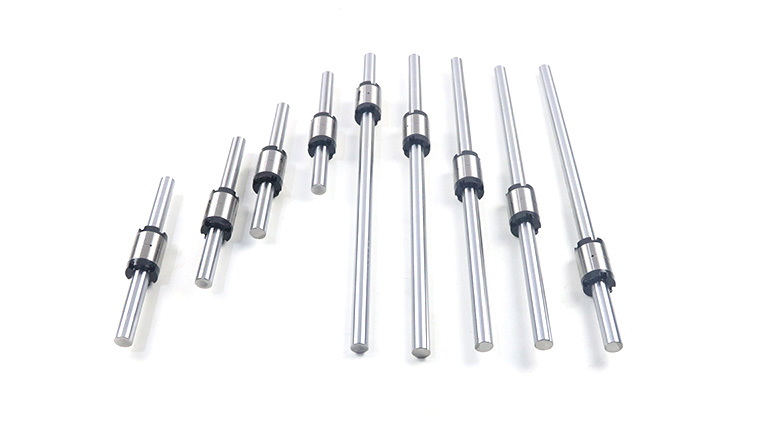

Ball spline gears play a crucial core role in automated equipment. When installing them, several key points need to be noted. Here is the detailed information:
Core role:
1. High-precision linear motion and torque transmission
The ball spline gears achieve high-precision linear motion through the rolling of steel balls between the spline shaft and the nut. They can also reliably transmit torque, suitable for automated equipment that requires controlling both linear displacement and rotational motion, such as robot joints, automatic loaders, laser processing machines, etc.
2. High rigidity and low friction
The design uses angular contact steel balls, with the contact angle typically ranging from 40° to 45°. This can effectively disperse the load, improve rigidity, reduce deformation, and has low rolling friction and low energy loss, suitable for high-speed and high-acceleration motion scenarios.
3. Zero reverse clearance
The pre-pressing design eliminates the clearance in the rotational direction, ensuring motion accuracy and responsiveness. It is suitable for automated equipment with extremely high positioning accuracy, such as semiconductor manufacturing equipment and precision measuring instruments.
Compact integration and easy installation
The spline nuts and supporting bearings often adopt an integrated design, with a compact structure and small space occupation. Installation does not require complex adjustments, making it easy to deploy in space-constrained automated equipment.
4. Installation precautions
4.1 Alignment of the shaft and supporting structure
Ensure that the coaxiality of the spline shaft and the supporting base is ≤ 0.02mm. The processing accuracy and flatness of the supporting bearing seat need to meet the standards to avoid uneven force on the balls due to angle deviation or radial offset, which can affect lifespan and operational stability.
4.2 Installation direction and lubrication
Horizontal installation: The most common, with good lubrication retention, uniform force distribution, suitable for most high-precision transmission scenarios.
Vertical or inclined installation: Special attention should be paid to the supply method of lubricating oil. It is recommended to use grease lubrication and increase lubrication points to avoid loss of lubricant due to gravity. At the same time, a sealing ring, dust cover or protective cover should be configured to reduce the intrusion of dust and foreign objects.
4.3 Fixation and tightening
Use a torque wrench to tighten the flange bolts according to the manufacturer's specified torque. The bolts should be tightened in alternating turns to ensure uniform force on the flange, avoiding deformation of the spline sleeve or operational jamming due to uneven tightening.
4.4 Load and torque balance
If the load is not centered on the spline sleeve, an additional overturning moment will be generated. Larger-sized splines or the use of multiple splines connected in parallel should be selected to balance the torque. At the same time, ensure that the rigidity of the supporting structure is sufficient to prevent deformation of the spline when subjected to force.
4.5 Pre-installation inspection and cleaning
Before installation, use an oil remover to clean the spline shaft, spline sleeve, and installation surface, removing rust oil. Check that the surface of the spline shaft has no scratches, and the balls of the spline sleeve have no detachment. Ensure that the components are intact.
4.6 Test run and debugging
After installation, perform a no-load test run, manually rotate the spline shaft and make linear reciprocating motion. Feel for uniform resistance without jamming. Use a feeler gauge to measure the clearance between the spline sleeve and the connecting component to ensure no radial additional force. Then gradually increase the load to a certain proportion of the rated load to detect the transmission efficiency and operation status of the spline pair.
