What are the functions and advantages of ball screw end support?

Views: 3     Author: Site Editor     Publish Time: 2023-07-31      Origin: Site

What are the functions and advantages of ball screw end support?

Ball screw end supports play a crucial role in the functioning of ball screws. They provide stability and alignment to the ball screw assembly, ensuring smooth and accurate linear motion. Here are some of the advantages and roles of ball screw end supports:

1.Support and alignment:
Ball screw end supports hold the ball screw in place and prevent any misalignment or deflection. They provide a stable platform for the ball screw to operate, ensuring accurate and precise linear motion.

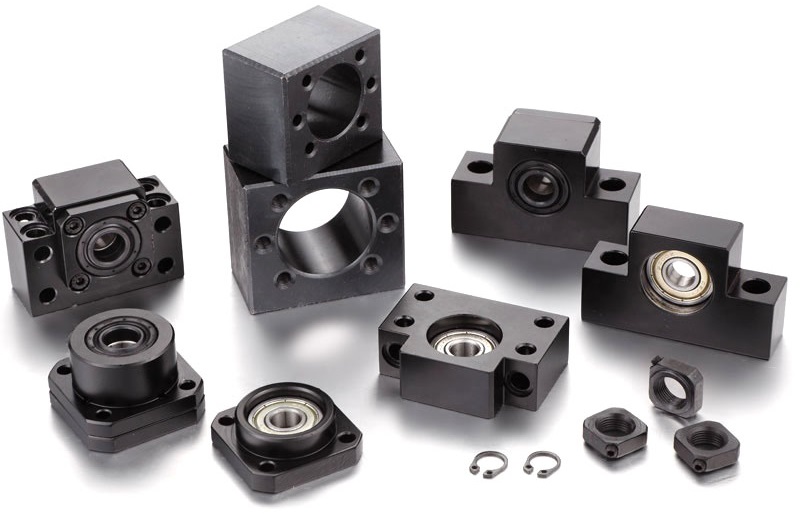

End support

2.Load distribution:Ball screw end supports help distribute the load evenly along the length of the ball screw. This prevents excessive stress on any particular section of the ball screw, ensuring its longevity and reliability.

bearing support (5)

3.Bearing support:Ball screw end supports also house the bearings that support the ball screw shaft. These bearings allow the smooth rotation of the screw, reducing friction and wear. They also help absorb any axial or radial forces, ensuring the ball screw operates efficiently.

high quality support unit

4.Easy installation:Ball screw end supports are designed to be easily installed and adjusted. They typically have mounting holes and adjustment features that allow for quick and precise positioning of the ball screw assembly.

5.Increased rigidity:By providing additional support and stability, ball screw end supports increase the rigidity of the ball screw assembly. This helps minimize any bending or deflection during operation, resulting in improved accuracy and repeatability.

ALM support unit

6.Noise reduction:The use of ball screw end supports can help reduce noise and vibration during operation. The added stability and alignment provided by the end supports minimize any unwanted movement or oscillation, resulting in quieter operation.

Overall, ball screw end supports are essential components in ball screw assemblies. They provide stability, alignment, load distribution, and bearing support, resulting in improved performance, accuracy, and longevity of the ball screw system.
