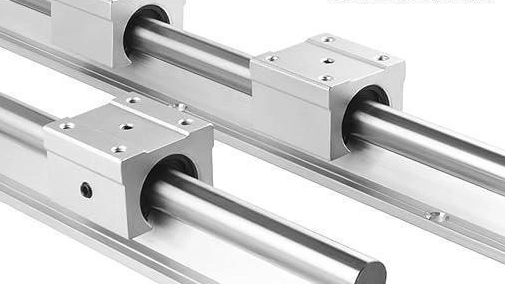

What Are The Functions of Linear Guide Shafts?

Linear shafts are fundamental guiding components in automated equipment, precision machinery, and industrial drive systems. Primarily used in conjunction with linear bearings, they enable smooth linear motion. Their core functions can be summarized in four key aspects:

1. Precision Guidance (Core Function)

Linear shafts provide a stable, low-friction sliding path for moving parts such as sliders or robotic arms, ensuring accurate alignment and smooth operation during high-speed reciprocating movements. They form the foundation for achieving precise linear motion.

2. Support and Load-Bearing Capacity

With excellent rigidity and resistance to bending, linear shafts can withstand operational loads—including radial and impact loads—on mechanical components. In XYZ-axis structures, cantilever configurations, and heavy-duty transmission applications, they play a critical role in supporting the system, preventing misalignment or deformation during operation.

3. Torque and Motion Transmission

As actuators in linear motion systems, linear shafts work together with linear bearings to convert rotational motion or power into linear movement. This enables precise positioning, gripping, lifting, translation, and other operations, thereby enhancing the overall performance of the equipment.

4. Energy Efficiency and Noise Reduction

The surface of linear shafts undergoes precision grinding and hardening treatments, resulting in high surface finish and minimal friction. This reduces overall system resistance, allowing smoother motion, lower energy consumption, and reduced vibration and noise during operation.

Note: The specific roles of linear shafts may vary depending on application scenarios. For example, in automated assembly lines, their primary function emphasizes precision guidance; in CNC machine tools, support and load-bearing capacity are paramount; and in industrial robots, motion transmission takes precedence.
