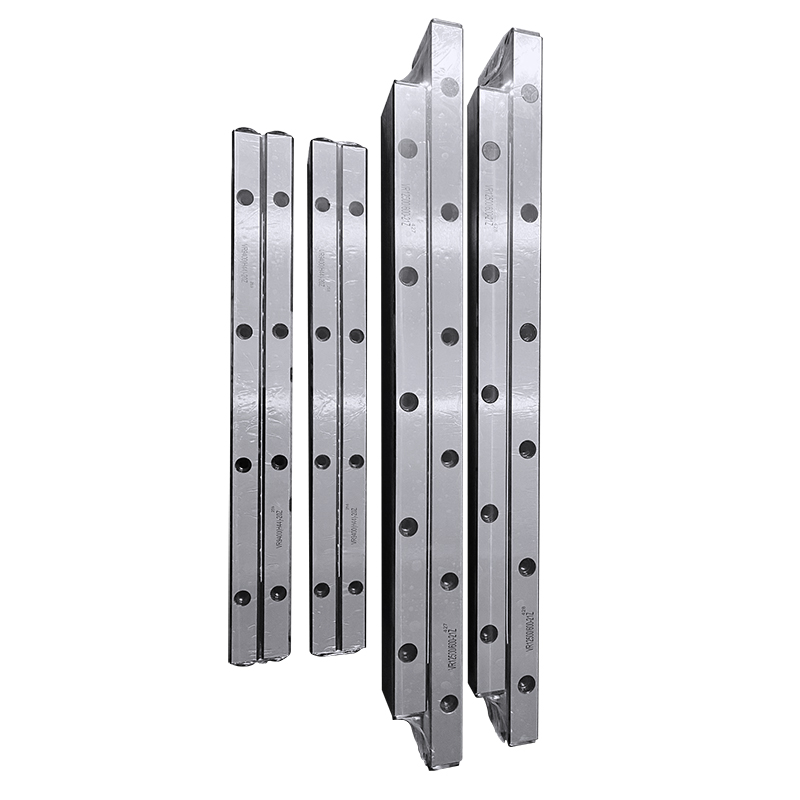

What Are The Key Details for Extending The Service Life of The Crossed Roller Guide Rails?

To extend the service life of the cross roller guide rail, it is necessary to conduct meticulous maintenance from five aspects: daily cleaning, lubrication and maintenance, operation norms, environmental protection, and regular inspection. The specific details are as follows:

1. Daily cleaning and anti-pollution (anti-dust and anti-corrosion)

1.1. Regular cleaning: Conduct basic cleaning weekly and deep cleaning monthly. Use lint-free cloths or soft-bristled brushes combined with neutral cleaners to clean the surface of the guide rail and the slider, remove dust, metal shavings, etc., and avoid using hard-bristled brushes or corrosive solvents to prevent scratching the surface coating of the guide rail.

1.2. Dust protection: When operating in a dusty environment, add dust covers (such as labyrinth-type dust covers or contact-type sealing gaskets) to prevent impurities from entering the guide rail and causing wear.

1.3. Rust prevention: Avoid direct contact with the guide rail surface with bare hands (human sweat will damage the rust layer), and it is recommended to wear gloves; when the equipment is not in use for a long time, thoroughly clean and apply rust inhibitor, seal with a dust cover, and store in a dry and ventilated place.

2. Precise lubrication and maintenance (reduction of friction and cooling)

2.1. Select the right lubricant: Choose the appropriate lubricant based on the working conditions. For low-speed and light-load conditions, use high-quality lithium-based grease; for high-speed or high-temperature conditions, use lubricating oil of the appropriate viscosity.

2.2. Standardized lubrication: After cleaning, apply lubricant evenly on the contact surface of the guide rail and slider (thickness about 0.1-0.2mm) or inject lubricating oil through the oil injection hole to ensure that the rollers are fully lubricated. Avoid over-lubrication which may cause dust accumulation.

2.3. Periodic control: In standard conditions, replenish once every 3 months, and monthly for high-frequency and long-stroke operation. When the cumulative running distance reaches 1000 kilometers or if the lubricating oil becomes old, it is necessary to completely replace the lubricant and clean the oil circuit.

3. Standard operation and installation (reduction of impact and preservation of accuracy)

3.1. Avoid overloading and impact: Strictly follow the rated load and operating speed, avoid overloading, sudden acceleration or sudden stop, and reduce the impact on the rollers and guide rail; avoid bearing eccentric force, and add auxiliary supports if necessary.

3.2. Standard installation and tightening: Avoid directly hitting the guide rail surface during installation. Use specialized tools; after installation, regularly check and tighten the fixing bolts of the guide rail to prevent vibration or accuracy decline due to loosening; ensure that the installation parallelism and straightness of the guide rail meet the equipment requirements, and avoid increased additional torque due to improper installation clearance.

4. Regular inspection and condition monitoring (preventive maintenance)

4.1. Wear and accuracy monitoring: Regularly check the wear condition of the guide rail surface (such as scratches, gaps). If the gap is too large or the wear is severe, adjust the preload or replace the worn components in time; regularly use precision measuring tools (such as micrometers) to detect the straightness and parallelism of the guide rail, and calibrate if the accuracy exceeds the standard.

4.2. Operation status monitoring: Listen to the sound of the guide rail movement during operation. If there is abnormal noise, jamming or friction sound, stop the machine in time for troubleshooting (mostly due to impurity intrusion or insufficient lubrication); monitor the surface temperature of the guide rail. Normally, it should be ≤ 60℃. If overheating is detected, investigate abnormal preload or internal wear. By implementing the above details, it is possible to effectively reduce abnormal wear of the guide rail, maintain high accuracy of the equipment, and significantly extend the service life of the cross roller guide rail.
