What Are The Maintenance Methods for Crossed Roller Guides?

Cross roller guideway are an important component of precision machinery, and their stability and accuracy directly affect the overall performance of the equipment. Therefore, proper maintenance and care of cross roller guide are crucial. Below are detailed methods for maintaining and caring for cross roller guideway.

Daily maintenance

01. Cleaning

Regularly clean dust, oil, and other impurities from the surface of the cross roller guideway to keep them clean. During cleaning, use specialized cleaning cloths or soft paper and avoid using chemical cleaners that could corrode the rail surfaces.

02. Lubrication

Based on the equipment usage and the material of the rails, select an appropriate lubricant or grease and regularly lubricate the crossed roller guides. During lubrication, ensure that the lubricant or grease is evenly applied to the rail surface to form a thin oil film, reducing friction and wear.

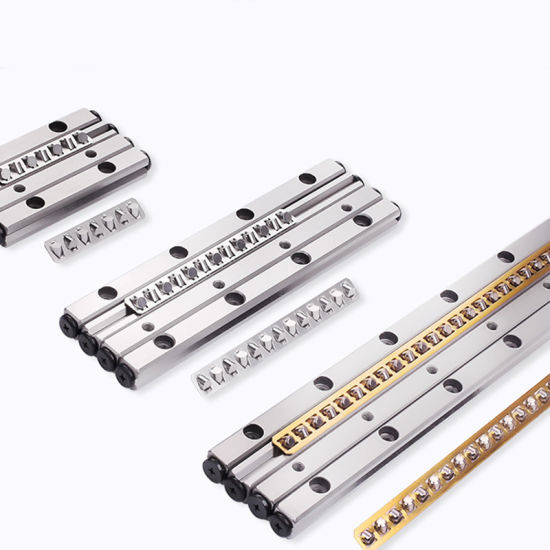

cross roller guide

cross roller guide cage

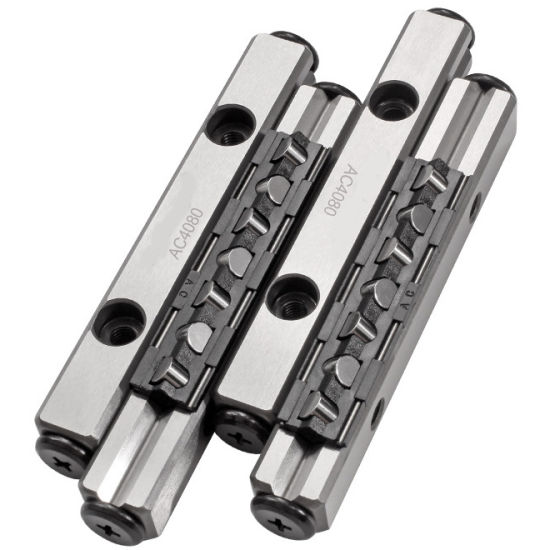

cross roller guide

Regular inspections

01. Inspect fasteners

Regularly check the fasteners of the crossed roller guide, such as screws and nuts, to ensure they are securely tightened with no signs of loosening. If any looseness is detected, tighten or replace the fasteners promptly.

02. Check the guide rail accuracy

Use professional measuring tools to regularly inspect the straightness, parallelism, and other precision indicators of the crossed guide rails, ensuring they meet the equipment's usage requirements. If any deviations from the required precision are found, adjustments or replacements should be made promptly.

Preventive maintenance

01. Dustproof and dirt-resistant

Install dust covers or dust cloths around the equipment to reduce the erosion of cross rails by dust and dirt. Additionally, regularly clean and replace the dust covers or dust cloths.

02. Waterproof and moisture-proof

Ensure that the equipment is kept in a dry, well-ventilated environment to prevent moisture or water from affecting the cross tracks. In humid conditions, consider using desiccants or heaters to reduce humidity.

cross roller guide cage

cross roller guide

cross roller guide

Repair and replacement

01. Repair

When cross guides show slight wear or damage, they should be repaired promptly. During repair, choose an appropriate restoration method based on the wear condition, such as grinding or polishing, to restore the guide's precision and performance.

02. Replace

When cross roller guides are severely worn or damaged and cannot be repaired, they should be replaced promptly. During replacement, choose new guides that match the equipment and install and debug them according to the correct method.
