What Is The Function of A Coupling?

The role of couplings: Couplings play a very crucial role in mechanical transmission systems, with their main functions summarized as follows:

1.Transmit torque and motion

The most fundamental function of a coupling is to transmit torque and rotational motion between two shafts, ensuring that power is smoothly transferred from the driving end to the driven end, thus guaranteeing the normal operation of the machinery.

2.Axial misalignment compensation

Due to manufacturing, installation errors, or factors such as thermal expansion and vibration during operation, there may be axial, radial, or angular offsets between the two shafts. Coupling can compensate for these offsets, ensuring normal connection and power transmission between the two shafts.

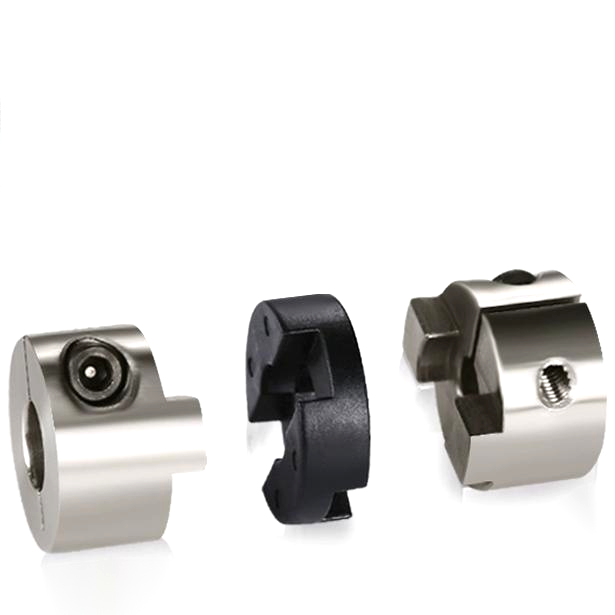

Coupling

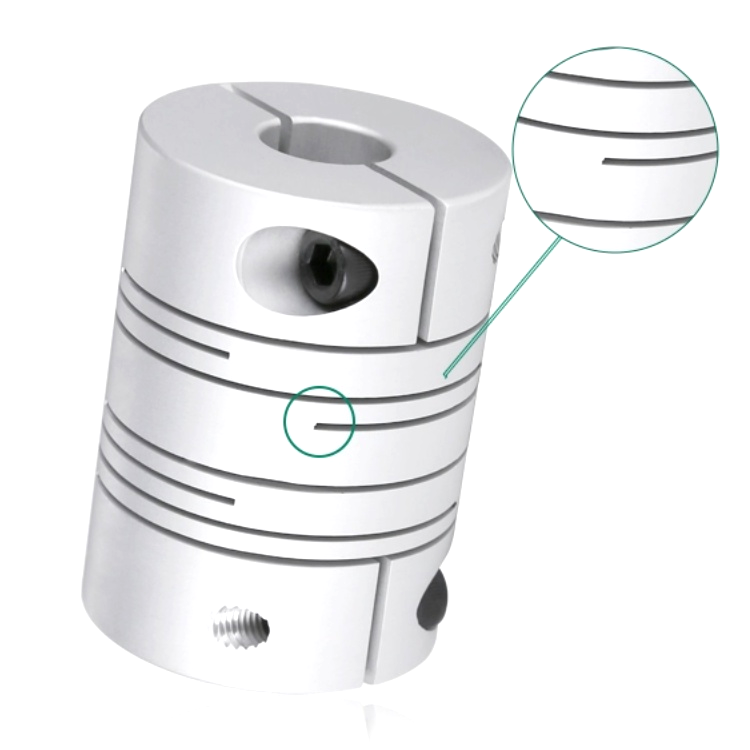

Coupling Details

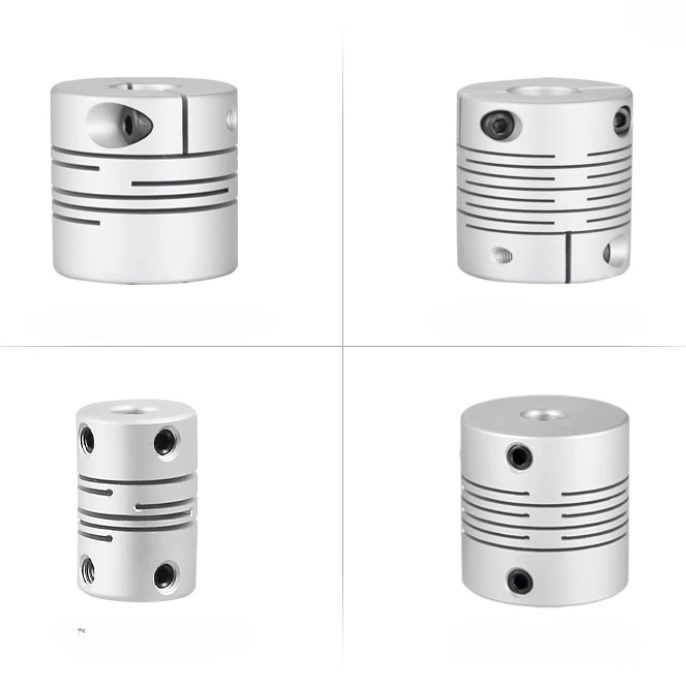

Slit Coupling

3. Absorbing vibrations and shocks

In mechanical drives, couplings can absorb vibrations and shocks caused by load changes, mechanical impacts, or imbalances, protecting other components in the drive system from damage and enhancing the overall stability and lifespan of the system.

4. Overload protection

Some couplings are designed with safety devices that automatically disconnect when the transmitted torque exceeds a predetermined value, preventing critical components in the drive system from being damaged by overload, thus providing overload protection.

5. Simplifies maintenance and repairs

The use of couplings makes the disassembly and assembly of the drive system more convenient, allowing for the replacement or repair of couplings without having to completely dismantle the entire system, thus improving maintenance efficiency.

SUS304 Coupling

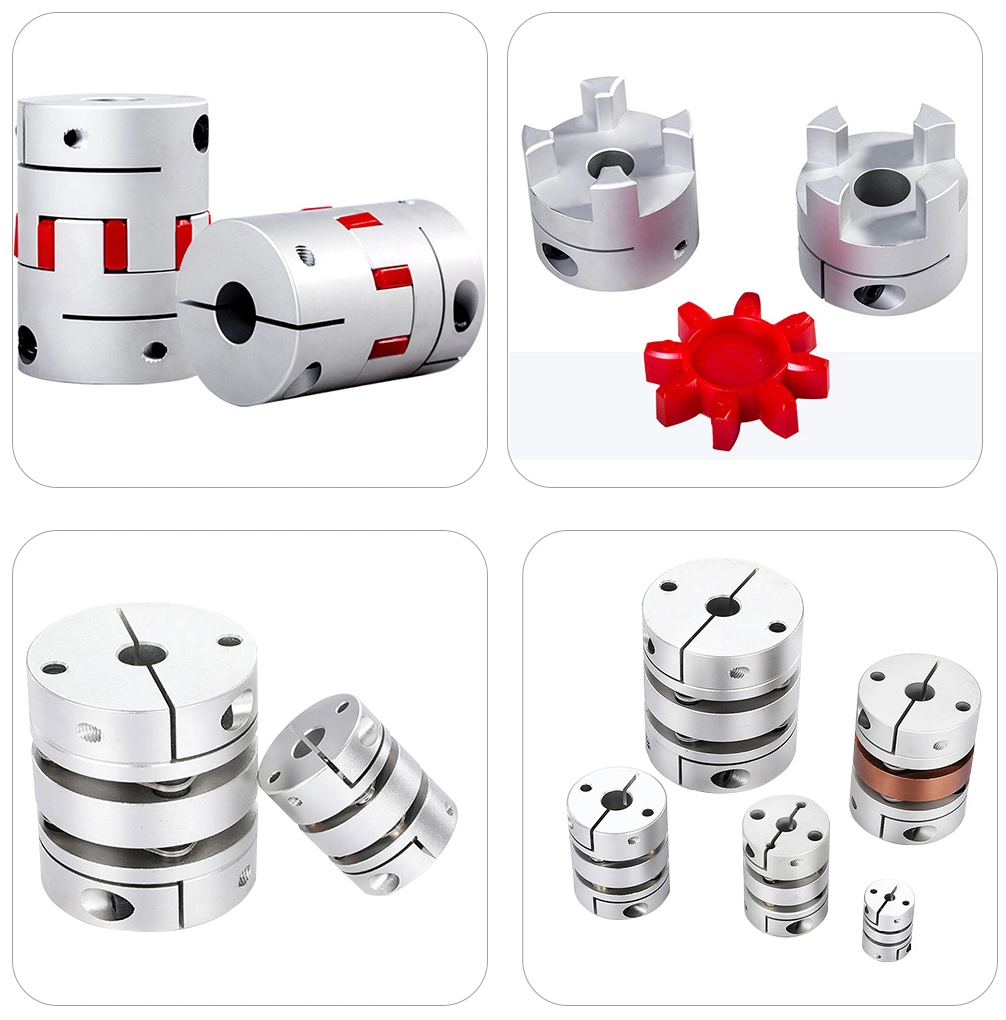

Coupling

Aluminum Coupling

6. Enhance dynamic performance

For high-speed rotating mechanical systems, couplings can also improve the dynamic performance of the shaft system, reduce vibration and noise, and increase transmission efficiency and accuracy.

Depending on different usage environments and operating conditions, couplings can be classified into various types, each with its specific performance characteristics and suitable applications. When selecting a coupling, it is necessary to determine the most appropriate type based on specific application requirements and operating conditions.
