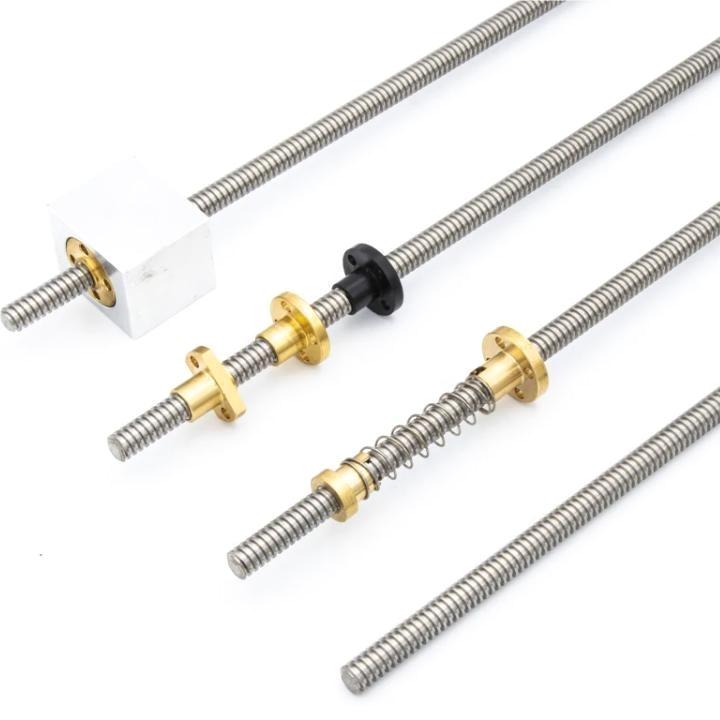

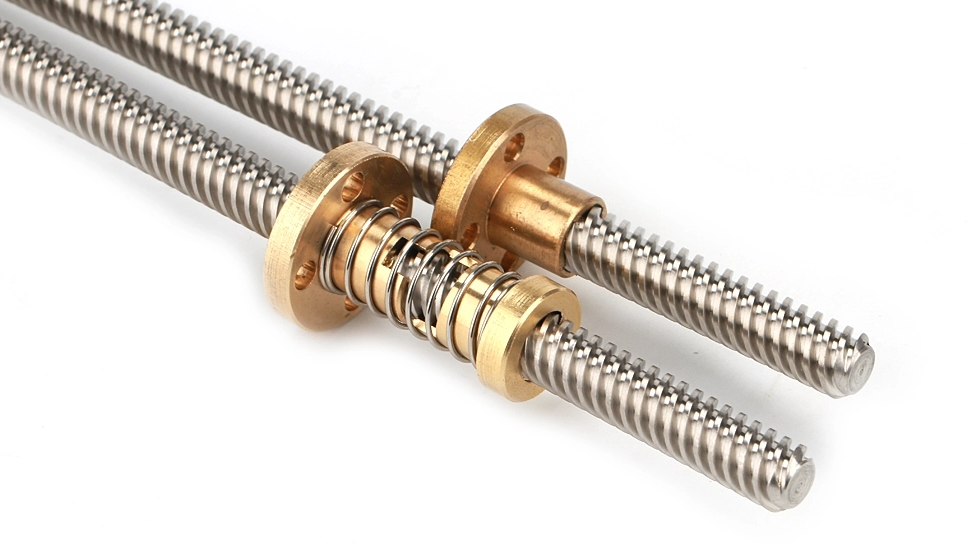

What Is The Function of The Trapezoidal Screw Anti-backlash Nut?

The core function of the trapezoidal screw backlash elimination nut is to eliminate or reduce the axial clearance between the trapezoidal screw and the nut, thereby improving the accuracy, stiffness, and stability of mechanical transmission. Its specific functions are as follows:

1. Enhance positioning and repeat positioning accuracy

Due to processing errors and wear, there will be clearance between the trapezoidal screw and the nut during reciprocating motion. When switching directions, the clearance will cause "null travel" errors. The backlash elimination nut eliminates the clearance through preload, enabling "zero clearance" or "micro clearance" in the transmission, ensuring that the system achieves high absolute positioning accuracy and repeat positioning accuracy, meeting the requirements for precise positioning.

2. Reduce reverse clearance and eliminate null travel

During reverse motion, the clearance will cause the moving components to produce "rebound" and collisions, affecting the smoothness of the motion and generating noise. The backlash elimination nut eliminates the null travel through preload, making the reverse motion response more rapid and smooth, and reducing mechanical impact.

3. Compensate for wear and maintain accuracy and stability

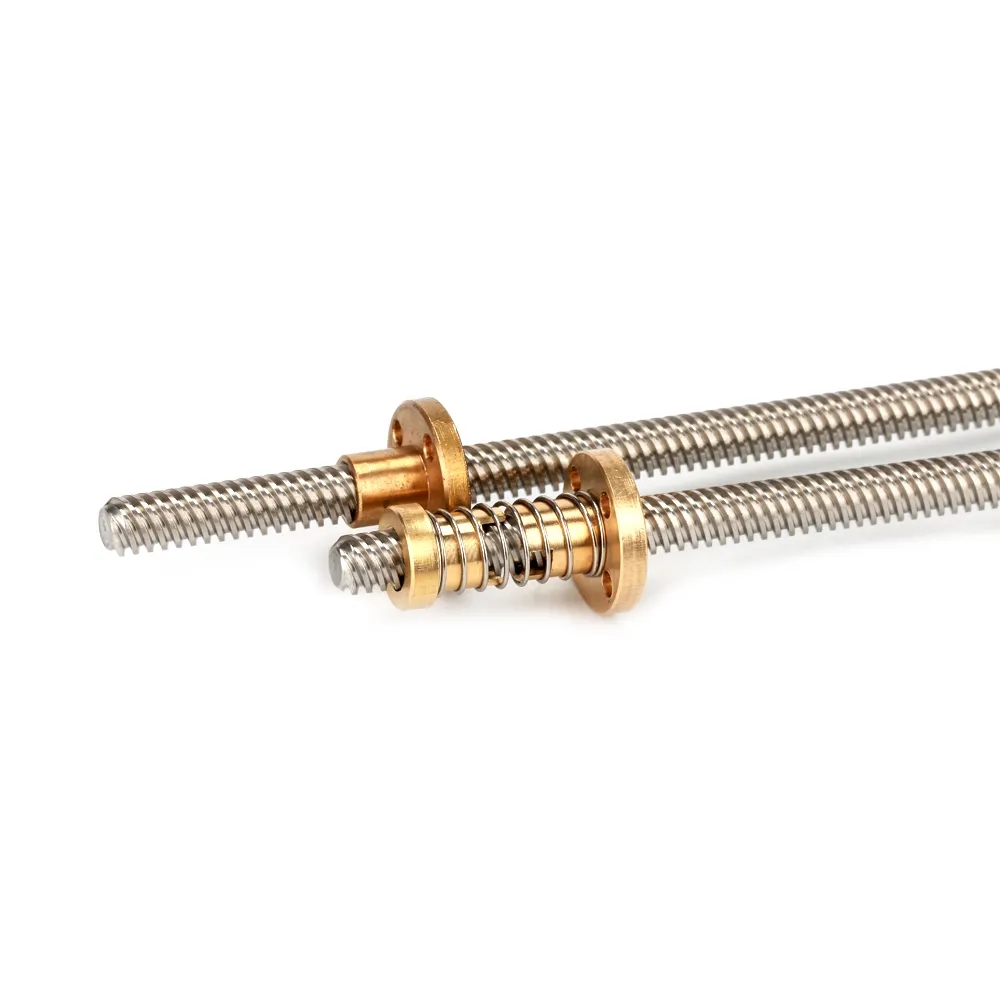

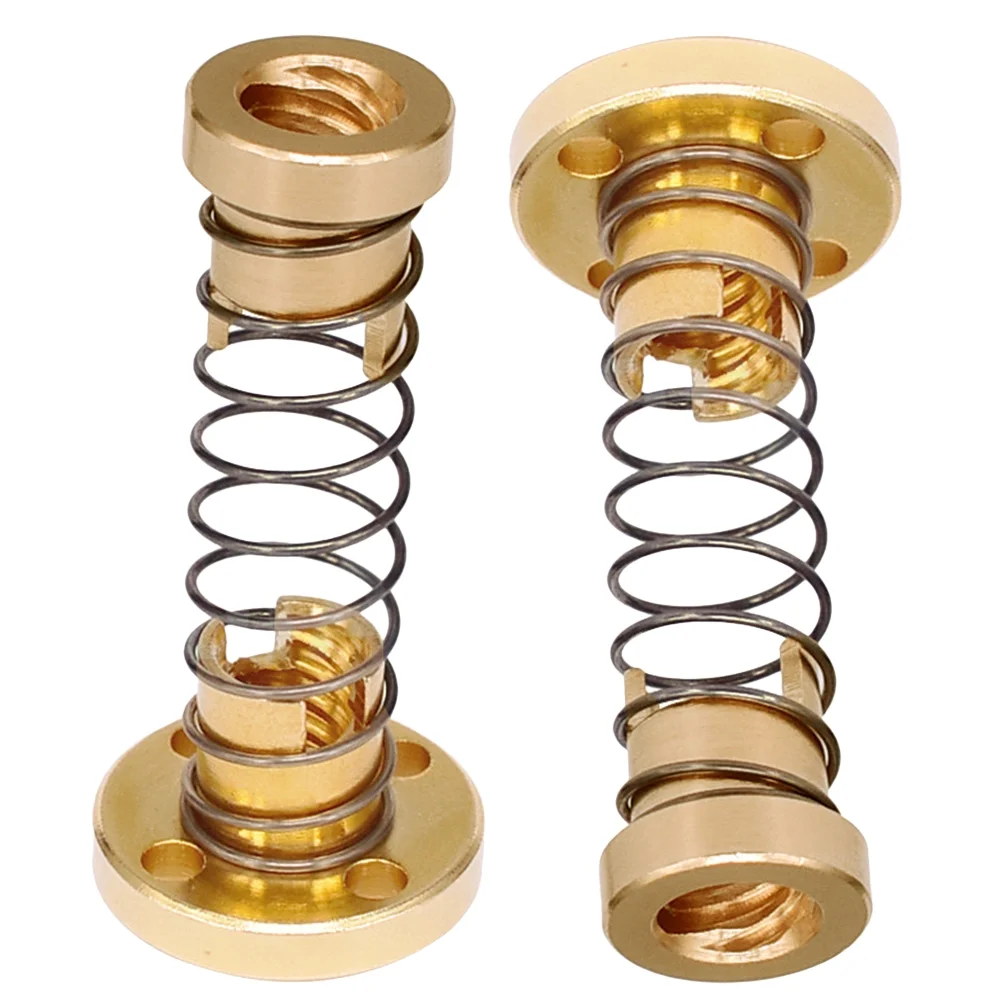

Over time, the trapezoidal screw will gradually increase its clearance due to wear. Ordinary nuts are difficult to automatically compensate for this, resulting in a decrease in positioning accuracy. The backlash elimination nut (using spring preload, double nut preload, etc.) can automatically compensate for the clearance through elastic elements after wear, maintaining the preload force, extending the equipment's service life, and reducing maintenance frequency.

4. Improve system stiffness and dynamic response

After eliminating the clearance, the fit between the nut and the screw becomes more compact, effectively enhancing the axial stiffness of the transmission system, reducing elastic deformation caused by load changes or acceleration/deceleration, and enabling the mechanical system to more accurately follow control instructions, improving dynamic response performance.

5. Reduce motion errors and noise

After eliminating the clearance, the collisions and "creeping" of the moving components during reverse motion are avoided, reducing mechanical operating noise, and minimizing motion errors caused by clearance accumulation, making the transmission more stable. Note: The backlash elimination nut may increase certain friction resistance or have higher requirements for preload force. The selection of preload method (such as axial preload, radial preload) and preload force size should be reasonable based on actual conditions (such as load size, accuracy requirements).
