| Quantity: | |
|---|---|
MTF3-S1-75-A
8501109990
More Safe Magnetic-track-free Linear Motor for 3D Printer.The stator of magnetic-track-free linear motor does not use magnets,but the powder magnetic conductive materials developed in recent years.The material has high permeability,high saturation flux and is easy to be manufactured by metallurgical die casting.

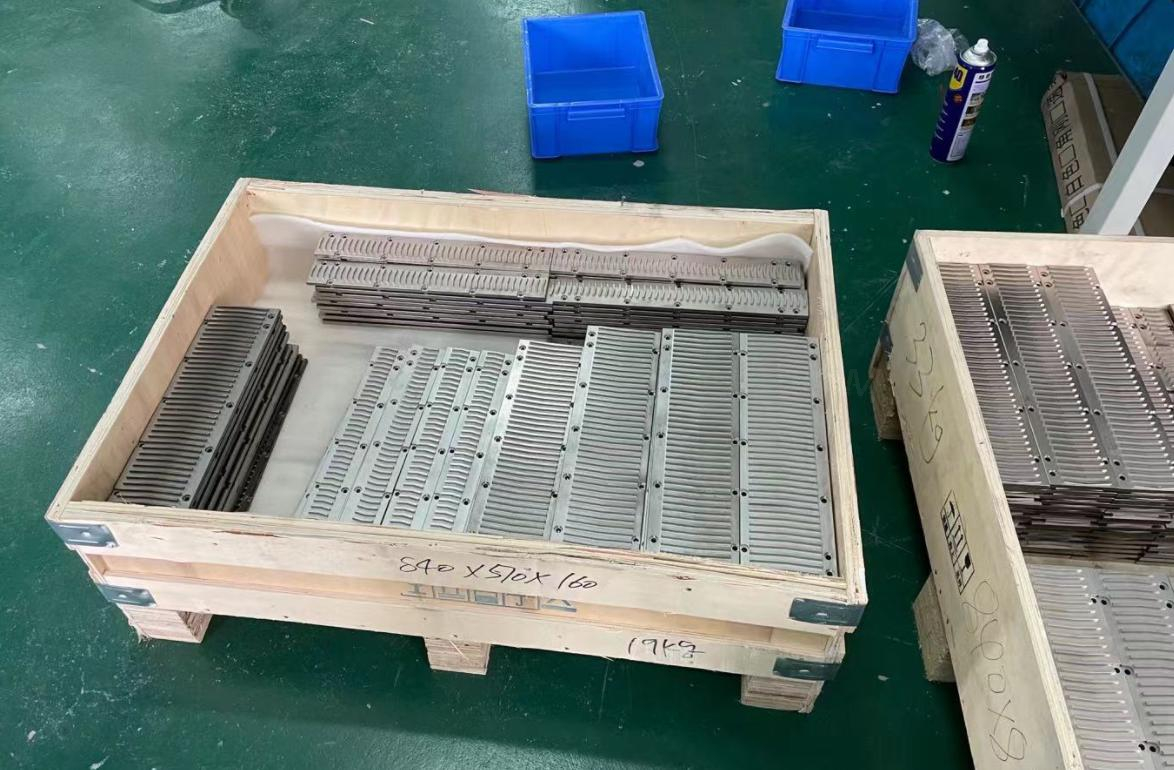

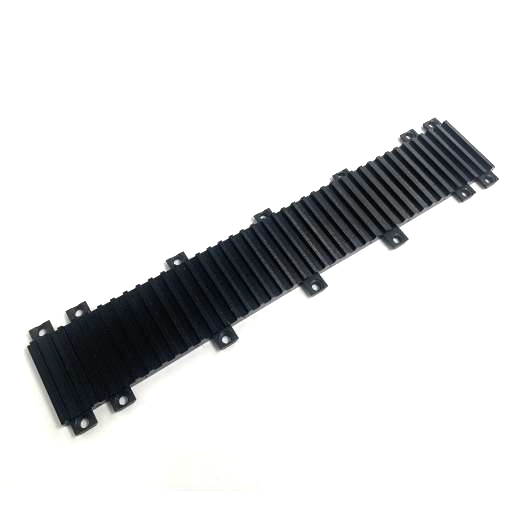

MTF Linear Motor stator

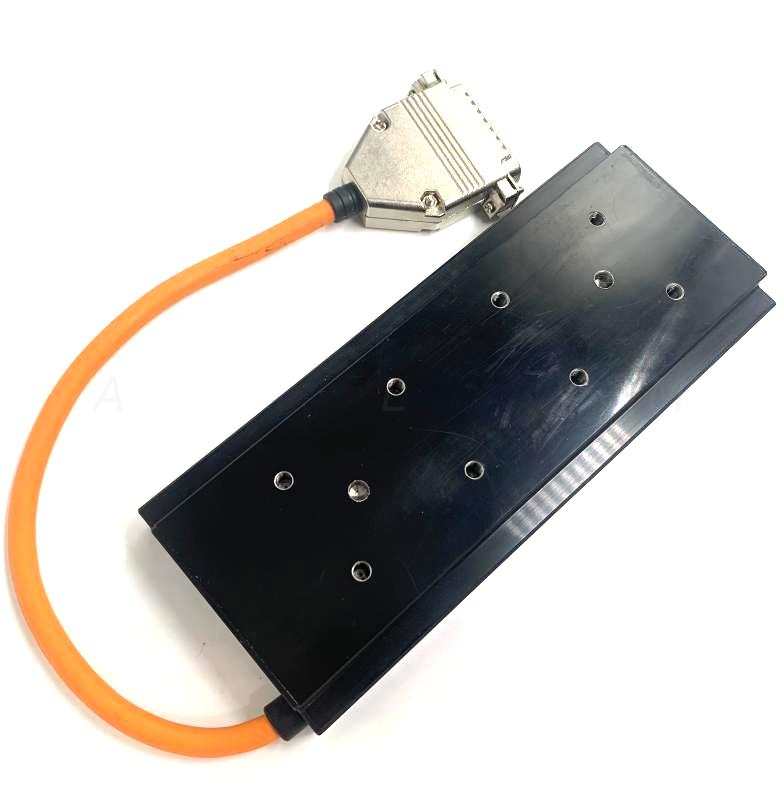

MTF linearr motor mover
MTF linear motor put the magnet inside the mover,and when the mover moves,the corresponding magnet moves.That is,the linear motor will have the excitation of the magnet with movement,the magnet movement to which part,which part of the electromagnetic force.Thus,as the rotary permanent magnet synchronous motor,the magnet utilization rate reaches 100%,no extra magnet is exposed.
As a result,the cost of linear motor mudule is greatly reduced and safety is improved.Due to much less amount of magnets applied compared to conventional linear motors,so MTF linear motor price is much more attractive can bring at least 70% COST SAVING.The longer the stroke,the more cost-effective.

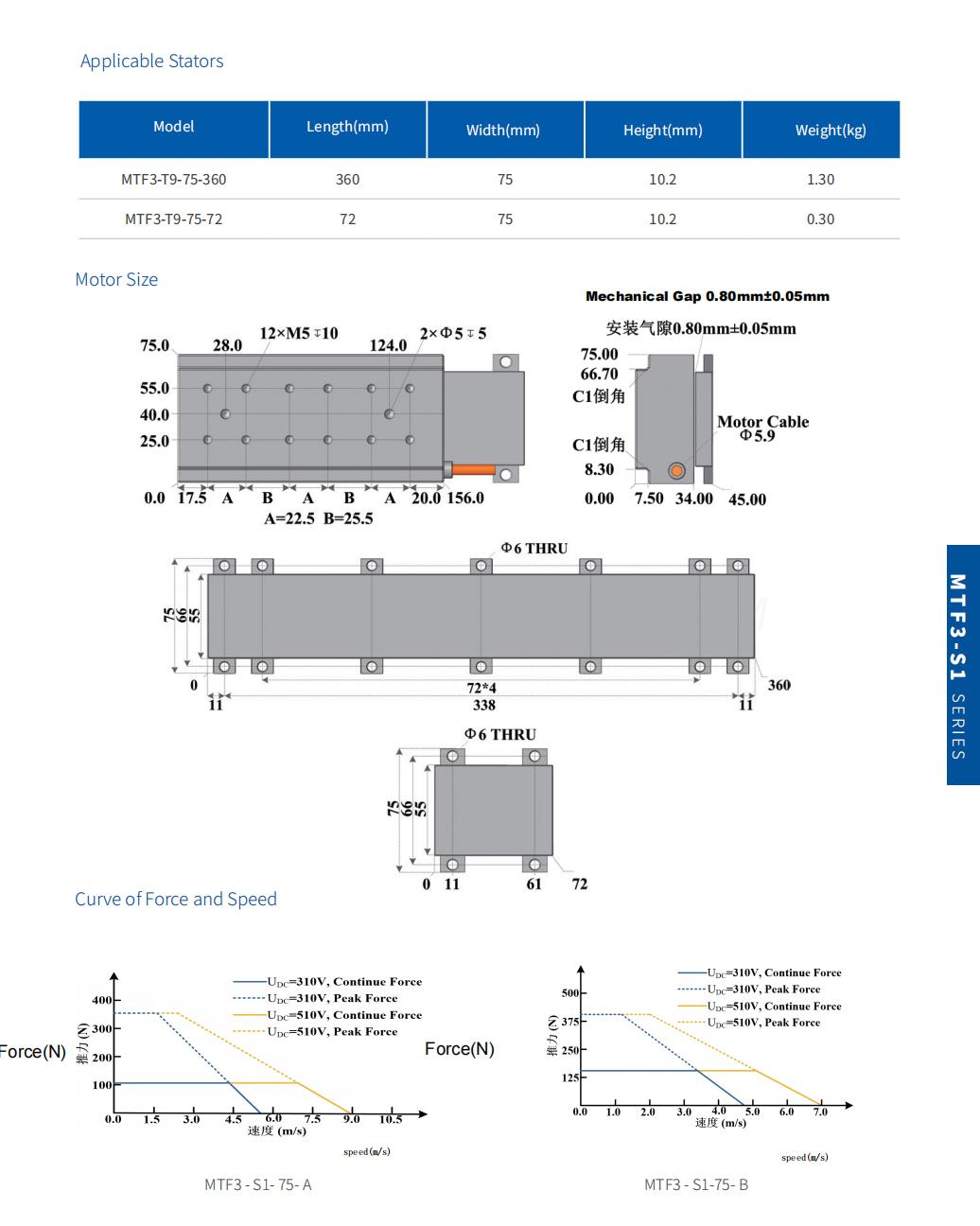

●MTF3-S1-75-A(B) Linear Motor Parameter
●MTF linear motor advantages
| MORE SAFE | No magnetic field in stator,easier for assembling,much lower risk for operators |
| MUCH SMALLER ATTRACTION FORCE | About ⅓ of the conventional linear motor attraction force can reduce the friction and cogging force significantly,thus to increase the life expectancy and reduce the operating noise. |
| MUCH SMALLER COGGING FORCE | Benefited from the low attraction force and the specialized optimizing design,MTF-LM can obtain the extremely low cogging force. |
| MORE ADAPTIVE | With low requirement for the ingress protection,and reduce the EMI grade obviously |
| EASIER FOR PROTECTION | Not easy to attract the sundries and ashes into the motor,easier for protection |
| HIGHER COST-EFFECTIVE | Benefited from the rare-earth material saving,MTF is trying to provide the most cost-effective products for customers. |

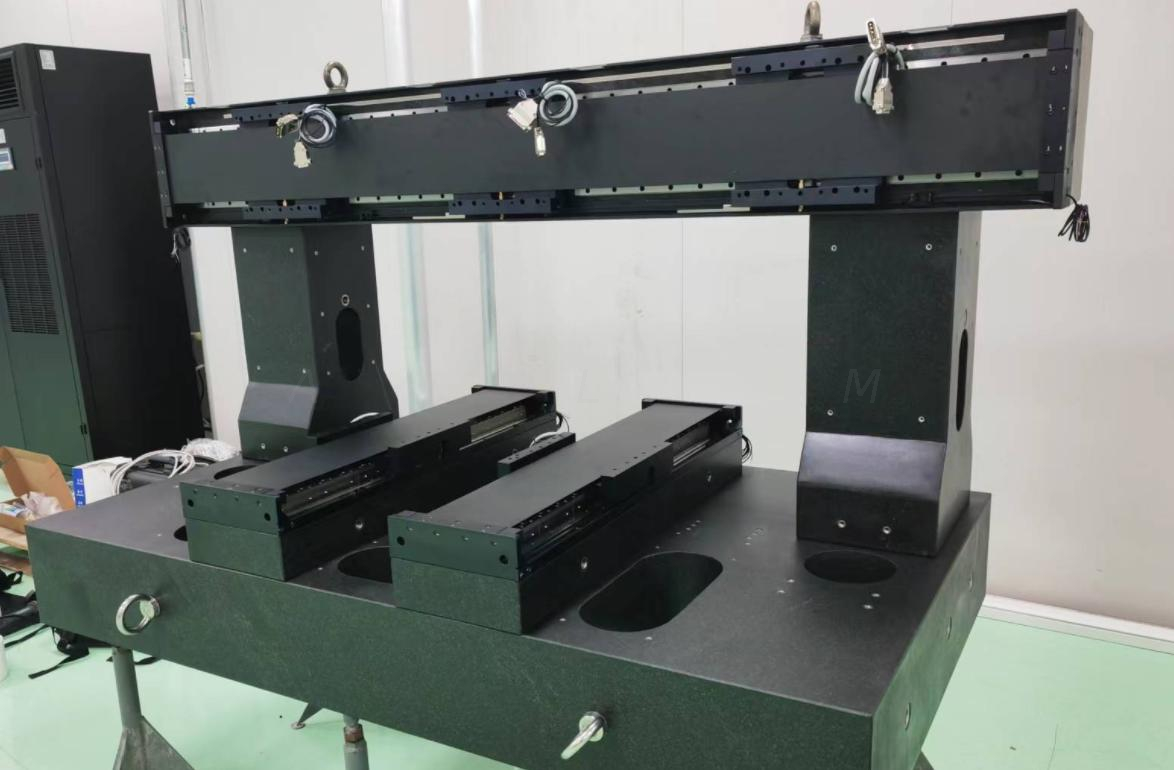

●MTF Linear Motor Applications
The applications of MTF linear motor from ALM in the following area can bring significant advantages for our customers.
- Ic Package
- Testing Of Semiconductor equipment
- Ic Patching
- Photovoltaic Panel manufacturing
- Laser Cutting equipments
- Medical Apparatus And Instruments
- Machine Tool
- Lithium battery manufacturing
- Optical Equipments
- Panel display manufacturing
MTF3 Linear motor catalog V6.1 EN-ALM.pdf
