Super Quality Non-magnetic Track Linear Motor for Robot Arm

Excellent service
Quality assurance
Customized service
Fast delivery:3~10days
Availability:
Quantity:
  • MTF-S2-100-B

  • 8501109990

Super Quality Non-magnetic Track Linear Motor for Robot Arm.The stator of the magnetic-track-free linear motor does not use magnets,but the powder magnetic conductive materials developed in recent years.The material has high permeability,high saturation flux and is easy to be manufactured by metallurgical die casting.MTF Linear Motors put the magnet inside the actuator,and when the actuator moves,the corresponding magnet moves.That is,the motor will have the excitation of the magnet with movement,the magnet movement to which part,which part of the electromagnetic force.Thus,as the rotary permanent magnet synchronous motor,the magnet utilization rate reaches 100%,no extra magnet is exposed.As a result,the cost of linear motors is greatly reduced and safety is improved.

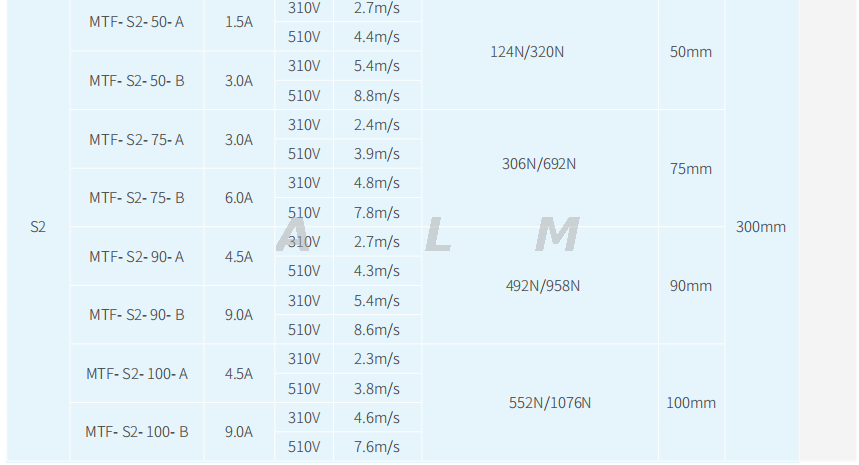

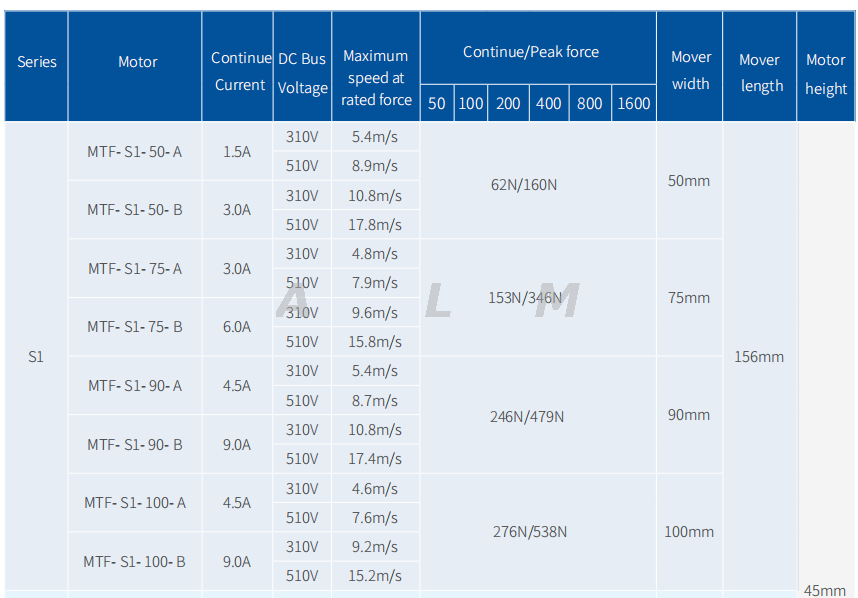

MTF Linear Motor Parameter

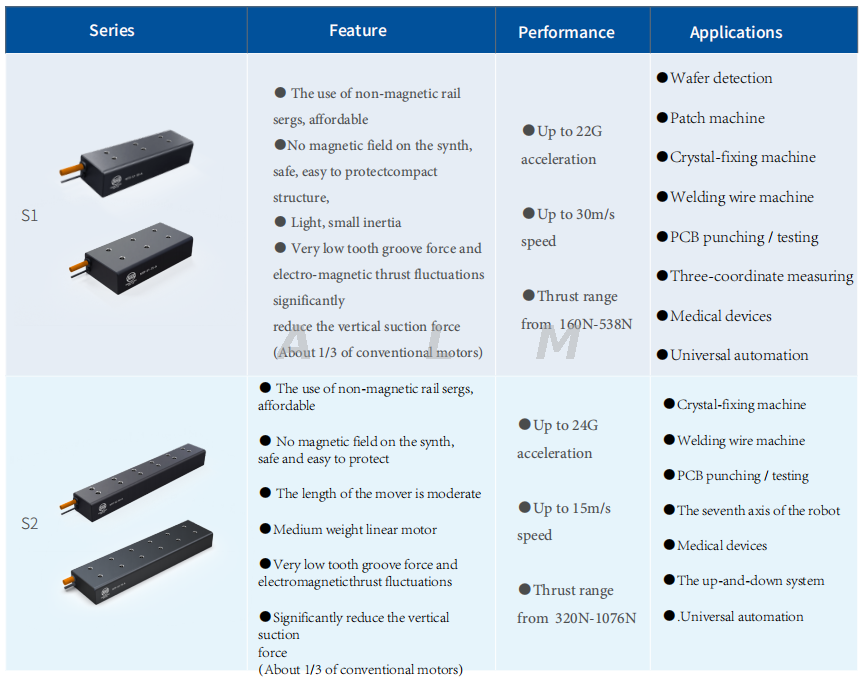

MTF linear motor

linear motor

S1 linear motor


MTF Linear Motor VS Conventional Linear Motor



ALM linear motor

MTF Linear Motor

We proposed the Magnetic-track-free linear motor for the first time in industry based on the innovation in the magnetic field theory.The stator does not need the PMs any more,which can save massive rare-earth materials bring at least 70% cost saving,particularly on long track linear motors.By iteratively optimizing the design and the manufacturing craft,MTF linear motor obtained the extremely high force density,operating speed and moving precision.

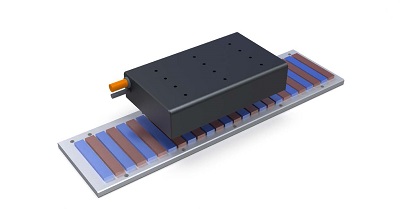

normal linear motor


Conventional Linear Motor

Linear motor moves by the magnetic force produced by the magnetic field between stator and mover,so the mover and the stator are untouched.For the conventional linear motors,whether for the iron core or the ironless core linear motors,they need to lay the magnetic track built by the permanent magnets on the stator,so the motor can move by the magnetic force produced by the coil-generated magnetic field and the PM generated magnetic field .



Our Advantages

MTF linear motor advantages


MORE SAFE No magnetic field in stator,easier for assembling,much lower risk for operators
MUCH SMALLER ATTRACTION FORCE About ⅓ of the conventional linear motor attraction force can reduce the friction and cogging force significantly,thus to increase the life expectancy and reduce the operating noise.
MUCH SMALLER COGGING FORCE Benefited from the low attraction force and the specialized optimizing design,MTF-LM can obtain the extremely low cogging force.
MORE ADAPTIVE With low requirement for the ingress protection,and reduce the EMI grade obviously
EASIER FOR PROTECTION Not easy to attract the sundries and ashes into the motor,easier for protection
HIGHER COST-EFFECTIVE Benefited from the rare-earth material saving,MTF is trying to provide the most cost-effective products for customers.


what you can get from ALM

MTF Linear Motor Applications


The applications of MTF linear motors from ALM in the following area can bring significant advantages for our customers.

- Ic Package

- Testing Of Semiconductor equipment

- Ic Patching

- Photovoltaic Panel manufacturing

- Laser Cutting equipments

- Medical Apparatus And Instruments

- Machine Tool

- Lithium battery manufacturing

- Optical Equipments

- Panel display manufacturing


MTF linear motor application



ALM


ALM originally established in year of 2005.From a small factory,ALM nowadays own factory 7000 square meters,109 employees.Above 8 technical engineers are with over 20 years' experience in linear motion filed.


With the products covering more than 72 countries in Europe,North America,South Asia,Middle East,Africa,Latin America and Australia,New Zealand etc.With super quality and service,ALM has been widely recognized and highly valued by its high-end and picky customers,and thus remains at the top of their vendor lists.In year of 2016,our Dr team carryied out new innovation linear motor testing.


ALM key production machines are imported,like high precision CNC grinding machine,3 axis,4 axis machining centre,internal and external grinding centre,CNC lathe.With advanced production management enables ALM obtain the quality certificate ISO9001:2008 and IATF16949.The R&D achievements over many years bring  ALM more than 26 national patents.


ALM R&D team

ALM R&D team

ALM R&D teamR&D team

ALM's office

ALM office


ALM's workshop

ALM linear motor workshop

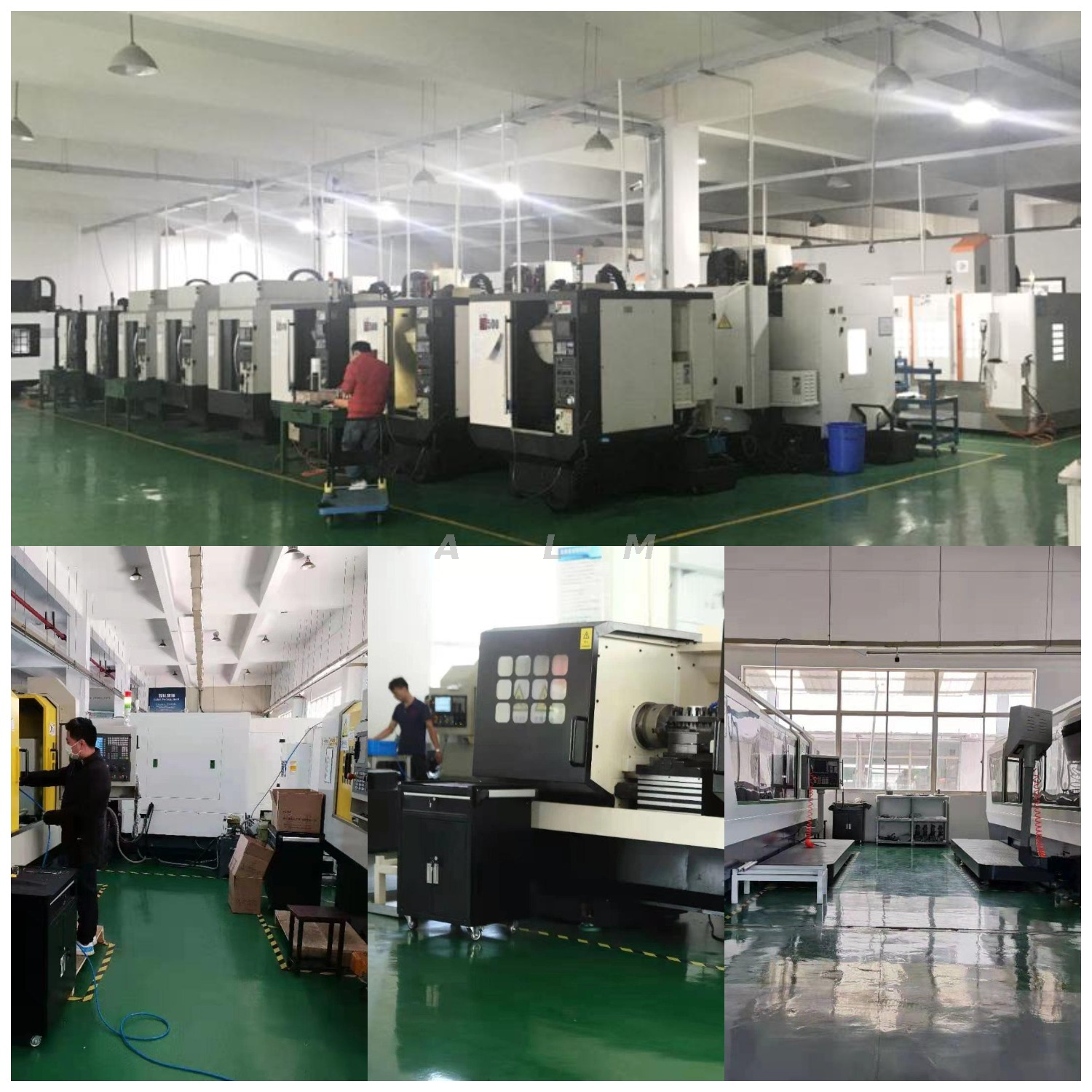

ALM product processing

ALM product processing

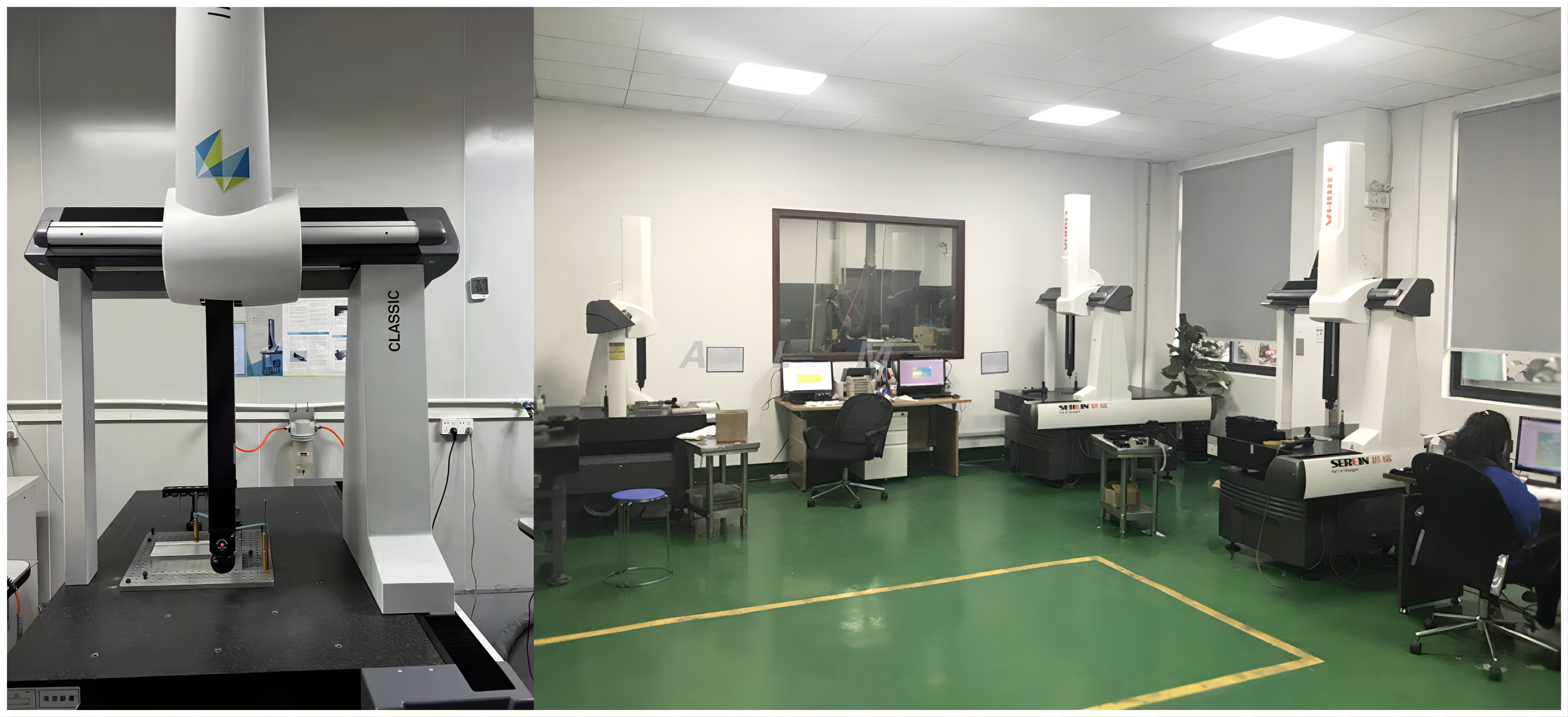

ALM product testing

product testing

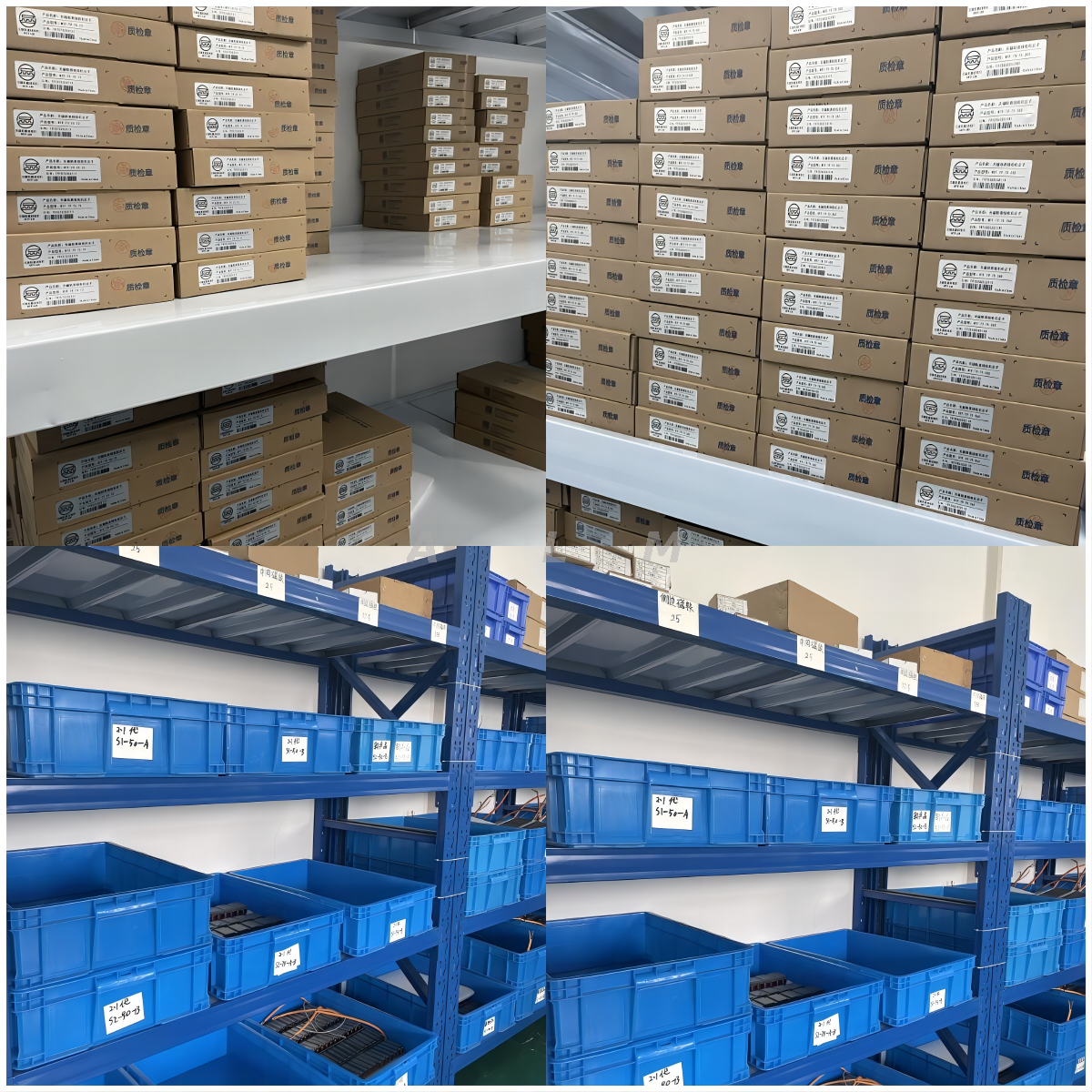

ALM's warehouse

ALM warehouse

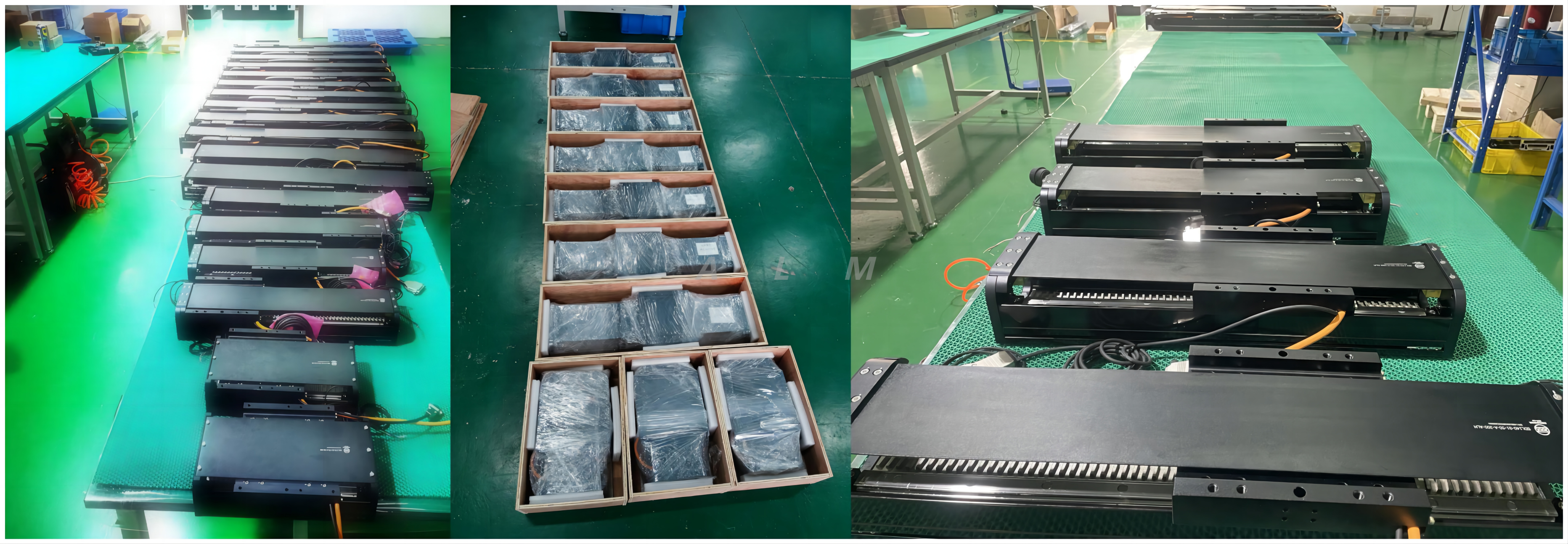

ALM product show


ALM product show


Customer Visit

customer visit


Patent Certificate for invention and utility model

seidal product certificate


ISO certificate

seidal certificate

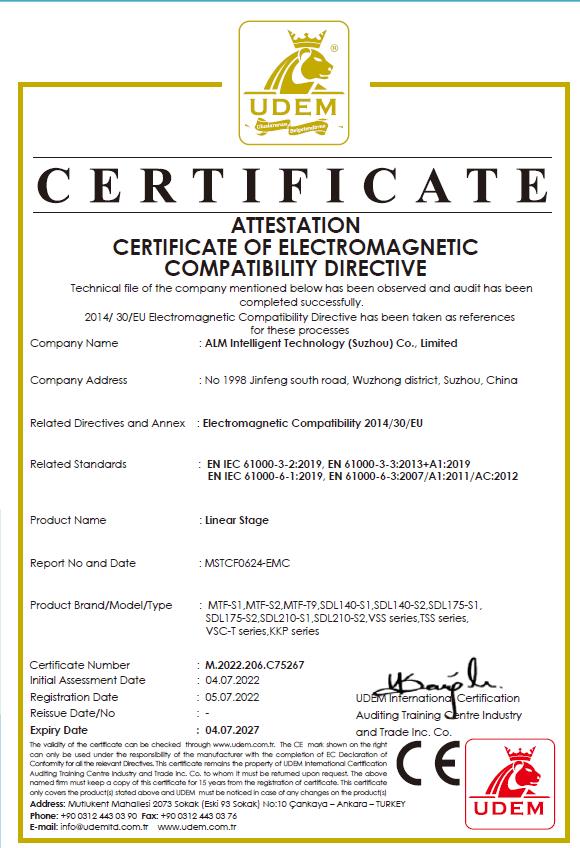

CE certificate

ALM linear motor certificate

1.Why can ALM be your better option for linear motion components?

With more than 16 years of industry experience,quality assurance,factory directly price.


2.What is your main products ?

Our Main products are consist of ball screw,linear guide,lead screw,linear module and linear motor.


3.When can I get the quotation?

We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price,please call us or tell us in your email so that we will regard your inquiry priority.


4.How to Custom-made?

custom ball screw
