High Speed Compact Magnetic Track Free Linear Motor for Optical Equipments

The first one and unique manufacturer for non magnetic track linear motor in China
Fast delivery,some in stock
Availability:
Quantity:
  • S1-50-A(B)

  • ALM

  • 8501109990

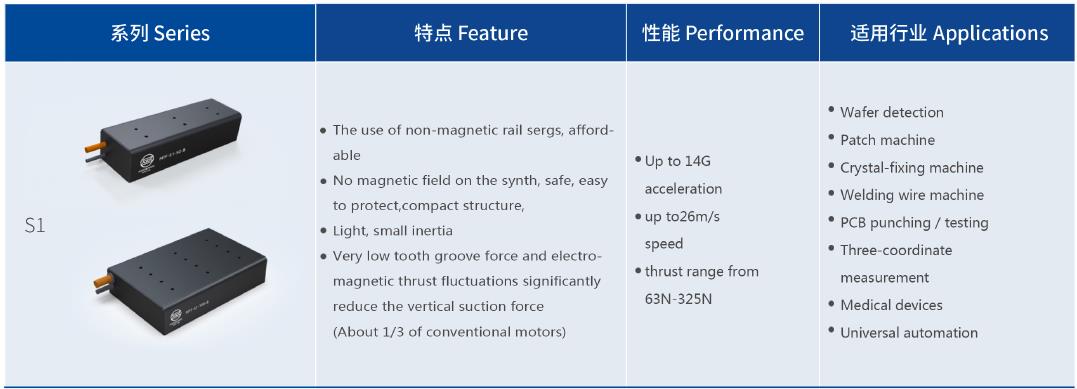

S1 series linear motor

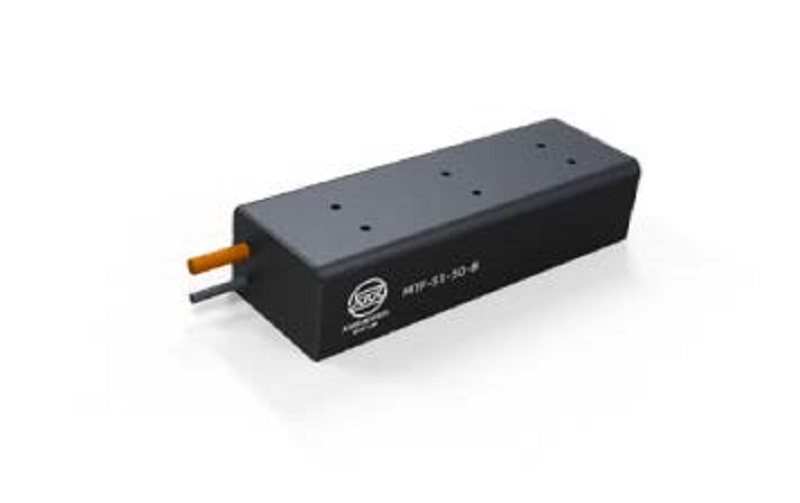

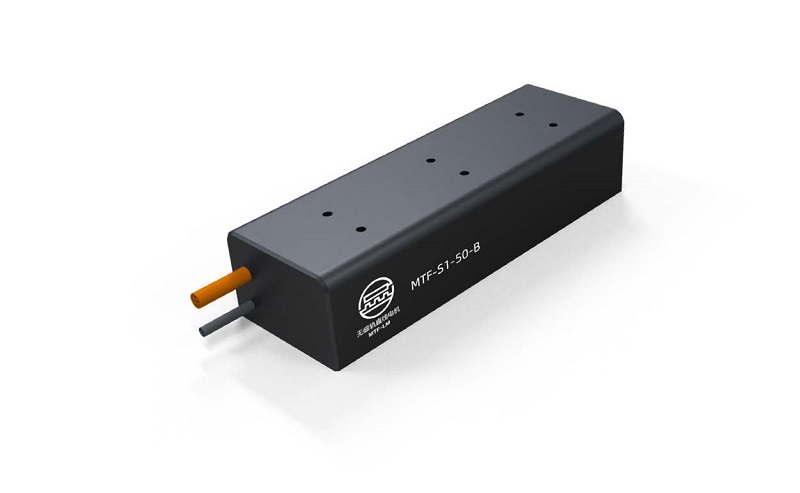

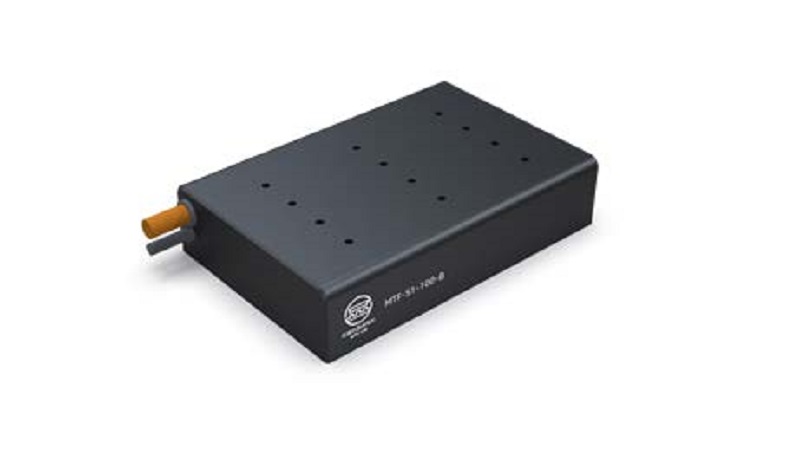

linear motor made in China (2)

What is magnetic-track-free linear motor?

Linear motor moves by the magnetic force produced by the magnetic field between stator and mover, so the mover and the stator are untouched. For the conventional linear motors, whether for the iron core or the ironless core linear motors, they need to lay the magnetic track built by the permanent magnets on the stator, so the motor can move by the magnetic force produced by the coil-generated magnetic field and the PM generated magnetic field.normal linear motor

ALM proposed the Magnetic-track-free (MTF) linear motor for the first time in industry based on the innovation in the magnetic field theory. Remarkably, the stator does not need the magnetic track anymore, which can save the massive rare-earth materials. By iteratively optimizing the design and the manufacturing craft, MTF linear motor obtained the extremely high force density, operating speed and moving precision.

ALM linear motor


ADVANTAGES OF magnetic-track-free LINEAR MOTORS


Not only with the advantages of high precision and high speed of normal linear motor, but also with the following obvious advantages.


MORE SAFE:No magnetic field in stator, easier for assembling, much lower risk for operators

MUCH SMALLER ATTRACTION FORCE: About ⅓ of the conventional linear motor attraction force can reduce the friction and cogging force significantly, thus to increase the life expectancy and reduce the operating noise.

MUCH SMALLER COGGING FORCE: Benefited from the low attraction force and the specialized optimizing design, MTF-LM can obtain the extremely low cogging force.

MORE ADAPTIVEWith low requirement for the ingress protection, and reduce the EMI grade obviously

EASIER FOR PROTECTION:Not easy to attract the sundries and ashes into the motor, easier for protection

HIGHER COST-EFFECTIVEBenefited from the rare-earth material saving, MTF is trying to provide the most cost-effective products for customers.


The applications of MTF linear motors from ALM in the following area can bring significant advantages for our customers.



- Ic Package

- Testing Of Semiconductor equipment

- Ic Patching

- Photovoltaic Panel manufacturing

- Laser Cutting equipments

- Medical Apparatus And Instruments

- Machine Tool

- Lithium battery manufacturing

- Optical Equipments

- Panel display manufacturing

linear motor application from ALM
