Magnetic-track-free Direct Drive Linear Motor Stator

Excellent service
Quality assurance
Customized service
Fast delivery:3~10days
Availability:
Quantity:
  • 8501109990

The stator of the magnetic-track-free linear motor does not use magnet,but the powder magnetic conductive materials.This material is developed by our engineer team and has very little magnetism.For most conventional linear motors,they need to lay the magnetic track built by the permanent magnets on the stator.

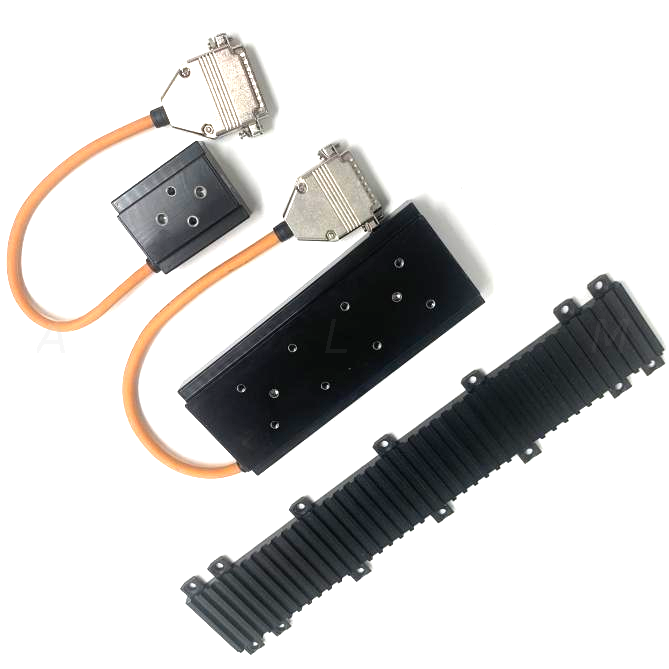

MTF Linear Motor stators


So when we put the iron on the stator of the MTF linear motor, they will not attracted to each other.But, when we put iron on the conventional linear motor stator, they will attracted to each other.

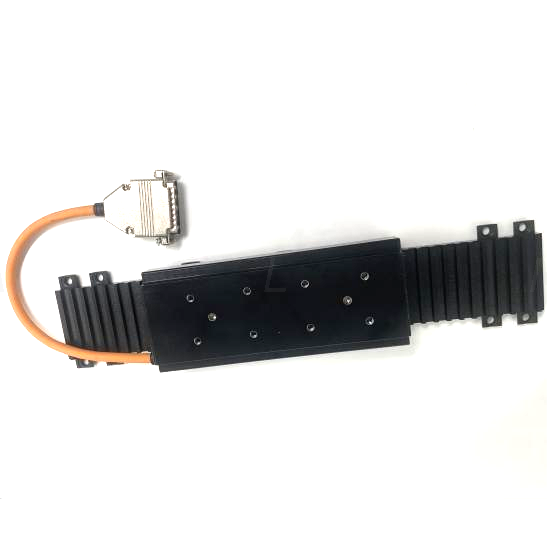

 direct drive linear motor


Due to much less amount of magnets applied compared to conventional linear motors,so MTF linear motor price is much more attractive can bring at least 70% COST SAVING.


●MTF Linear Motor Stator Parameter


MTF3-S1-50-A(B)Linear Motor mover And stator


●MTF Linear Motor Stator Advantages

Using non-contact drive,and no magnet on the stator,there is no risk of degumming and will not affect medical AIDS,and the safety during installation process is greatly improved.MTF linear motor can obtain the extremely low cogging force.


This linear motor control method is completely same as that of conventional linear motor,and can obtain much higher accuracy,higher speed,high efficiency than the ball screw.Our linear motor is ideal for long stroke applications.The longer the stroke,the more cost-effective.


ALM


ALM originally established in year of 2005.From a small factory,ALM nowadays own factory 7000 square meters,109 employees.Above 8 technical engineers are with over 20 years' experience in linear motion filed.


With the products covering more than 72 countries in Europe,North America,South Asia,Middle East,Africa,Latin America and Australia,New Zealand etc.With super quality and service,ALM has been widely recognized and highly valued by its high-end and picky customers,and thus remains at the top of their vendor lists.In year of 2016,our Dr team carryied out new innovation linear motor testing.


ALM key production machines are imported,like high precision CNC grinding machine,3 axis,4 axis machining centre,internal and external grinding centre,CNC lathe.With advanced production management enables ALM obtain the quality certificate ISO9001:2008 and IATF16949.The R&D achievements over many years bring  ALM more than 26 national patents.


ALM R&D team

ALM R&D team

ALM R&D teamR&D team

ALM's office

ALM office


ALM's workshop

ALM linear motor workshop


ALM product processing

ALM product processing

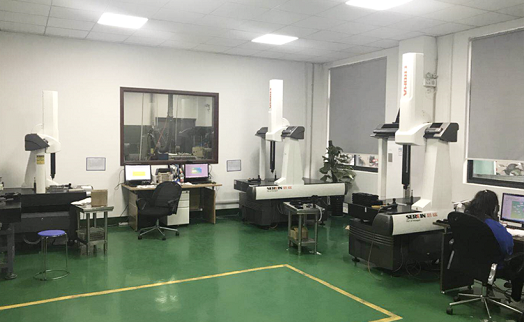

ALM product testing

product testing


ALM's warehouse

ALM warehouse


ALM product show

ALM product show


Customer Visit

customer visit


Patent Certificate for invention and utility model

seidal product certificate


ISO certificate

seidal certificate


CE certificate

ALM linear motor certificate

1.Why can ALM be your better option for linear motion components?

With more than 16 years of industry experience,quality assurance,factory directly price.


2.What is your main products ?

Our Main products are consist of ball screw,linear guide,lead screw,linear module and linear motor.


3.When can I get the quotation?

We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price,please call us or tell us in your email so that we will regard your inquiry priority.


4.How to Custom-made?

custom ball screw
