| Quantity: | |
|---|---|
MTF-S1-75-A
8501109990

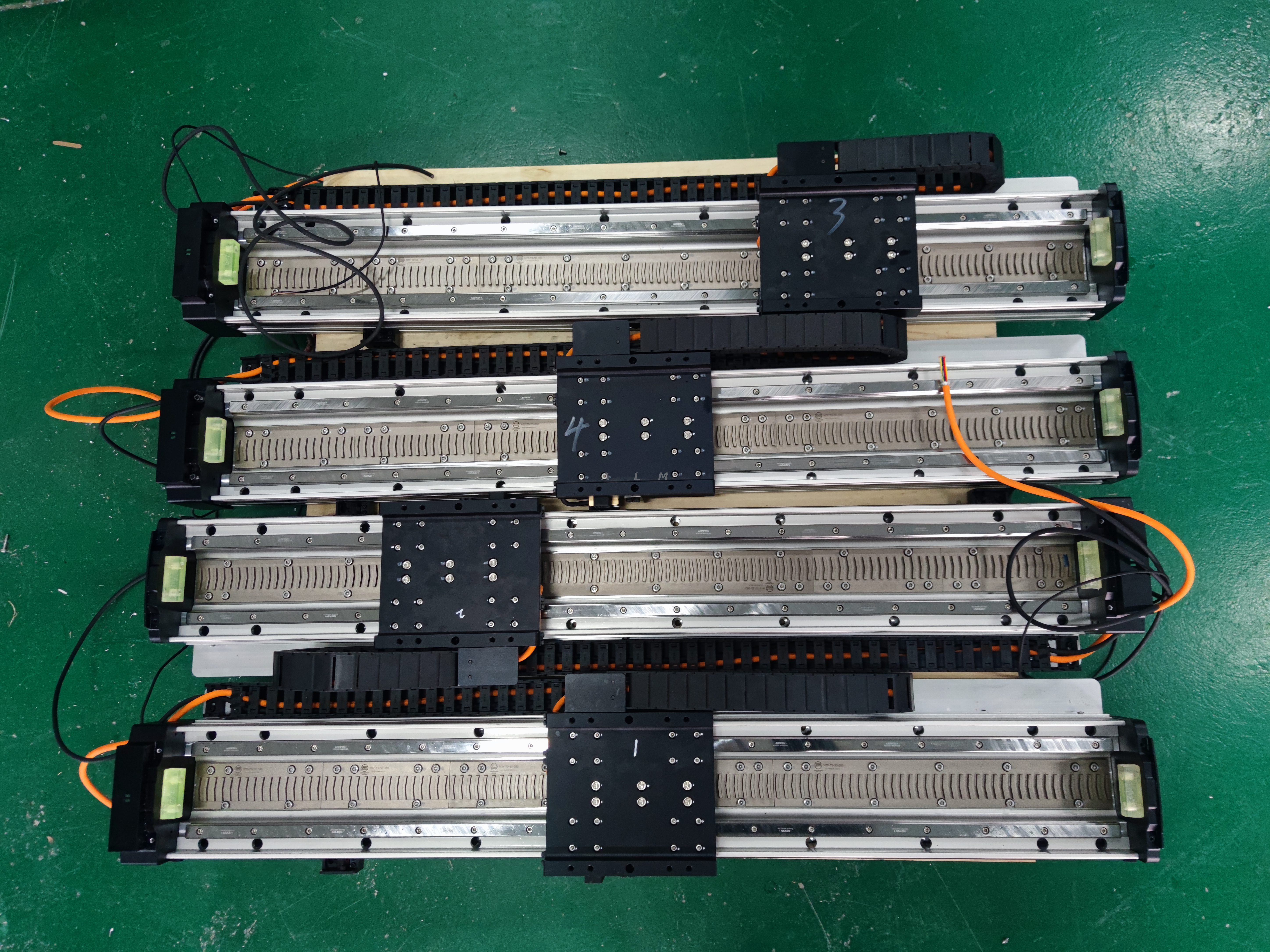

Non-magnetic Rail Linear Motor for Laser Marking and Engraving Machine.MTF Linear Motors can effectively overcome the disadvantages of large magnet consumption and low magnet utilization of the conventional linear motor.There is no magnetic rail on the stator of a linear motor.The non-magnetic rail linear motor puts the magnet inside the actuator,and when the actuator moves,the corresponding magnet moves.In other words,the motor will have the excitation of the magnet with movement,the magnet movement to which part,which part of the electromagnetic force.Thus,as the rotary permanent magnet synchronous motor,the magnet utilization rate reaches 100%,no additional magnet is exposed.Thus,the cost of linear motors is greatly reduced and safety is improved.
| MTF Linear Motor Parameter |
| MTF Linear Motor VS Conventional Linear Motor |
| Our Advantages |
MTF linear motor advantages
| MORE SAFE | No magnetic field in stator,easier for assembling,much lower risk for operators |
| MUCH SMALLER ATTRACTION FORCE | About ⅓ of the conventional linear motor attraction force can reduce the friction and cogging force significantly,thus to increase the life expectancy and reduce the operating noise. |
| MUCH SMALLER COGGING FORCE | Benefited from the low attraction force and the specialized optimizing design,MTF-LM can obtain the extremely low cogging force. |
| MORE ADAPTIVE | With low requirement for the ingress protection,and reduce the EMI grade obviously |
| EASIER FOR PROTECTION | Not easy to attract the sundries and ashes into the motor,easier for protection |
| HIGHER COST-EFFECTIVE | Benefited from the rare-earth material saving,MTF is trying to provide the most cost-effective products for customers. |
| MTF Linear Motor Applications |
The applications of MTF linear motors from ALM in the following area can bring significant advantages for our customers.
- Ic Package
- Testing Of Semiconductor equipment
- Ic Patching
- Photovoltaic Panel manufacturing
- Laser Cutting equipments
- Medical Apparatus And Instruments
- Machine Tool
- Lithium battery manufacturing
- Optical Equipments
- Panel display manufacturing
