MTF-S1-50-A
8501109990

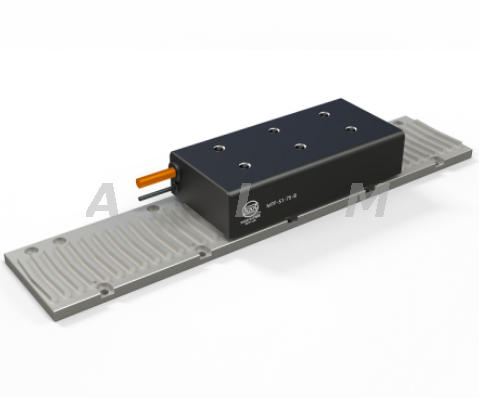

Affordable High Speed Non-magnetic Track Linear Motor.The stator of the magnetic-track-free linear motor does not use magnets,but the powder magnetic conductive materials developed in recent years.The material has high permeability,high saturation flux and is easy to be manufactured by metallurgical die casting.MTF Linear Motors put the magnet inside the actuator,and when the actuator moves,the corresponding magnet moves.That is,the motor will have the excitation of the magnet with movement,the magnet movement to which part,which part of the electromagnetic force.Thus,as the rotary permanent magnet synchronous motor,the magnet utilization rate reaches 100%,no extra magnet is exposed.As a result,the cost of linear motors is greatly reduced and safety is improved.
MTF Linear Motor Parameter |
MTF Linear Motor VS Conventional Linear Motor |
MTF Linear Motor
We proposed the Magnetic-track-free linear motor for the first time in industry based on the innovation in the magnetic field theory.The stator does not need the PMs any more,which can save massive rare-earth materials bring at least 70% cost saving,particularly on long track linear motors.By iteratively optimizing the design and the manufacturing craft,MTF linear motor obtained the extremely high force density,operating speed and moving precision.
Conventional Linear Motor
Linear motor moves by the magnetic force produced by the magnetic field between stator and mover,so the mover and the stator are untouched.For the conventional linear motors,whether for the iron core or the ironless core linear motors,they need to lay the magnetic track built by the permanent magnets on the stator,so the motor can move by the magnetic force produced by the coil-generated magnetic field and the PM generated magnetic field .
Our Advantages |
MTF linear motor advantages
MORE SAFE | No magnetic field in stator,easier for assembling,much lower risk for operators |
MUCH SMALLER ATTRACTION FORCE | About ⅓ of the conventional linear motor attraction force can reduce the friction and cogging force significantly,thus to increase the life expectancy and reduce the operating noise. |
MUCH SMALLER COGGING FORCE | Benefited from the low attraction force and the specialized optimizing design,MTF-LM can obtain the extremely low cogging force. |
MORE ADAPTIVE | With low requirement for the ingress protection,and reduce the EMI grade obviously |
EASIER FOR PROTECTION | Not easy to attract the sundries and ashes into the motor,easier for protection |
HIGHER COST-EFFECTIVE | Benefited from the rare-earth material saving,MTF is trying to provide the most cost-effective products for customers. |
MTF Linear Motor Applications |
The applications of MTF linear motors from ALM in the following area can bring significant advantages for our customers.
- Ic Package
- Testing Of Semiconductor equipment
- Ic Patching
- Photovoltaic Panel manufacturing
- Laser Cutting equipments
- Medical Apparatus And Instruments
- Machine Tool
- Lithium battery manufacturing
- Optical Equipments
- Panel display manufacturing
Affordable High Speed Non-magnetic Track Linear Motor.The stator of the magnetic-track-free linear motor does not use magnets,but the powder magnetic conductive materials developed in recent years.The material has high permeability,high saturation flux and is easy to be manufactured by metallurgical die casting.MTF Linear Motors put the magnet inside the actuator,and when the actuator moves,the corresponding magnet moves.That is,the motor will have the excitation of the magnet with movement,the magnet movement to which part,which part of the electromagnetic force.Thus,as the rotary permanent magnet synchronous motor,the magnet utilization rate reaches 100%,no extra magnet is exposed.As a result,the cost of linear motors is greatly reduced and safety is improved.
MTF Linear Motor Parameter |
MTF Linear Motor VS Conventional Linear Motor |
MTF Linear Motor
We proposed the Magnetic-track-free linear motor for the first time in industry based on the innovation in the magnetic field theory.The stator does not need the PMs any more,which can save massive rare-earth materials bring at least 70% cost saving,particularly on long track linear motors.By iteratively optimizing the design and the manufacturing craft,MTF linear motor obtained the extremely high force density,operating speed and moving precision.
Conventional Linear Motor
Linear motor moves by the magnetic force produced by the magnetic field between stator and mover,so the mover and the stator are untouched.For the conventional linear motors,whether for the iron core or the ironless core linear motors,they need to lay the magnetic track built by the permanent magnets on the stator,so the motor can move by the magnetic force produced by the coil-generated magnetic field and the PM generated magnetic field .
Our Advantages |
MTF linear motor advantages
MORE SAFE | No magnetic field in stator,easier for assembling,much lower risk for operators |
MUCH SMALLER ATTRACTION FORCE | About ⅓ of the conventional linear motor attraction force can reduce the friction and cogging force significantly,thus to increase the life expectancy and reduce the operating noise. |
MUCH SMALLER COGGING FORCE | Benefited from the low attraction force and the specialized optimizing design,MTF-LM can obtain the extremely low cogging force. |
MORE ADAPTIVE | With low requirement for the ingress protection,and reduce the EMI grade obviously |
EASIER FOR PROTECTION | Not easy to attract the sundries and ashes into the motor,easier for protection |
HIGHER COST-EFFECTIVE | Benefited from the rare-earth material saving,MTF is trying to provide the most cost-effective products for customers. |
MTF Linear Motor Applications |
The applications of MTF linear motors from ALM in the following area can bring significant advantages for our customers.
- Ic Package
- Testing Of Semiconductor equipment
- Ic Patching
- Photovoltaic Panel manufacturing
- Laser Cutting equipments
- Medical Apparatus And Instruments
- Machine Tool
- Lithium battery manufacturing
- Optical Equipments
- Panel display manufacturing
