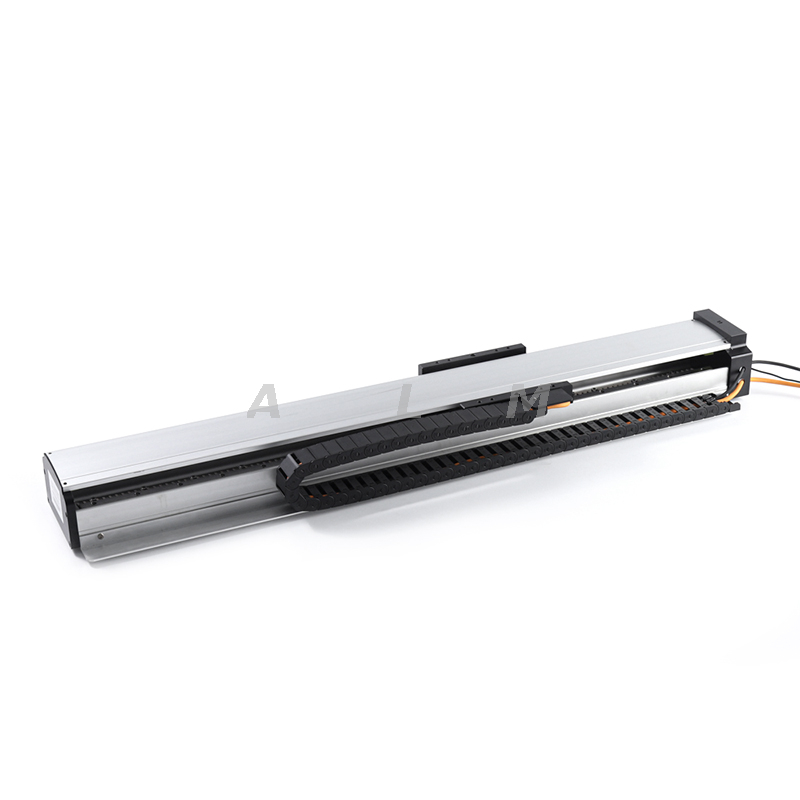

SDL210-S1-90-B
8501109990
Patent MTF Linear Motor Module for Seventh Axis of Robot.The stator of the magnetic-track-free linear motor mudule does not use magnets,but the powder magnetic conductive materials developed in recent years.The material has high permeability,high saturation flux and is easy to be manufactured by metallurgical die casting.MTF Linear Motor modules put the magnet inside the actuator,and when the actuator moves,the corresponding magnet moves.That is,the motor mudule will have the excitation of the magnet with movement,the magnet movement to which part,which part of the electromagnetic force.Thus,as the rotary permanent magnet synchronous motor,the magnet utilization rate reaches 100%,no extra magnet is exposed.As a result,the cost of linear motor mudule is greatly reduced and safety is improved.

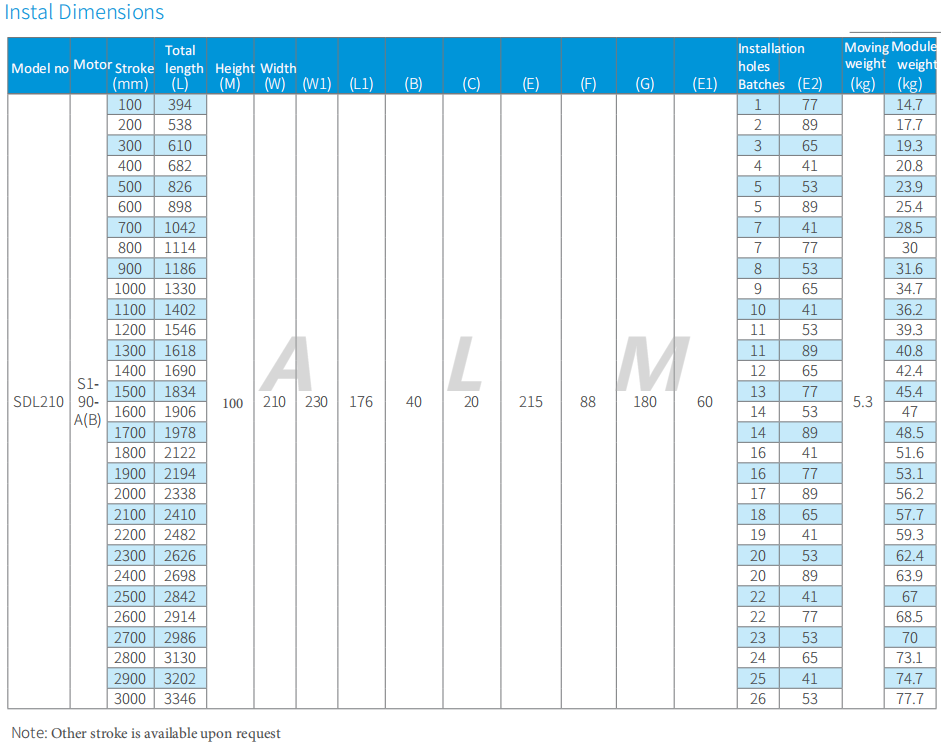

MTF Linear Motor Module Parameter |
Our Advantages |
MTF linear motor module advantages
MORE SAFE | No magnetic field in stator,easier for assembling,much lower risk for operators |
MUCH SMALLER ATTRACTION FORCE | About ⅓ of the conventional linear motor attraction force can reduce the friction and cogging force significantly,thus to increase the life expectancy and reduce the operating noise. |
MUCH SMALLER COGGING FORCE | Benefited from the low attraction force and the specialized optimizing design,MTF-LM can obtain the extremely low cogging force. |
MORE ADAPTIVE | With low requirement for the ingress protection,and reduce the EMI grade obviously |
EASIER FOR PROTECTION | Not easy to attract the sundries and ashes into the motor,easier for protection |
HIGHER COST-EFFECTIVE | Benefited from the rare-earth material saving,MTF is trying to provide the most cost-effective products for customers. |
MTF Linear Motor Module Applications |
The applications of MTF linear motor mudule from ALM in the following area can bring significant advantages for our customers.
- Ic Package
- Testing Of Semiconductor equipment
- Ic Patching
- Photovoltaic Panel manufacturing
- Laser Cutting equipments
- Medical Apparatus And Instruments
- Machine Tool
- Lithium battery manufacturing
- Optical Equipments
- Panel display manufacturing
Patent MTF Linear Motor Module for Seventh Axis of Robot.The stator of the magnetic-track-free linear motor mudule does not use magnets,but the powder magnetic conductive materials developed in recent years.The material has high permeability,high saturation flux and is easy to be manufactured by metallurgical die casting.MTF Linear Motor modules put the magnet inside the actuator,and when the actuator moves,the corresponding magnet moves.That is,the motor mudule will have the excitation of the magnet with movement,the magnet movement to which part,which part of the electromagnetic force.Thus,as the rotary permanent magnet synchronous motor,the magnet utilization rate reaches 100%,no extra magnet is exposed.As a result,the cost of linear motor mudule is greatly reduced and safety is improved.
MTF Linear Motor Module Parameter |
Our Advantages |
MTF linear motor module advantages
MORE SAFE | No magnetic field in stator,easier for assembling,much lower risk for operators |
MUCH SMALLER ATTRACTION FORCE | About ⅓ of the conventional linear motor attraction force can reduce the friction and cogging force significantly,thus to increase the life expectancy and reduce the operating noise. |
MUCH SMALLER COGGING FORCE | Benefited from the low attraction force and the specialized optimizing design,MTF-LM can obtain the extremely low cogging force. |
MORE ADAPTIVE | With low requirement for the ingress protection,and reduce the EMI grade obviously |
EASIER FOR PROTECTION | Not easy to attract the sundries and ashes into the motor,easier for protection |
HIGHER COST-EFFECTIVE | Benefited from the rare-earth material saving,MTF is trying to provide the most cost-effective products for customers. |
MTF Linear Motor Module Applications |
The applications of MTF linear motor mudule from ALM in the following area can bring significant advantages for our customers.
- Ic Package
- Testing Of Semiconductor equipment
- Ic Patching
- Photovoltaic Panel manufacturing
- Laser Cutting equipments
- Medical Apparatus And Instruments
- Machine Tool
- Lithium battery manufacturing
- Optical Equipments
- Panel display manufacturing
