12x10 High Speed Bi-directional Ball Screw Made in China

MWF1210 high speed ball screw (2)

Miniature ball screw diameter:	3mm~16mm
Lead and pitch:	0.5mm~20mm
Accuracy grade:	C0~C7 ( JIS B1192 standard )
Manufacturing technology:	both ground and rolled ball screw are available
Certificate:	IATF16949, ISO9001:2015; RoHS, CE compliance
MOQ:	1 piece available for prototype
Delivery time:	Samples 10~15 days, small order 20 days,bulk order 20~30 days.
Packing:	Plastic bag + wooden box or according to customers' demands
Other models:	0401, 0501, 0502, 0601, 0602, 0801, 0802, 0803, 0804, 0805 1001, 1002, 1003, 1004, 1201, 1202, 1203, 1204, 1205, 1210, 1402, 1403, 1404, 1405, 1602, 1603, 1604, 1605, 1608, 1610 etc.
Mating parts:	Nut housing,ball screw support unit WBK,BF,EK,EF,FK,FF,end maching service is available

Notes:Above is part of standard models,other model or nut type is available upon drawing

ALM can totally replace and provide drop in for you
Same ballnut dimensions
ALM models	Brand	Item no
ASF0401	TBI	SFK0401
	TGK	IZ/IK0401
	HIPP	KGT-F1-04-01
ASF0601	TBI	SFK0601
	PMI	FSMC0601
	UNI	SFI0601N
	Sankyo	KC/KP -0601-3
	HIPP	KGT-F1-06-01
ASF0601C	TGK	IK0601
	THK	MDK0601-3
	KSS	FKB0601A
ASF0801	TBI	SFK0801
	PMI	FSMC0801
	UNI	SFI0801N
	Sankyo	KC/KP -0801-3
	HIPP	KGT-F1-08-01
ASF0801C	TGK	IK0801
	THK	MDK0801-3
	KSS	FKB0801A
ASF0801D	MISUMI	BSX0801
ASF0801D	KURODA	DR0801JS-HDNR
ASA0801	HIPP	KGT-E1-08-01
ASF0802	TBI	SFK0802
	MISUMI	C-BSST(K).C-BSST(K)0802
	HIPP	KGT-F1-08-02
ASA0802	HIPP	KGT-E1-08-02
ASF0802B	PMI	FSMC0802
	UNI	SFI0802N
	HIPP	KGT-F2-08-02
ASF0802C	UNI	SFI0802D
ASF0802C	KSS	FKB0802A
ASF0802E	TGK	IK0802
ASF0802E	THK	MDK0802-3
ASF0802.5	TBI	SFK0802.5
ASF0802.5	HIPP	KGT-F1-08-2.5
ASF0802.5B	HIPP	KGT-F2-08-2.5
APF0804	KSS	FBS0804A
APF0805	KSS	FBS0805A
ASF1002	TBI	SFK01002
	PMI	FSMC1002
	UNI	SFI1002N
	MISUMI	C-BSSC(K).C-BSST(K)1002 C-BSS1002
	Sankyo	KC/KP -1002-3
	HIPP	KGT-F1-10-02
ASA1002	TBI	BSHR01002-3.5
ASF1004C	TBI	SFK01004
ASF1004C	MISUMI	C-BSSC(K).C-BSST(K)1004 C-BSS1004
AWF1004	TGK	IZ1004
ASF1202	TBI	SFK01202
	PMI	FSMC1202
	UNI	SFI1202N
	MISUMI	C-BSS1202
	Sankyo	KC/KP -1202-3
	HIPP	KGT-F1-12-02
ASF1202C	TGK	IG1202
	MISUMI	BSSX.BSS.BSSE1202
	KURODA	GR1202DS-AAPR
ASF1204C	MISUMI	C-BSSC(K).C-BSST(K)1204
ASF1205B	PMI	FSWC1205
	UNI	SFI1205N
	THK	BNK1205-2.5
	Sankyo	TC/TP1205-2.5
ASF1402	TGK	IK1402
	TBI	SFK01402
	THK	MDK1402-3
ASF1404	THK	MDK1404-3
ASF1404	Sankyo	KC/KP -1404-3
ASF1602	TBI	SFK01602
AWF1210	TGK	IZ1210
	PMI	FSWE/FSWC1210
	UNI	SFI1210N
	KSS	FBS1210T
APF1210	MISUMI	C-BSSC(K).C-BSST(K)1210 C-BSS1210

Feel free to contact us for more files!

Our customer's case

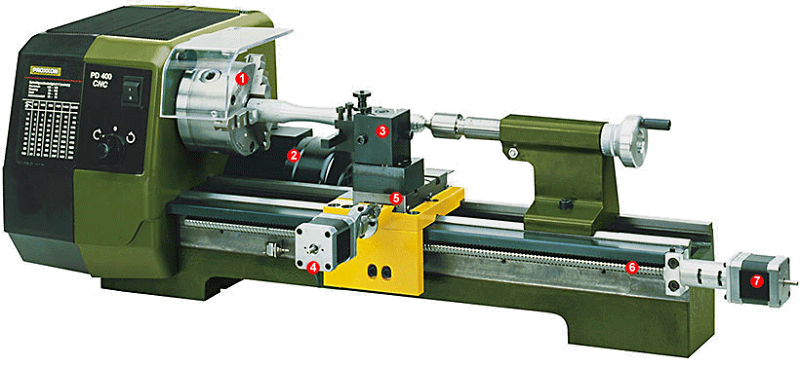

ball screw application

High precision CNC router--with ALM miniature ball screw

ALM's mini ball screw advantages

1. High transfer efficiency

Balls with free motion in the ball screw assembly transfer the force and motion between screw and nut. This transfer mode replaces the traditional transfer mode that screw shaft and nut effect directly. Therefore the minimum rolling friction takes place of the sliding friction of traditional screw. The transfer efficiency of ALM ball screw will reach more than 90%. The drive torque of transfer unit reduces to 1/3 of sliding screw. This also greatly reduces the heat release.

2. High positioning accuracy
ALM Ball screw has low heat release, small temperature increase and with actions of pre-stretch and eliminating axial clearance in the process, which make ball screw have high positioning accuracy and repeating positioning accuracy.Positioning deviation can be 0.002mm per 300mm travel.

3. Clean and smooth,excellent surface finish
ALM Ball screw has no sticky friction.ISO management systems ensure strict performance during production and experienced talent staff combing precision machine and optimized process flow causing super quality smooth ball screw.Each ball screw will go through ultrasonic before assembly.

4. Long service life
Since the strict control of ball screw groove shapes, surface hardness and material selection, the actual life of ALM ball screw is much longer.

5. Good synchronization
Due to smooth running, axial clearance elimination and consistency in manufacturing, several sets of ball screw assembly can drive the same unit or several identical parts to obtain the good synchronization.

Miniature Ball screw Application

ALM mini ball screws are used widely in the humanoid robots,precision equipment or industrial machinery,defense industry, power tools, medical industry, passenger cars, wire harness cable processing, laser machine, 3D printer, custom automation equipment,linear servo actuator,3C Intelligent Manufacturing, new energy automobile etc.
