Fast Delivery High Speed 0808 Ball Screw

8X8 ball screw
Same dimensions as KSS FBS0804A
MOQ:1 set
Fast delivery:15~20 days
Availability:
Quantity:
  • 0808

  • ALM

  • 8483401000

Fast Delivery High Speed 0808 Ball Screw

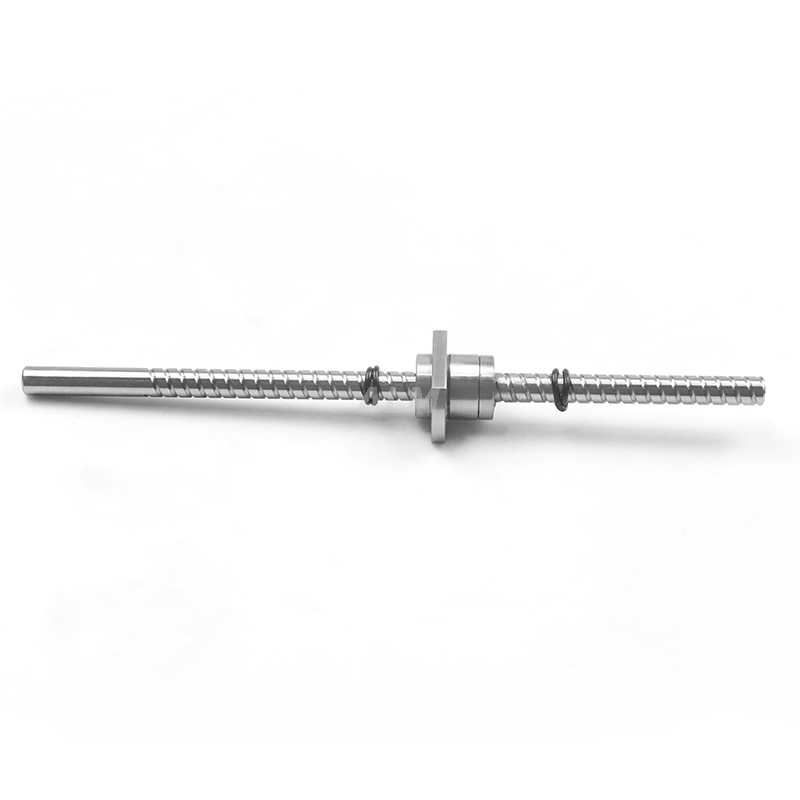

fast delivery high speed 0808 ball screw (3)


Miniature ball screw diameter:

3mm~16mm

Lead and pitch: 0.5mm~20mm
Accuracy grade: C0~C7 ( JIS B1192 standard )
Manufacturing technology:

both ground and rolled ball screw are available

Certificate: IATF16949, ISO9001:2015; RoHS, CE compliance
MOQ:

1 piece available for prototype

Delivery time:

Samples 10~15 days, small order 20 days,bulk order 20~30 days.

Packing:

Plastic bag + wooden box or according to customers' demands


Other models:

0401, 0501, 0502, 0601, 0602, 0801, 0802, 0803, 0804, 0805 1001, 1002, 1003, 1004, 1201, 1202, 1203, 1204, 1205, 1210, 1402, 1403, 1404, 1405, 1602, 1603, 1604, 1605, 1608, 1610 etc.

Mating parts:

Nut housing,ball screw support unit WBK,BF,EK,EF,FK,FF,end maching service is available


Notes:Above is part of standard models,other model or nut type is available upon drawing


                                        ALM can totally replace and provide drop in for you

                                                                        Same ballnut dimensions
ALM models Brand Item no
ASF0401 TBI SFK0401
TGK IZ/IK0401
HIPP KGT-F1-04-01
ASF0601 TBI SFK0601
PMI FSMC0601
UNI SFI0601N
Sankyo KC/KP -0601-3
HIPP KGT-F1-06-01
ASF0601C TGK IK0601
THK MDK0601-3
KSS FKB0601A
ASF0801 TBI SFK0801
PMI FSMC0801
UNI SFI0801N
Sankyo KC/KP -0801-3
HIPP KGT-F1-08-01
ASF0801C TGK IK0801
THK MDK0801-3
KSS FKB0801A
ASF0801D MISUMI BSX0801
KURODA DR0801JS-HDNR
ASA0801 HIPP KGT-E1-08-01
ASF0802 TBI SFK0802
MISUMI C-BSST(K).C-BSST(K)0802

HIPP KGT-F1-08-02
ASA0802 HIPP KGT-E1-08-02
ASF0802B PMI FSMC0802
UNI SFI0802N
HIPP KGT-F2-08-02
ASF0802C UNI SFI0802D
KSS FKB0802A
ASF0802E TGK IK0802
THK MDK0802-3
ASF0802.5 TBI SFK0802.5
HIPP KGT-F1-08-2.5
ASF0802.5B HIPP KGT-F2-08-2.5
APF0804 KSS FBS0804A
APF0805 KSS FBS0805A
ASF1002 TBI SFK01002
PMI FSMC1002
UNI SFI1002N
MISUMI C-BSSC(K).C-BSST(K)1002
    C-BSS1002
Sankyo KC/KP -1002-3
HIPP KGT-F1-10-02
ASA1002 TBI BSHR01002-3.5
ASF1004C TBI SFK01004
MISUMI C-BSSC(K).C-BSST(K)1004
    C-BSS1004
AWF1004 TGK IZ1004
ASF1202 TBI SFK01202
PMI FSMC1202
UNI SFI1202N
MISUMI C-BSS1202
Sankyo KC/KP -1202-3
HIPP KGT-F1-12-02
ASF1202C TGK IG1202
MISUMI BSSX.BSS.BSSE1202
KURODA GR1202DS-AAPR
ASF1204C MISUMI C-BSSC(K).C-BSST(K)1204
ASF1205B PMI FSWC1205
UNI SFI1205N
THK BNK1205-2.5
Sankyo TC/TP1205-2.5
ASF1402 TGK IK1402
TBI SFK01402
THK MDK1402-3
ASF1404 THK MDK1404-3
Sankyo KC/KP -1404-3
ASF1602 TBI SFK01602
AWF1210 TGK IZ1210
PMI FSWE/FSWC1210
UNI SFI1210N
KSS FBS1210T
APF1210 MISUMI C-BSSC(K).C-BSST(K)1210
    C-BSS1210

Feel free to contact us for more files!



Our customer's case


ball screw application


High precision CNC router--with ALM miniature ball screw



ALM's mini ball screw advantages


1. High transfer efficiency

Balls with free motion in the ball screw assembly transfer the force and motion between screw and nut. This transfer mode replaces the traditional transfer mode that screw shaft and nut effect directly. Therefore the minimum rolling friction takes place of the sliding friction of traditional screw. The transfer efficiency of ALM ball screw will reach more than 90%. The drive torque of transfer unit reduces to 1/3 of sliding screw. This also greatly reduces the heat release.


2. High positioning accuracy
ALM Ball screw has low heat release, small temperature increase and with actions of pre-stretch and eliminating axial clearance in the process, which make ball screw have high positioning accuracy and repeating positioning accuracy.Positioning deviation can be 0.002mm per 300mm travel.


3. Clean and smooth,excellent surface finish
ALM Ball screw has no sticky friction.ISO management systems ensure strict performance during production and experienced talent staff combing precision machine and optimized process flow causing super quality smooth ball screw.Each ball screw will go through ultrasonic before assembly.


4. Long service life
Since the strict control of ball screw groove shapes, surface hardness and material selection, the actual life of ALM ball screw is much longer.


5. Good synchronization
Due to smooth running, axial clearance elimination and consistency in manufacturing, several sets of ball screw assembly can drive the same unit or several identical parts to obtain the good synchronization.



Miniature Ball screw Application


ALM mini ball screws are used widely in the humanoid robots,precision equipment or industrial machinery,defense industry, power tools, medical industry, passenger cars, wire harness cable processing, laser machine, 3D printer, custom automation equipment,linear servo actuator,3C Intelligent Manufacturing, new energy automobile etc.



Download a catalog:

miniature ball screw catalog-ALM.pdf
