SSV25-5B1
ALM
8483401000

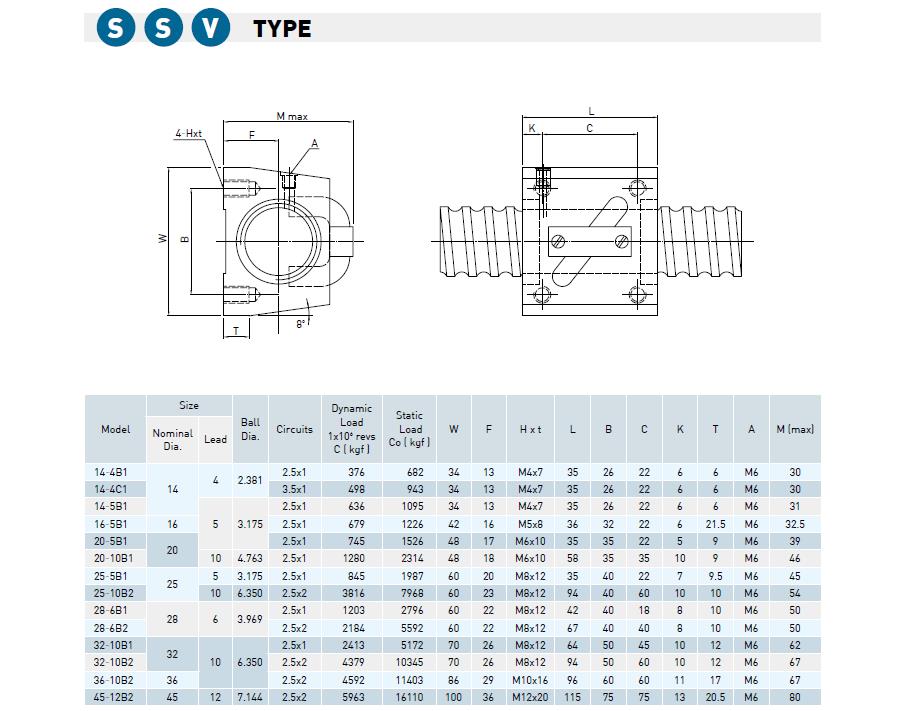

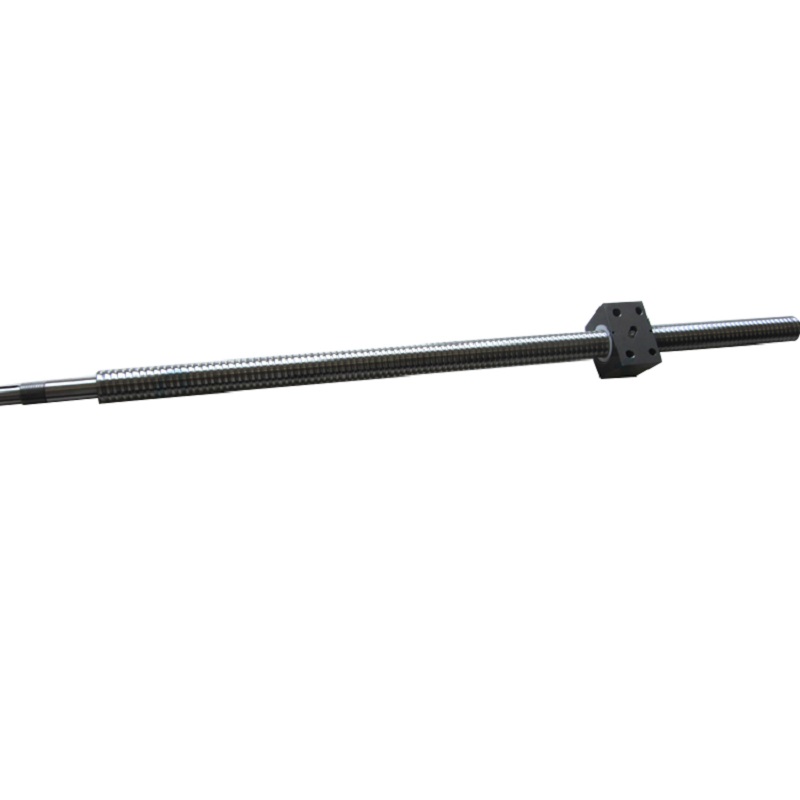

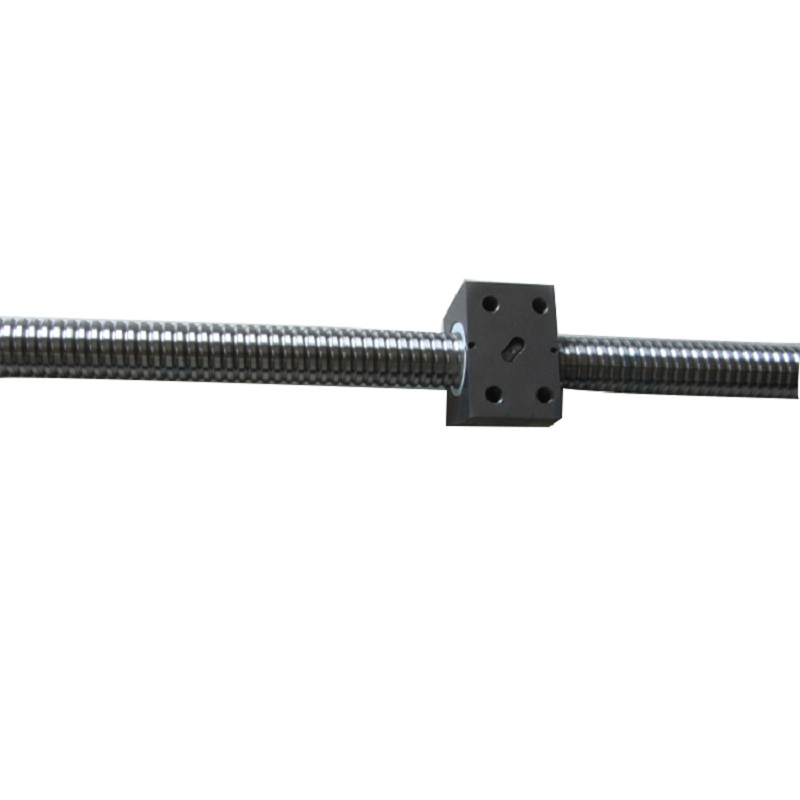

Square Ballnut Custom Ball Screw HIWIN SSV Ballnut
| Custom ball screw diameter: | 3mm~80mm |
| Lead and pitch: | 0.5mm~32mm |
| Accuracy grade: | C0~C7 ( JIS B1192 standard ) |
| Manufacturing technology: | both ground and rolled ball screw are available |
| Certificate: | IATF16949, ISO9001:2015; RoHS, CE compliance |
| MOQ: | 1 piece available for prototype |
| Delivery time: | Samples 10~15 days, small order 20 days,bulk order 20~30 days. |
| Packing: | Plastic bag + wooden box or according to customers' demands |
Other custom ballnuts are available upon drawing | HIWIN FSV FSW FDV FDW FSI RSI FDI RDI FSC FDC RSV RSB FSB SSV FSH etc |
Mating parts: | Nut housing,ball screw support unit WBK,BF,EK,EF,FK,FF,end maching service is available |
Notes:Above is part of ALM's ball screw models,other model or nut type is available upon drawing
How a ball screw works?
1. High transfer efficiency
Balls with free motion in the ball screw assembly transfer the force and motion between screw and nut. This transfer mode replaces the traditional transfer mode that screw shaft and nut effect directly. Therefore the minimum rolling friction takes place of the sliding friction of traditional screw. The transfer efficiency of ALM ball screw will reach more than 90%. The drive torque of transfer unit reduces to 1/3 of sliding screw. This also greatly reduces the heat release.
2. High positioning accuracy
ALM Ball screw has low heat release, small temperature increase and with actions of pre-stretch and eliminating axial clearance in the process, which make ball screw have high positioning accuracy and repeating positioning accuracy.Positioning deviation can be 0.002mm per 300mm travel.
3. Clean and smooth,excellent surface finish
ALM Ball screw has no sticky friction.ISO management systems ensure strict performance during production and experienced talent staff combing precision machine and optimized process flow causing super quality smooth ball screw.Each ball screw will go through ultrasonic before assembly.
4. Long service life
Since the strict control of ball screw groove shapes, surface hardness and material selection, the actual life of ALM ball screw is much longer.
5. Good synchronization
Due to smooth running, axial clearance elimination and consistency in manufacturing, several sets of ball screw assembly can drive the same unit or several identical parts to obtain the good synchronization.
Ball screw Application
ALM ball screws are used widely in the humanoid robots, woodworking machinery, key machine, door making machine, precision equipment or industrial machinery,defense industry, power tools, medical industry, passenger cars, wire harness cable processing, laser machine, 3D printer, custom automation equipment,linear servo actuator,3C Intelligent Manufacturing, new energy automobile etc.
Download a catalogue
https://www.autolinearmotion.com/download.html
Email or call us for a quote right now!
