Diameter 16mm Pitch 2 Ball Screw 16X2

16X2 ball screw
Material:Gcr15 or 9cr18 or SUS440C
MOQ:1 set
Application:CNC router, CNC machine
Availability:
Quantity:
  • 1602

  • ALM

  • 8483401000

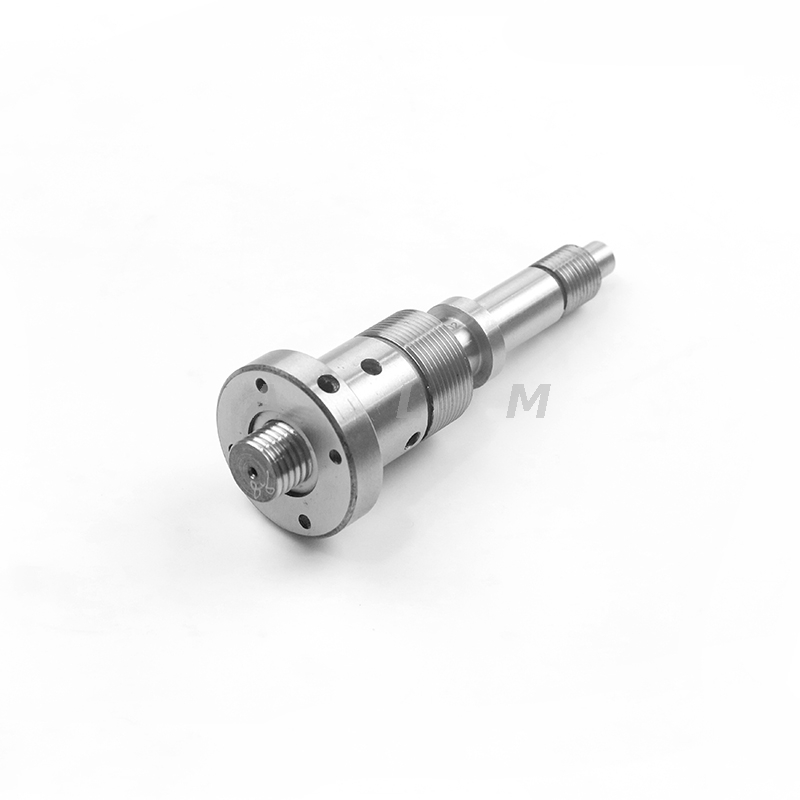

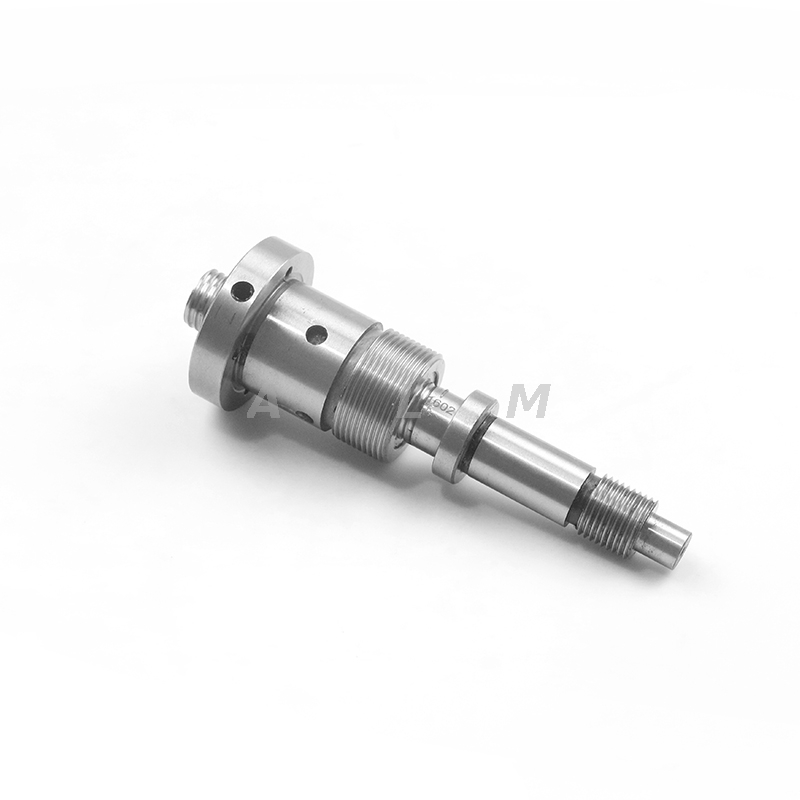

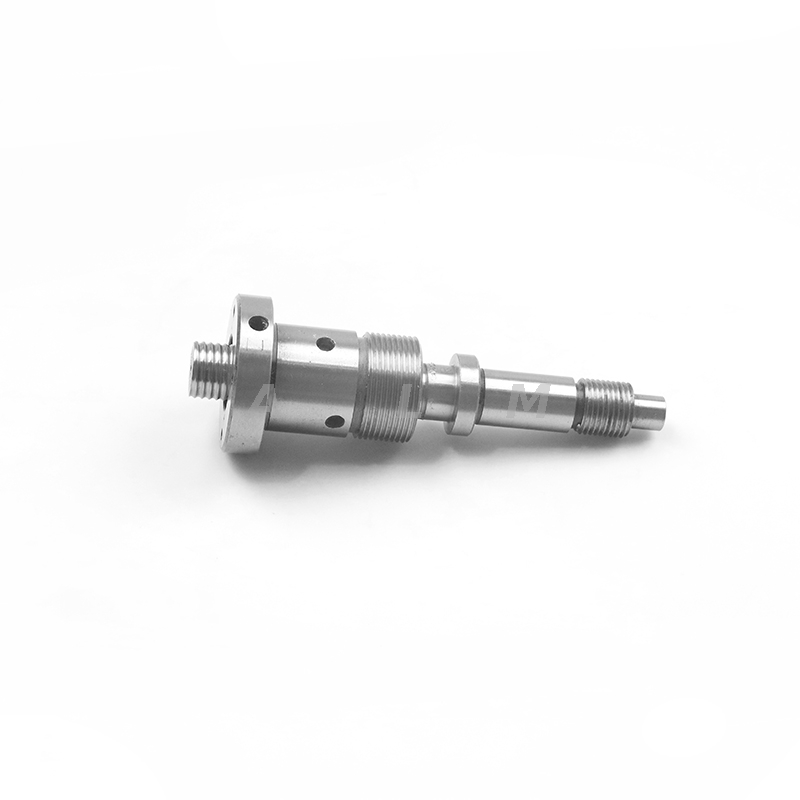

Diameter 16mm Pitch 2 Ball Screw 16X2

16mm ball screws (3)

Notes:Above is part of standard models,other model or nut type is available upon drawing



Cautions About Use of Ball Screws

Ball screw assemblies are delicate components.Therefore,extra care must be taken to prevent the ball track from damages that caused by edged component or tools.

Meanwhile, the steel ball is very easily fall out of the nut or over stroke. Don't disassemble it.


ball screw disassemble


Otherwise,the ball screw will be damaged.

To prevent steel ball fall out of the nut through the disassembly of screw and nut or over stroke, please be careful while operating.

If the steel ball falls out, please contact with ALM Linear Motion for further instruction.Do not attempt to reassemble, which might cause permanent damage to the ball screw.

If disassemble is required, please use a transfer pipe which has minor diameter than the screw

diameter to transfer the nut to prevent falling out of the steel balls.

ball screw dummy shaft


Download a catalog:

miniature ball screw-ALM.pdf
