| Quantity: | |
|---|---|
DFU2510
ALM
8483401000
Large Lead High Rigidity Ball Screw DFU2510.The type of ALM ball screw can be divided into standard ball screw and customized ball screw.The delivery time of a standard ball screw is 1 to 3 days,and that of a customized ball screw is 10 to 30 days.ALM ball screw efficiency is higher.It is worth mentioning that ALM ball screws are of high quality and affordable price,so our ball screws are widely praised.
| Diameter | 16mm~120mm |
| Lead and pitch | 4mm~20mm |
| Accuracy grade | C3~C7 ( JIS B1192 standard ) |
| Manufacturing technology | both ground and rolled ball screws are available |
| Certificate | IATF16949, ISO9001:2015; RoHS, CE compliance |
| MOQ | 1 piece available for prototype |
| Delivery time | 1~3 days. |
| Packing | Plastic bag + wooden box or according to customers' demands |
Mating parts | Nut housing,ball screw support unit WBK,BF,EK,EF,FK,FF,end maching service is available |

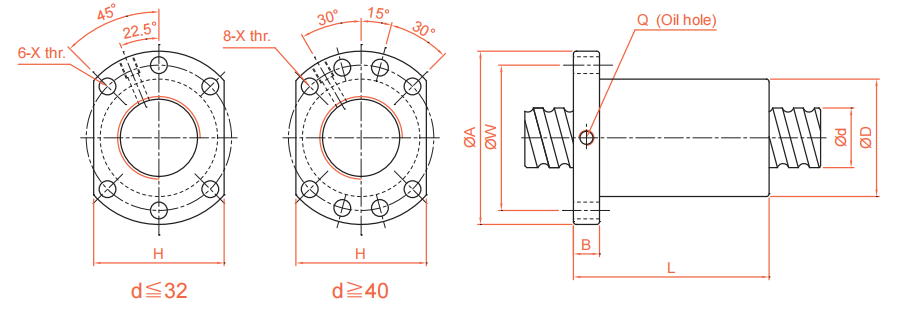

OFU/DFU（DIN 69051 FORM B）Series Ball Screw Specifications
ALM's ball screw advantages
1. High transfer efficiency
Balls with free motion in the ball screw assembly transfer the force and motion between screw and nut. This transfer mode replaces the traditional transfer mode that screw shaft and nut effect directly. Therefore the minimum rolling friction takes place of the sliding friction of traditional screw. The transfer efficiency of ALM ball screw will reach more than 90%. The drive torque of transfer unit reduces to 1/3 of sliding screw. This also greatly reduces the heat release.
2. High positioning accuracy
ALM Ball screw has low heat release, small temperature increase and with actions of pre-stretch and eliminating axial clearance in the process, which make ball screw have high positioning accuracy and repeating positioning accuracy.Positioning deviation can be 0.002mm per 300mm travel.
3. Clean and smooth,excellent surface finish
ALM Ball screw has no sticky friction.ISO management systems ensure strict performance during production and experienced talent staff combing precision machine and optimized process flow causing super quality smooth ball screw.Each ball screw will go through ultrasonic before assembly.
4. Long service life
Since the strict control of ball screw groove shapes, surface hardness and material selection, the actual life of ALM ball screw is much longer.
5. Good synchronization
Due to smooth running, axial clearance elimination and consistency in manufacturing, several sets of ball screw assembly can drive the same unit or several identical parts to obtain the good synchronization.
ALM ball Screw application
ALM ball screws are used widely in the humanoid robots,precision equipment or industrial machinery,defense industry, power tools, medical industry, passenger cars, wire harness cable processing, laser machine, 3D printer, custom automation equipment,linear servo actuator,3C Intelligent Manufacturing, new energy automobile etc.
Email or call us for a quote right now!
