| Quantity: | |
|---|---|
SFU1604
ALM
8483401000

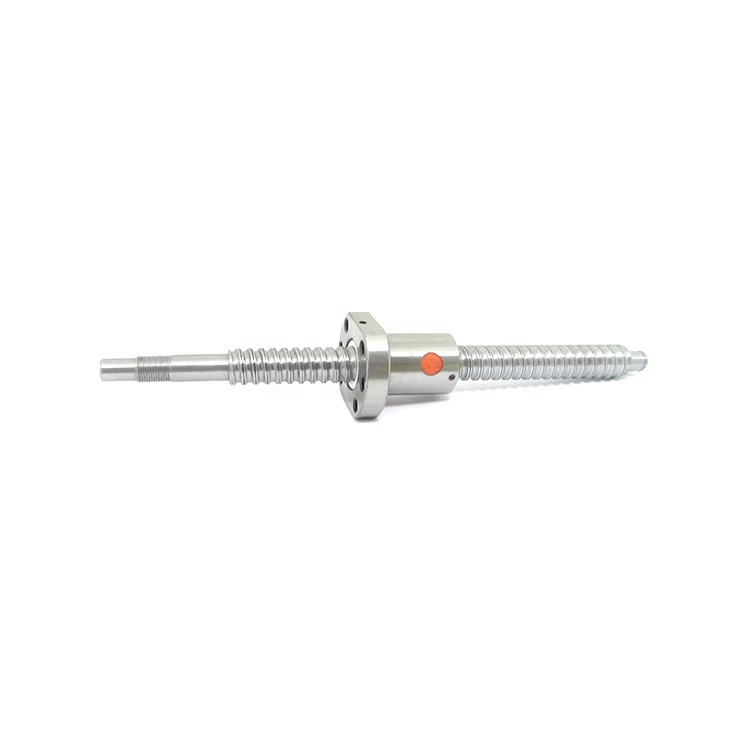

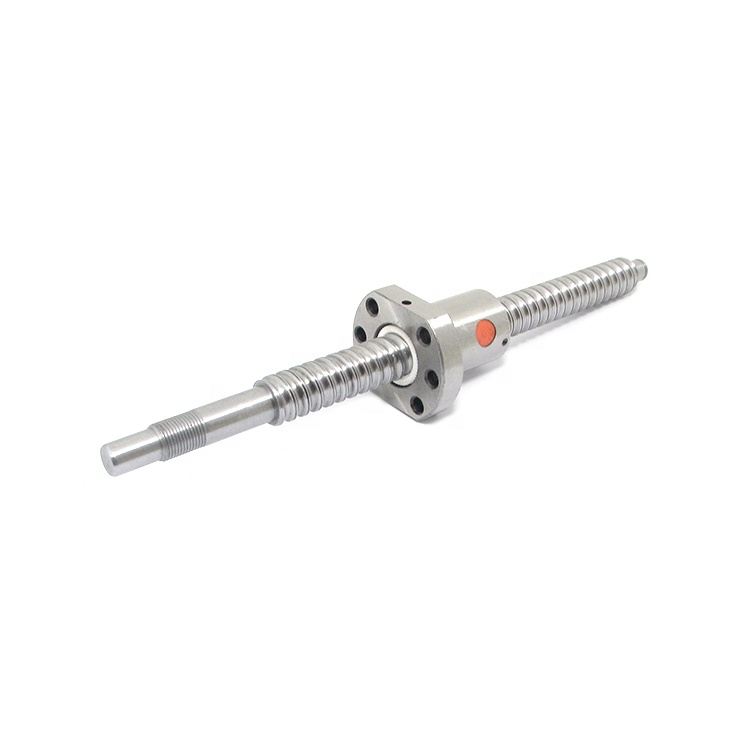

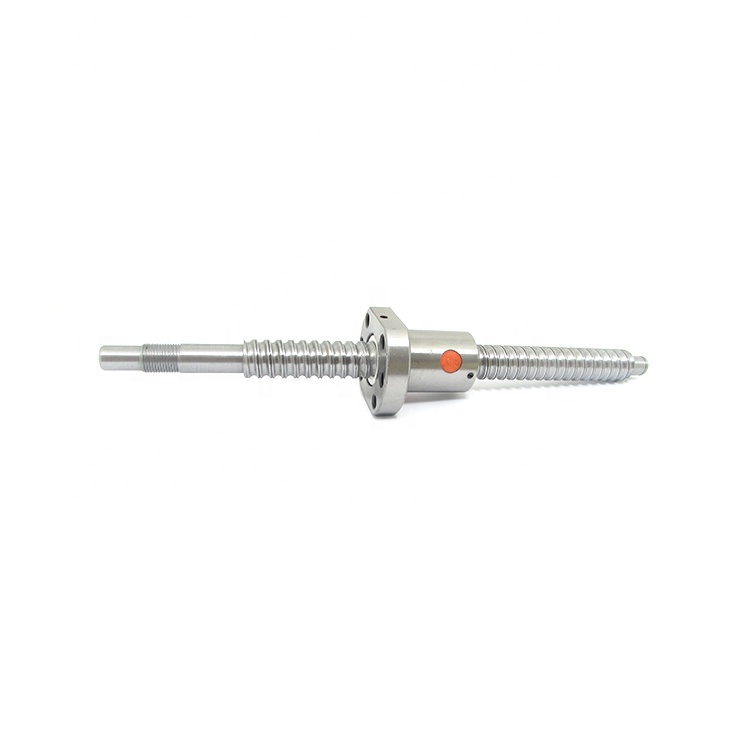

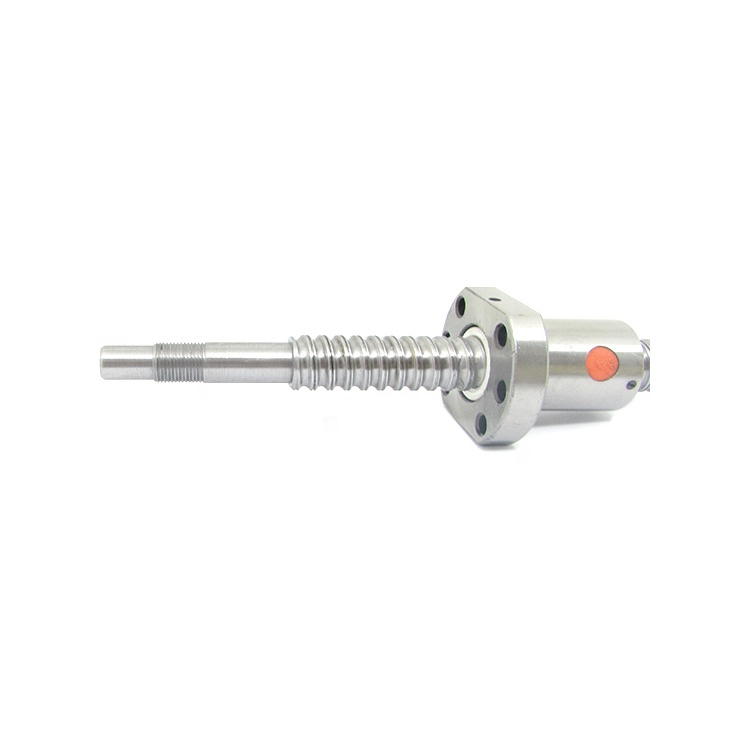

SFU1604 high quality ball screw shaft CNC ball screw
SFU series
SFU1204-4 / SFU1604-4 / SFU1605-3 /SFU1605-4 / SFU1610-3/2 / SFU2005-3 / SFU2005-4 / SFU2010-3/2 / SFU2505-3 / SFU2505-4 / SFU2510-4 / SFU2510-4/2 / SFU3205-4 / SFU3206-4 / SFU3210-4 / SFU4005-4 / SFU4010-4 / SFU5005-4 / SFU5010-4 / SFU5020-4 / SFU6310-4
DFU series
DFU1604-4 / DFU1605-3 / DFU1605-4 / DFU1610-3/2 / DFU2005-3 / DFU2005-4 / DFU2010-3/2 / DFU2505-3 / DFU2505-4 / DFU2510-4 / DFU2510-4/2 / DFU3205-4 / DFU3206-4 / DFU3210-4 / DFU4005-4 / DFU4010-4 / DFU5005-4 / DFU5010-4 / DFU5020-4 / DFU6310-4
SFE series
SFE1616-3 / SFE1616-6 / SFE1632-3 / SFE1632-6 / SFE2020-3 / SFE2020-6 / SFE2040-3 / SFE2040-6 / SFE2525-3 / SFE2525-6 / SFE2550-3 / SFE2550-6 / SFE3232-3 / SFE3232-6 / SFE3264-3 / SFE3264-6 / SFE4040-3 / SFE4040-6 / SFE5050-3 / SFE5050-6
What's ball screw advantages?
High Reliability
ALM has very stringent quality control standards covering every
production process. With proper lubrication and use, trouble-free operation for an extended period of time is possible.
Smooth Operation
The high efficiency of ball screws is vastly superior to conventional screws. The torque required is less than 30%. Linear motion can be easily changed from rotary motion.
High Rigidity and Preload
When axial play is minimized in conventional screw-nut assemblies, the actuating torque becomes excessive and the operation is not smooth. The axial play in ALM precision ball screws may be reduced to zero by preloading and a light smooth operation is still possible. therefore, both low torque and high rigidity can be obtained simultaneously.ALM ball screws have gothic arch groove profiles which allow these conditions to be achieved.
Circulation Method
Ball return tube method. (V, E, S, Y Type); Ball deflector method. (I, U, M, K Type)
High Durability
Rigidly selected materials, intensive heat treating and processing techniques, backed by years of experience, have resulted in the most durable ball screws manufactured
Application
ALM ball screws are used widely in the precision equipment or special industrial machinery. Such as electronic equipment, food machinery, packing machinery, medical machine, printer, textile machinery, the robot, CNC machine tools cars, and digital three-dimensional coordinate measuring device and so on.
Packing:In cartons or wooden cases
Shipping:
1.Sample order:DHL, FeDex, UPS VIP account with discount.So you can get favorable shipping freight.
2.Bulk order:Negotiated professional shipping agent by air or by sea.
Email or call us for a quote now!
