10mm T10x1 T10x1.5 T10x2 T10x4 Lead Screw with POM/Brass Nut

Lead time:10~30
MOQ:1 piece
Ball screw material: bearing steel
Availability:
Quantity:
  • T10x1 T10x1.5 T10x2 T10x4

  • ALM

  • 8479909090

The 10mm T10x1.5 T10x2 T10x4 lead screw is a metric trapezoidal screw. The "10mm" refers to the diameter of the lead screw,while the "T" represents the trapezoidal thread profile.The numbers following the "T10" indicate the thread lead,with options including 1mm,1.5mm,2mm,and 4mm.These lead screws are widely used in applications that require precise linear motion, such as 3D printers,CNC machines,and automation systems.


ALM Lead Screw Basic Information


Available lead screw material

ASTM1045,SUS303,SUS304,SS316,SS316L

Available lead nut material

Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type)

Available surface coating

Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated

Quality standard ISO9001:2015,CE certificate,RoHS and reach compliance
Clearance 7e,higher precision is available upon request
Custom Services Customized nuts and end machining are available upon drawing


●ALM Lead Screw Details Show


Various Lead Screw nut

10mm T10x1 T10x1.5 T10x2 T10x4 Lead Screw with POMBrass Nut


●ALM Lead Screw Video Show

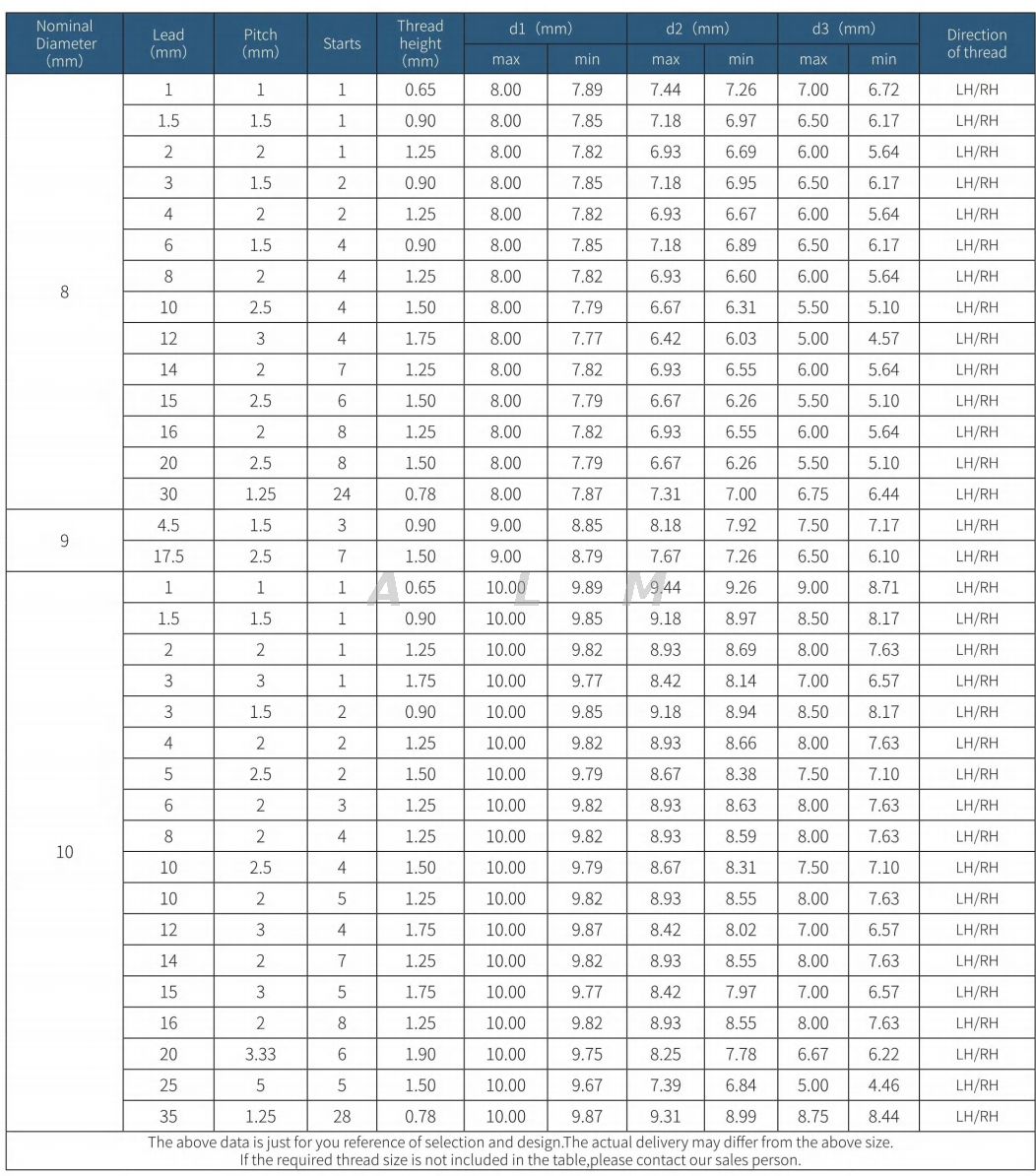

10mm Lead Screw Dimension

We support a variety of shaft end machining and nut customization.Refer to the catalog below for more lead screw model numbers.


10mm lead screw


Miniature Lead Screw Application

A miniature lead screw is a type of screw that is smaller in size and is used in various applications where precise linear motion is required. Here are some common applications of miniature lead screws:

1.Microelectronics: Miniature lead screws are used in microelectronic devices such as smartphones, tablets, and laptops. They are used to control the movement of various components, such as sliders, knobs, and switches.

2.Medical devices: Miniature lead screws are used in medical devices such as surgical robots, diagnostic equipment, and prosthetics. They provide precise and controlled linear motion for various functions, such as positioning surgical instruments or adjusting the position of medical imaging devices.

3.Aerospace and defense: Miniature lead screws are used in aerospace and defense applications, such as satellite systems, missile guidance systems, and unmanned aerial vehicles (UAVs). They are used to control the movement of antennas, sensors, and other critical components.

4.Optics and photonics: Miniature lead screws are used in optical and photonics devices, such as microscopes, telescopes, and laser systems. They are used to precisely adjust the position of lenses,mirrors, and other optical components to achieve accurate focusing and alignment.

5.Automation and robotics: Miniature lead screws are used in various automation and robotics applications,such as pick-and-place machines,3D printers,and CNC machines. They provide precise linear motion for moving robotic arms, tool heads, and other components.

6.Automotive: Miniature lead screws are used in automotive applications, such as electric power steering systems, headlight leveling systems,and seat adjustment mechanisms. They provide precise linear motion for adjusting various components in the vehicle.

ALM

Founded in year of 2005,from a small workshop KUNSHAN TIANHE BALL SCREW FACTORY,ALM group has grown fast and has four production workshops now for ball screw,lead screw,linear motor,linear actuator,linear guideways and related CNC machining.Factory area is over 15000 square meters,129 employees.Our factory is equipped with 15 automated production line.Products are 100% inspected before shipping.ALM has obtained ISO9001,IATF16949,CE,RoHS certificate. Over 25 distributors all over the world.


ALM manufactures and supplies high quality linear motion components for customers in fields of aircraft,satellite,medical, Instrumentation,Robotics,Automobile,Electrical & Electronics,Textile,Medical,Food & Beverages,General Industry and so on.With super quality and service,ALM has been widely recognized and highly valued by its high-end and picky customers,and thus remains at the top of their vendor lists.


ALM R&D Team

ALM R&D Team

ALM's office

ALM office

ALM's workshop

ALM workshop

ALM product processing

product processing

ALM inspection equipment

ALM Inspection EquipmentALM process machine


ALM's warehouse

ALM linear guideALM Product Show

ball-screw

ALM product show

ALM Exhibition

shanghai munich industry fairExhibition

Customer Visit

ALM customer visit



Patent Certificate for invention and utility model

seidal product certificate


ISO  Certificate



CE Certificate

ALM CE certificate


Excellent HighTech Enterprise

Excellent HighTech Enterprise


Leading Talents Certificate

ALM Leading Talents Certificate



1.Why can ALM be your better option for linear motion components?
●Nearly 20 years of rich manufacturing experience;

●We understand both electrical and mechanical issues. Can recommend good engineering design.

●Quality is guaranteed,We inspect everything, so you won't receive product that doesn't meet specifications. For some parts, we stock for the customer, You never have to wait.
●Easy to pay and can be trusted, We always respond to questions.
●We work on your time zone-You no need work through dinner and at night. Above all, our professional sales and after-service team ensure high efficiency communication to allow you high work efficiency and keep a good mood everyday.

2.When can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.

3.About shipping and payment:
●Shipping
Sample order: We have DHL, FedEx, UPS VIP account with discount. So you can get favorable shipping freight.
Bulk order: We have freight forwarder to ship by air, by train or by sea. You can also arrange shipping through your own shipping agent.

●Payment
LC,T/T,D/P, PayPal, Western Union, Money Gram

4.How is quality ensured?
All our processes strictly adhere to ISO9001:2015 procedures. Combining advanced equipment, from production to delivery, we have strict quality control. Our company has strong technical support and has cultivated a group of managers who are familiar with product quality, good at modern concept of management. Our production concept is “Quality has to be caused, not controlled.”


5.How to custom-made (OEM/ODM)?

If you have a new product drawing or a sample, please send to us, we’ll make our production drawing and customize it as per your requirement. We can also provide our professional advices to make your design more realized and maximize the performance. So,If you didn’t find the ideal product from our website, please email us, your inquiry will get fast response.


6.What's your Delivery Time?

●Standard items: Ready in stock

●Customized items:7-20days

●For urgent case, We can make the delivery ASAP with guaranteed quality.
