10mm T10x4 T10x5 T10x6 T10x8 Right And Left Hand Lead Screw

Lead time:10~30
MOQ:1 piece
Ball screw material: bearing steel
  • T10x4 T10x5 T10x6 T10x8

  • ALM

  • 8479909090

This 10mm lead screw is bi-directional,which means that it can be rotated in both clockwise and counterclockwise directions to move an object along its length. This type of right and left hand lead screw is commonly used in various applications such as linear actuators,CNC machines,3D printers,and robotics.

ALM Lead Screw Basic Information

Available lead screw material


Available lead nut material

Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type)

Available surface coating

Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated

Quality standard ISO9001:2015,CE certificate,RoHS and reach compliance
Clearance 7e,higher precision is available upon request
Custom Services Customized nuts and end machining are available upon drawing

●ALM Lead Screw Details Show

Various Lead Screw nut

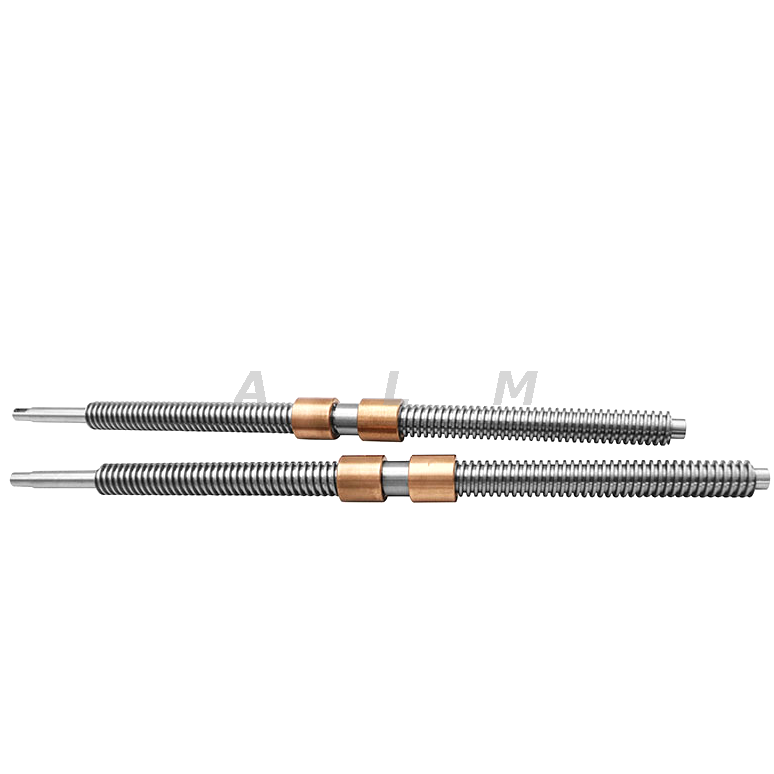

round nut bi-directional lead screw

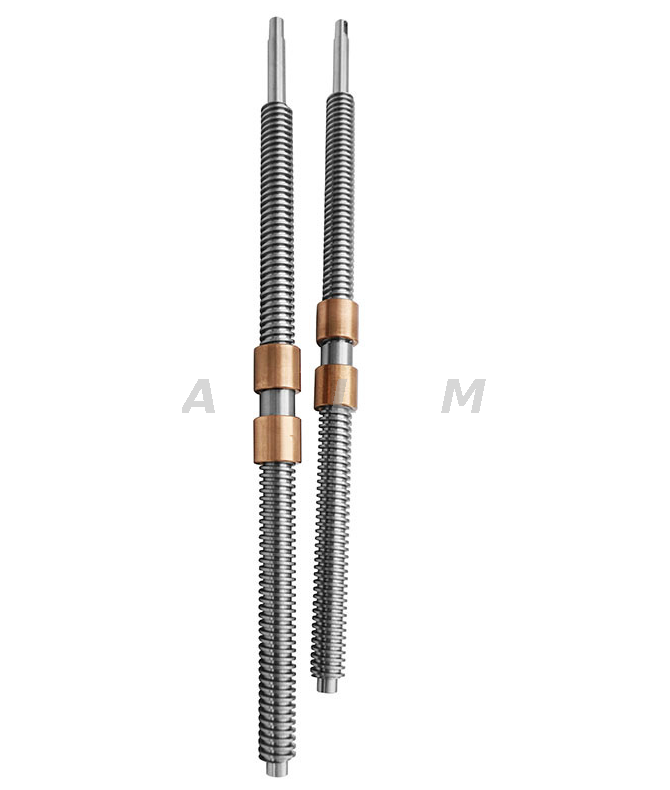

T10x4 T10x5 bi-directional lead screw T10x6 T10x8 Right And Left Hand Lead Screw

●ALM Lead Screw Video Show

10mm Bi-directional Lead Screw Dimension

We support a variety of shaft end machining and nut customization.Refer to the catalog below for more right and left hand lead screw model numbers.  Lead screw catalog-ALM.pdf

10mm lead screw

Benefits of 10mm bi-directional Lead Screw

1.Reversibility: Bi-directional lead screws can move in both directions, allowing for bidirectional motion. This is particularly useful in applications where the load needs to be moved back and forth.

2.Increased efficiency: Bi-directional lead screws have a higher efficiency compared to bi-directional lead screws. This means that they require less power to drive and can convert a higher percentage of input torque into linear motion.

3.Simplified design:
Bi-directional lead screws eliminate the need for additional mechanisms, such as clutches or gearboxes, to enable bidirectional motion. This simplifies the overall design and reduces the number of components required.

4.Flexibility: Bi-directional lead screws offer greater flexibility in terms of positioning and control. They allow for precise and accurate positioning in both directions, making them suitable for applications that require fine adjustments or precise control.

5.Cost-effective: Bi-directional lead screws can be more cost-effective in certain applications. Since they eliminate the need for additional mechanisms, they can reduce the overall cost of the system.

Overall, the bi-directional capability of lead screws provides greater versatility, efficiency, and cost-effectiveness in various applications.
