T14x2 T14x3 T14x4 T14x6 T14x8
ALM
8479909090
Our trapezoid lead screws diameter from 2mm~120mm and the lead nut material can be POM,brass,bronze,nylon and so on.The lead screw shaft material can be stainless steel and carbon steel.ALM trapezoidal screws have many advantages,such as self lubrication,long service life and anti-corrision and so on.The lead screw nut and shaft end machining can be customized according to your drawings.
●ALM Lead Screw Basic Information
Available lead screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
Available lead nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
Available surface coating | Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated |
Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
Clearance | 7e,higher precision is available upon request |
Custom Services | Customized nuts and end machining are available upon drawing |
●ALM Lead Screw Video Show

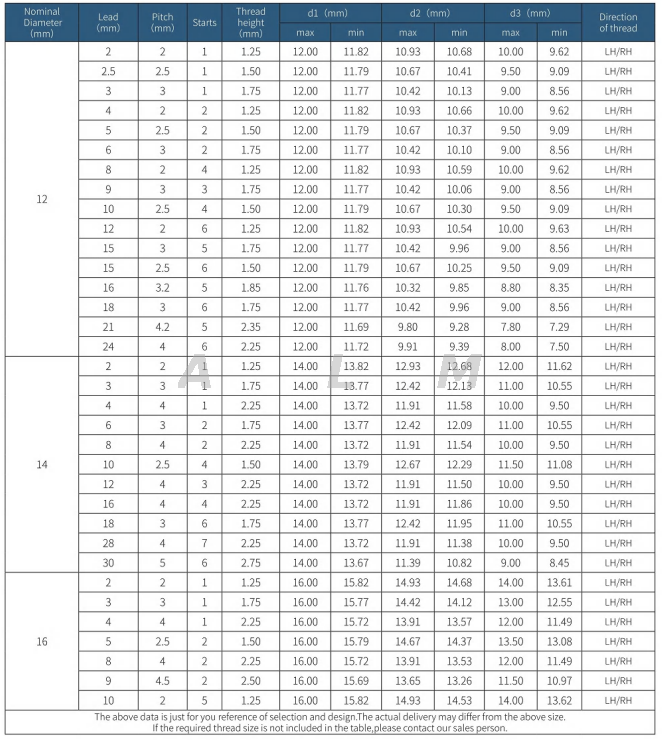

●14mm Diameter Lead Screw Dimension
The lead screw model can be Tr14x2 Tr14x3 Tr14x4 Tr14x6 Tr14x8 Tr14x10 Tr14x12 Tr14x16 Tr14x8 Tr14x10 Tr14x12 Tr14x16 Tr14x18 Tr14x28 Tr14x30.The lead screw lead can be 2mm 3mm 4mm 6mm 8mm 10mm 12mm 16mm 18mm 28mm 30mm.Refer to the catalog below for more lead screw model numbers.
●Lead Screw VS Ball Screw
1.Efficiency: Ball screws are more efficient than lead screws. This is because the ball bearings in a ball screw reduce friction and allow for smoother movement, resulting in less energy loss.
2.Precision: Ball screws offer higher precision than lead screws. The ball bearings in a ball screw help to reduce backlash and improve accuracy, making them ideal for applications that require high precision.
3.Load capacity: Ball screws can handle higher loads than lead screws. This is due to the use of ball bearings,which distribute the load evenly across the screw, reducing the risk of deformation or failure.
4.Cost: Ball screws are more expensive than lead screws. This is due to the more complex design and manufacturing process required for ball screws.
Overall,ball screws are a better choice for applications that require high precision and load capacity,while lead screws are more suitable for applications that don't require as much precision or load capacity and are more cost-effective.
Our trapezoid lead screws diameter from 2mm~120mm and the lead nut material can be POM,brass,bronze,nylon and so on.The lead screw shaft material can be stainless steel and carbon steel.ALM trapezoidal screws have many advantages,such as self lubrication,long service life and anti-corrision and so on.The lead screw nut and shaft end machining can be customized according to your drawings.
●ALM Lead Screw Basic Information
Available lead screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
Available lead nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
Available surface coating | Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated |
Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
Clearance | 7e,higher precision is available upon request |
Custom Services | Customized nuts and end machining are available upon drawing |
●ALM Lead Screw Video Show
●14mm Diameter Lead Screw Dimension
The lead screw model can be Tr14x2 Tr14x3 Tr14x4 Tr14x6 Tr14x8 Tr14x10 Tr14x12 Tr14x16 Tr14x8 Tr14x10 Tr14x12 Tr14x16 Tr14x18 Tr14x28 Tr14x30.The lead screw lead can be 2mm 3mm 4mm 6mm 8mm 10mm 12mm 16mm 18mm 28mm 30mm.Refer to the catalog below for more lead screw model numbers.
●Lead Screw VS Ball Screw
1.Efficiency: Ball screws are more efficient than lead screws. This is because the ball bearings in a ball screw reduce friction and allow for smoother movement, resulting in less energy loss.
2.Precision: Ball screws offer higher precision than lead screws. The ball bearings in a ball screw help to reduce backlash and improve accuracy, making them ideal for applications that require high precision.
3.Load capacity: Ball screws can handle higher loads than lead screws. This is due to the use of ball bearings,which distribute the load evenly across the screw, reducing the risk of deformation or failure.
4.Cost: Ball screws are more expensive than lead screws. This is due to the more complex design and manufacturing process required for ball screws.
Overall,ball screws are a better choice for applications that require high precision and load capacity,while lead screws are more suitable for applications that don't require as much precision or load capacity and are more cost-effective.
