| Quantity: | |
|---|---|

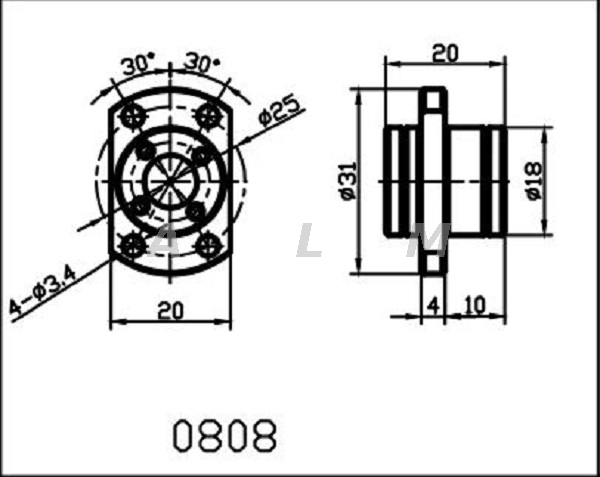

0808
ALM
8483401000
Ball Screw Nut Selection:
(1) Series
When making selection of series, please take demanded accuracy, intended delivery time,dimensions( the outside diameter of screw, ratio of lead/ the outside diameter of screw) preload and etc into consideration.
(2) Circulation type
Selection of circulation type : Please consider the efficiency of screw nut's mounting space. Email us to learn the advantage of each circulation type.
(3) Number of loop circuits
Performance and service life should be considered when selecting number of loop circuits.
(4) Shape of flanges (FLANGE)
Please make selection based on the available space for the installation of nuts.
(5) Oil hole
Oil hoIes are provided for the precision ball screws, please use them during machine assembling
and regular furnishing.

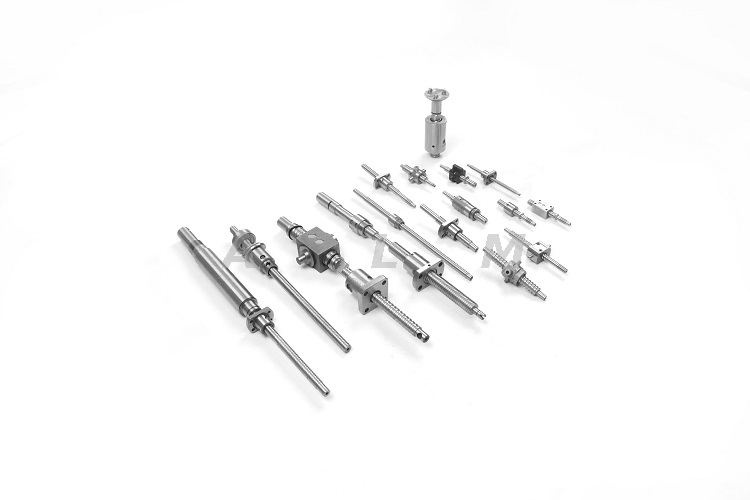

Not like the other manufacturer,ALM can not only produce ground ball screws,but also the rolled types.
Rolled ball screws range:Diameter 4mm to 120mm.
Popular items:0401, 0601, 0602, 0606, 0801, 0802.5, 0805, 0808, 0812,1002, 1202, 1205, 1210
Accuracy can be C3 C5 C7
Lead time:3~10 days
Ground ball screws range:Diameter 3mm to 120mm.
Accuracy can be C1 C3 C5 C7
Lead time:10~30 days
Cautions About Use of Ball Screws:Ball screw assemblies are delicate components.Therefore,extra care must be taken to prevent the ball track from damages that caused by edged component or tools.
Meanwhile, the steel ball is very easily fall out of the nut or over stroke. Don't disassemble it.
Otherwise,the ball screw will be damaged.
To prevent steel ball fall out of the nut through the disassembly of screw and nut or over stroke, please be careful while operating.
If the steel ball falls out, please contact with ALM Linear Motion for further instruction.Do not attempt to reassemble, which might cause permanent damage to the ball screw.
If disassemble is required, please use a transfer pipe which has minor diameter than the screw
diameter to transfer the nut to prevent falling out of the steel balls.
miniature series C3 C5 C7 ball screw-ALM 3.31M.pdf
Email or call us for a quote right now!
