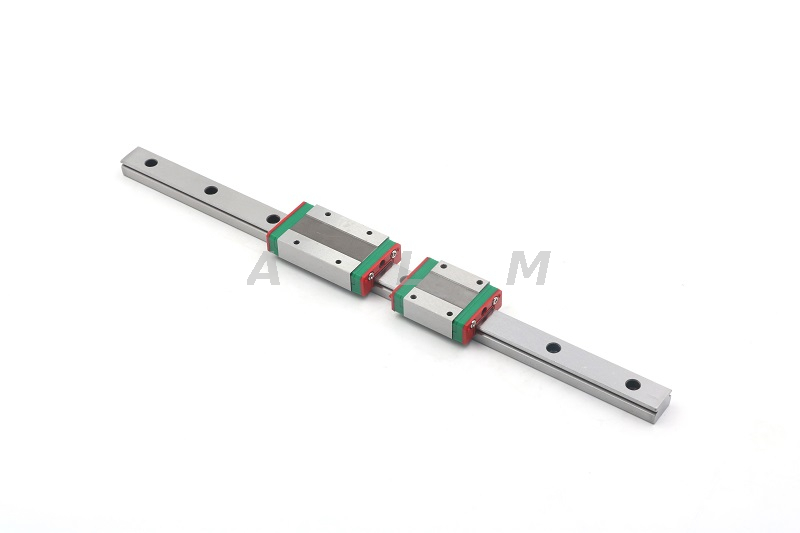

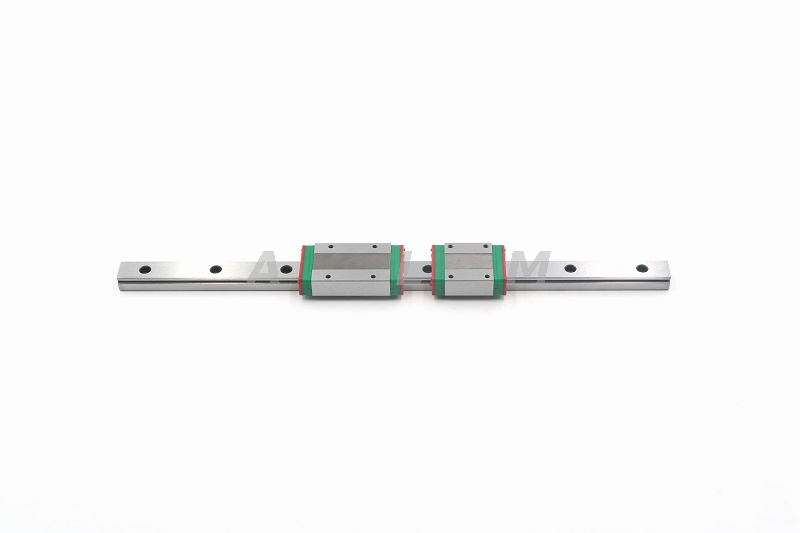

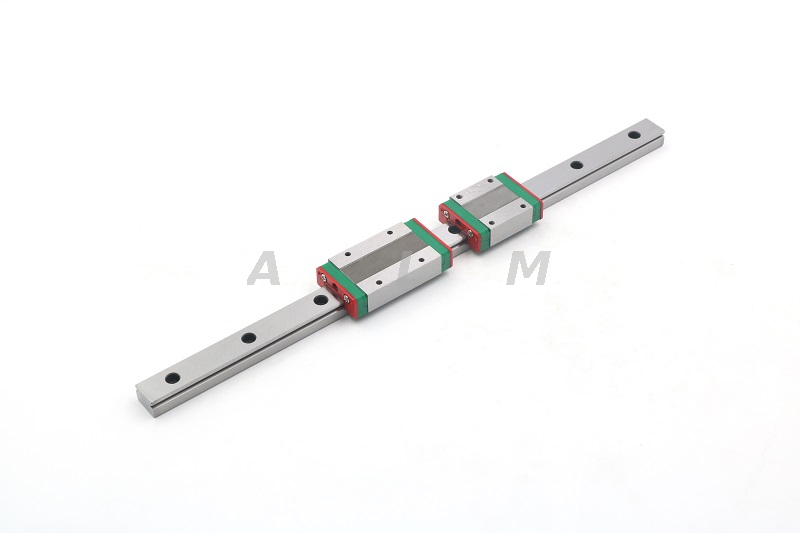

ALM Miniature Linear Guide MGN15C

ALM Miniature Linear Guide MGN15C

High quality same dimension to replace original HIWIN linear guideways.

Original HIWIN linear guides and block also available.

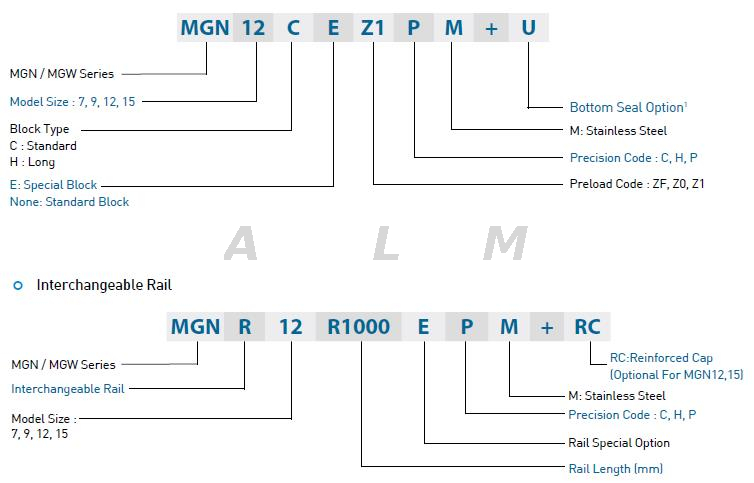

Model Number of MGN Series

MGN series linear guideway can be classified into non-interchangeable and interchangeable types. The

sizes of two types are the same. The interchangeable type is more convenient due to rails can be replaced. However,

its precision is less than non-interchangeable type. Because of strict dimensional control, the interchangeable type

linear guideway is a smart choice for customers when rails don’t need to be paired for another axis. The model

number contains the information of the size, type, accuracy class, preload class, and so on.

MGN linear guideways application:

MGN series can be used in many fields, such as semiconductor equipment, PCB assembly equipment, medical

equipment, robotics, measuring equipment, office automation equipment, and other miniature sliding mechinery.

ALM linear guide cad download:

Linear Guideway catalog-ALM.pdf

https://www.autolinearmotion.com/download.html
