| Quantity: | |
|---|---|

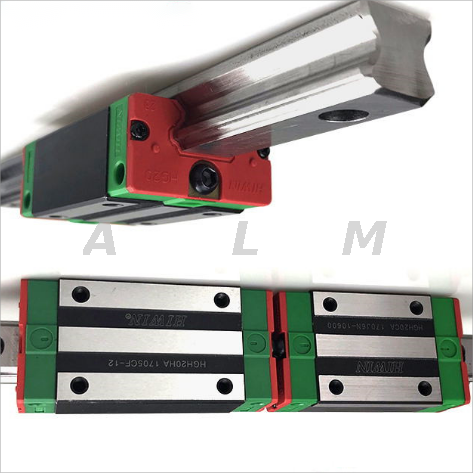

HGH20HA
ALM
8483401000
●Original HIWIN Linear Guideway
The main components of linear guide are not complicated,among which the core structure is the slider,rolling steel ball and guide main body.The addition of rolling steel ball transforms the linear guide from the form of sliding friction to the form of rolling friction so that the load platform can realize the linear reciprocating motion with higher precision along the direction set by the guide rail with less loss.ALM provides high quality and high precision HIWIN,THK,PMI and other well-known brands linear guide.
| Material | Bearing steel,S55C |
| Accuracy grade | C,H,P,SP,UP |
| Certificates | ISO9001:2015,CE certificate,RoHS and reach compliance |
| MOQ | 1 piece |
| Lead time | 5~15 days |

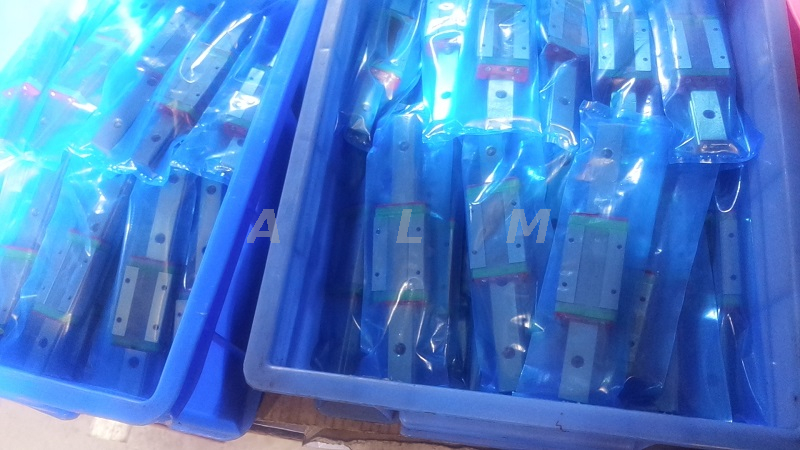

| Packing | Carton+Plastic bag + Wooden box or according to customers' demands |
| Advantages | High Precision,Large Load Capacity,Low Noise,High Rigidity |
●ALM Linear Guideway Video Show
Featuring a compact and lightweight design,our linear guides are easy to install and maintain,making it the ideal choice for projects that require precision linear motion.
●ALM Linear Guide Rail Dimension
●Precaution of Using Linear Guides
Corrosion prevention
When taking the linear guide rail directly by hand,it is necessary to fully wash the sweat off the hand and apply high quality mineral oil before operation.In the rainy season and summer,it is especially necessary to pay attention to rust prevention.
Keep the environment clean
Keep the linear guide and its surrounding environment clean even if the invisible dust enters the linear guide,it will increase the wear,vibration and noise of the linear guide.
Install carefully
Linear guide in the use of installation should be careful,do not allow strong stamping,do not allow the hammer directly hit the linear guide,do not allow the transfer of pressure through the rolling body.
The installation tools must be appropriate
Use appropriate and accurate installation tools for linear guides.Use special tools as far as possible,and try to avoid using fabrics and staple fibers.
Linear Guideway catalog-ALM-210725 -V2.pdf
