H20SR
ALM
8483401000
The H20SR linear bearing block is crafted from high-grade materials to ensure exceptional strength,durability,and resistance to wear and tear.Its compact and lightweight design allows for easy installation and integration into complex systems,making the linear guideway a popular choice among engineers and designers.
Material | Bearing steel,S55C |
Accuracy grade | C,H,P |
Certificates | ISO9001:2015,CE certificate,RoHS and reach compliance |
MOQ | 1 piece |
Lead time | 5~15 days |
Packing | Carton+Plastic bag + Wooden box or according to customers' demands |
Advantages | High Precision,Large Load Capacity,Low Noise,High Rigidity |
ALM Linear Guide Video Show |
Structure of Linear Guides |

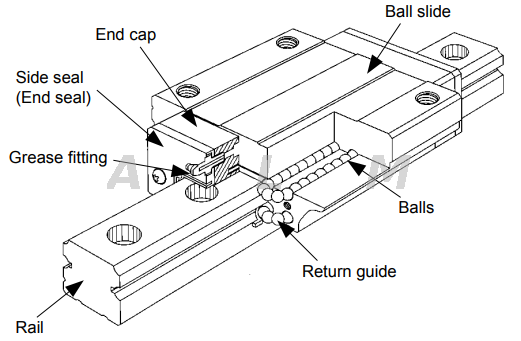

The linear guides are composed of a mechanism that uses steel balls to allow for an infinite stroke of ball slides.The balls move along a ball groove on a rail and ball slide,and are collected at point A by the end cap.The end cap then directs the balls to change direction and move through a circular hole in the ball slide.The balls continue to circulate through the hole and return to the other end of the ball slide,ultimately returning to the ball grooves of the rail and ball slide.This process allows for an endless circulation motion of the steel balls.
