Availability: | |
---|---|
Quantity: | |
1002
ALM
8483900090

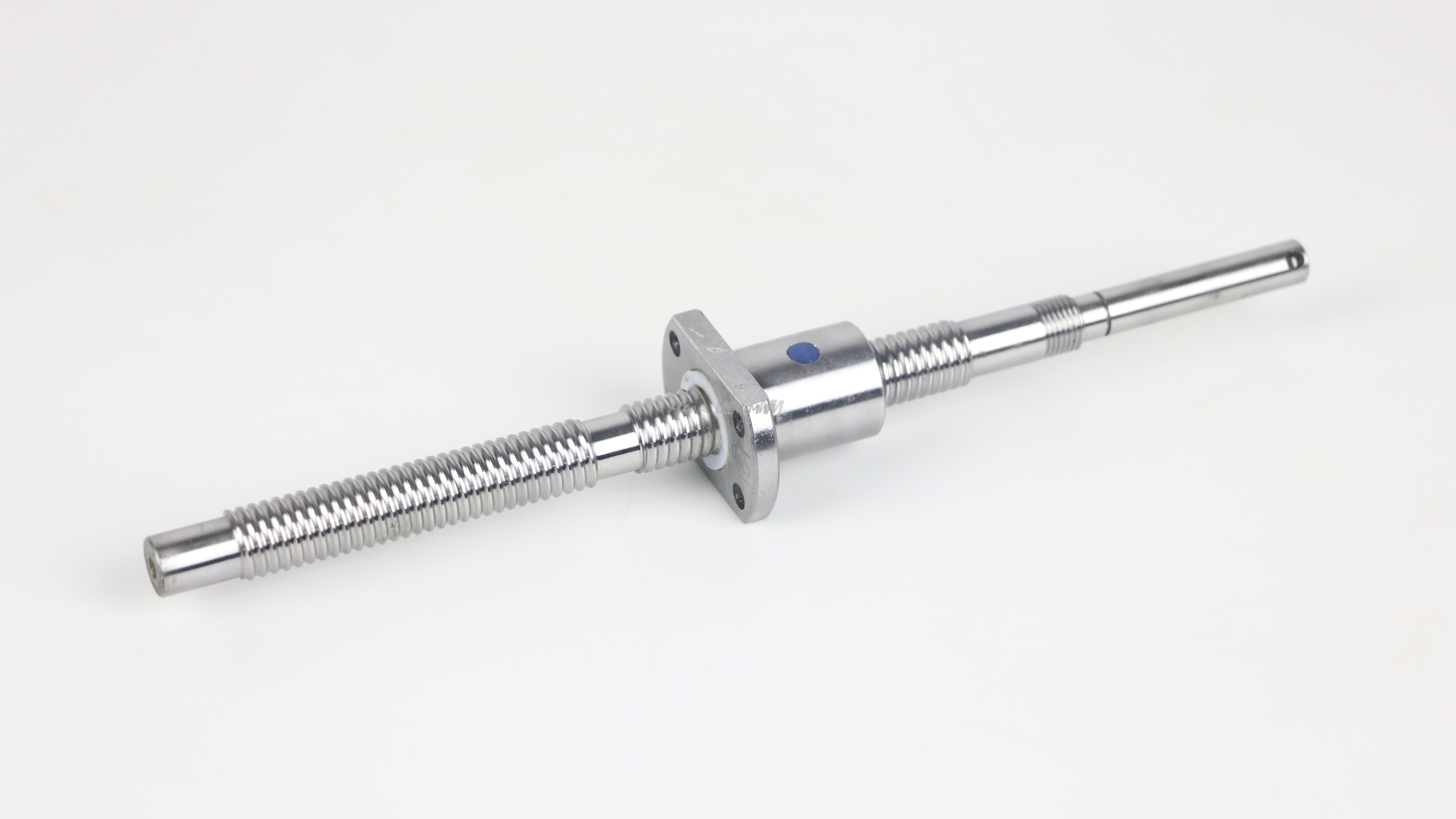

Miniature Ball Screw 1002 for CNC Grinding Machine.Balls with free motion in the ball screw assembly transfer the force and motion between screw and nut.This transfer mode replaces the traditional transfer mode that screw shaft and nut effect directly.Therefore the minimum rolling friction takes place of the sliding friction of traditional screw.The transfer efficiency of ALM ball screw will reach more than 90%.The drive torque of transfer unit reduces to 1/3 of sliding screw.This also greatly reduces the heat release.
Material | Gcr15 or 9cr18 |
Accuracy grade | C3 C5 C7 |
MOQ | 1 piece available for test |
Delivery time | Samples 10~15 days, small order 20 days,bulk order 20~30 days. |
Packing | Plastic bag + wooden box or according to customers' demands |
Other models | 0401, 0501, 0502, 0601, 0602, 0801, 0802, 0803, 0804, 0805 1001, 1002, 1003, 1004, 1201, 1202, 1203, 1204, 1205, 1210, 1402, 1403, 1404, 1405, 1602, 1603, 1604, 1605, 1608, 1610, 2002, 2003, 2004, 2005, 2006, 2010, 2020, 2502, 2503, 2504, 2505, 2510, 2512, 2525, 3205, 3206, 3208, 3210, 3212, 3216, 4005, 4008, 4010, 4012, 4016, 5005, 5010, 5012, 5016, 5020, 6310, 6312, 6316, 6320, 8010, 8016, 8020, etc |
Mating parts | Nut housing,ball screw support BK,BF,EK,EF,FK,FF,end maching service is available |
Notes:Above is part of standard models,other model or nut type is available upon drawing
ASF Series Ball Screw Specification |
Our Advantages |
Common Ball Screw Terms Explained |
1.Lead and Pitch
Lead and spacing are a good example of related but different specifications.The Lead refers to the linear distance traveled for each complete turn of the screw,while the pitch is the distance between the screw threads.These terms are often used interchangeably,and for single-start screws(as defined below),lead and pitch are equivalent.However,for screws with multiple starts,the lead and pitch are not equal.
2.Circuits and Turns
Also related is the concept of ball circuits and turns.A ball circuit is a closed path of recirculating balls."Turns"refers to the number of trips the ball can make around the screw shaft before recirculating.The relationship between the Circuits and the turns is affected by the recirculation method.The return cue uses either a deflector or a threaded to threaded(also known as a cross)method to recirculate each turn of the ball individually.So the number of turns is equal to the number of circuits.
Internal Deflector Recirculation
Recirculating balls can pass through multiple threads as the ball returns through an internal channel or an external tube,so a Circuit can have multiple ball turns.In other words,the ball bearings go several times around the screw shaft before recirculating.Multi-start ball screw assemblies usually use the inner channel recirculation method.The nut body can be designed to have multiple Circuits by incorporating multiple internal recirculation channels into it.
Internal End Cap Recirculation
External Tube Recirculation
3.Starts(and Lead revisited)
Return to the lead for a minute.This is not only an important specification for linear travel and speed,but also because the lead of the ball screw determines how many balls are in the load zone(in contact with the screw shaft and ball nut)and therefore has a direct impact on the load capacity.
Given the geometry of the screw assembly,it makes sense that as the screw lead gets larger,the number of rails inside the ball nut gets smaller,and so there are fewer balls to carry the load. Although larger lead screws provide longer travel per turn and higher speeds,their ability to deliver high load capacity is compromised.In theory,it is possible to increase the number of ball tracks by extending the ball nuts,but manufacturing constraints and limitations on the length of the ball nuts make this an impractical solution.
To solve the problem of fewer turns in long lead assemblies,ball screws and nuts can be manufactured with multiple "starter" or ball tracks.This puts more ball bearings into the load bearing area and increases the load capacity.
Single and Double start screw
Multiple ball screw has safety advantages over single starting screw.If one ball track is damaged or tired,balls in other tracks can help prevent catastrophic failure.Furthermore,when a single-starting ball nut is used with a multi-starting screw shaft,the assembly can be refurbished by replacing only the ball nut and not the screw shaft.The new ball nuts are mounted on existing screws in unused rails,saving cost and avoiding the need to completely remove the screw system.
While this may seem like a semantic exercise,understanding these terms and the differences between them can help designers and engineers avoid incorrect assumptions about ball screw operation and performance.
Miniature Ball Screw 1002 for CNC Grinding Machine.Balls with free motion in the ball screw assembly transfer the force and motion between screw and nut.This transfer mode replaces the traditional transfer mode that screw shaft and nut effect directly.Therefore the minimum rolling friction takes place of the sliding friction of traditional screw.The transfer efficiency of ALM ball screw will reach more than 90%.The drive torque of transfer unit reduces to 1/3 of sliding screw.This also greatly reduces the heat release.
Material | Gcr15 or 9cr18 |
Accuracy grade | C3 C5 C7 |
MOQ | 1 piece available for test |
Delivery time | Samples 10~15 days, small order 20 days,bulk order 20~30 days. |
Packing | Plastic bag + wooden box or according to customers' demands |
Other models | 0401, 0501, 0502, 0601, 0602, 0801, 0802, 0803, 0804, 0805 1001, 1002, 1003, 1004, 1201, 1202, 1203, 1204, 1205, 1210, 1402, 1403, 1404, 1405, 1602, 1603, 1604, 1605, 1608, 1610, 2002, 2003, 2004, 2005, 2006, 2010, 2020, 2502, 2503, 2504, 2505, 2510, 2512, 2525, 3205, 3206, 3208, 3210, 3212, 3216, 4005, 4008, 4010, 4012, 4016, 5005, 5010, 5012, 5016, 5020, 6310, 6312, 6316, 6320, 8010, 8016, 8020, etc |
Mating parts | Nut housing,ball screw support BK,BF,EK,EF,FK,FF,end maching service is available |
Notes:Above is part of standard models,other model or nut type is available upon drawing
ASF Series Ball Screw Specification |
Our Advantages |
Common Ball Screw Terms Explained |
1.Lead and Pitch
Lead and spacing are a good example of related but different specifications.The Lead refers to the linear distance traveled for each complete turn of the screw,while the pitch is the distance between the screw threads.These terms are often used interchangeably,and for single-start screws(as defined below),lead and pitch are equivalent.However,for screws with multiple starts,the lead and pitch are not equal.
2.Circuits and Turns
Also related is the concept of ball circuits and turns.A ball circuit is a closed path of recirculating balls."Turns"refers to the number of trips the ball can make around the screw shaft before recirculating.The relationship between the Circuits and the turns is affected by the recirculation method.The return cue uses either a deflector or a threaded to threaded(also known as a cross)method to recirculate each turn of the ball individually.So the number of turns is equal to the number of circuits.
Internal Deflector Recirculation
Recirculating balls can pass through multiple threads as the ball returns through an internal channel or an external tube,so a Circuit can have multiple ball turns.In other words,the ball bearings go several times around the screw shaft before recirculating.Multi-start ball screw assemblies usually use the inner channel recirculation method.The nut body can be designed to have multiple Circuits by incorporating multiple internal recirculation channels into it.
Internal End Cap Recirculation
External Tube Recirculation
3.Starts(and Lead revisited)
Return to the lead for a minute.This is not only an important specification for linear travel and speed,but also because the lead of the ball screw determines how many balls are in the load zone(in contact with the screw shaft and ball nut)and therefore has a direct impact on the load capacity.
Given the geometry of the screw assembly,it makes sense that as the screw lead gets larger,the number of rails inside the ball nut gets smaller,and so there are fewer balls to carry the load. Although larger lead screws provide longer travel per turn and higher speeds,their ability to deliver high load capacity is compromised.In theory,it is possible to increase the number of ball tracks by extending the ball nuts,but manufacturing constraints and limitations on the length of the ball nuts make this an impractical solution.
To solve the problem of fewer turns in long lead assemblies,ball screws and nuts can be manufactured with multiple "starter" or ball tracks.This puts more ball bearings into the load bearing area and increases the load capacity.
Single and Double start screw
Multiple ball screw has safety advantages over single starting screw.If one ball track is damaged or tired,balls in other tracks can help prevent catastrophic failure.Furthermore,when a single-starting ball nut is used with a multi-starting screw shaft,the assembly can be refurbished by replacing only the ball nut and not the screw shaft.The new ball nuts are mounted on existing screws in unused rails,saving cost and avoiding the need to completely remove the screw system.
While this may seem like a semantic exercise,understanding these terms and the differences between them can help designers and engineers avoid incorrect assumptions about ball screw operation and performance.
