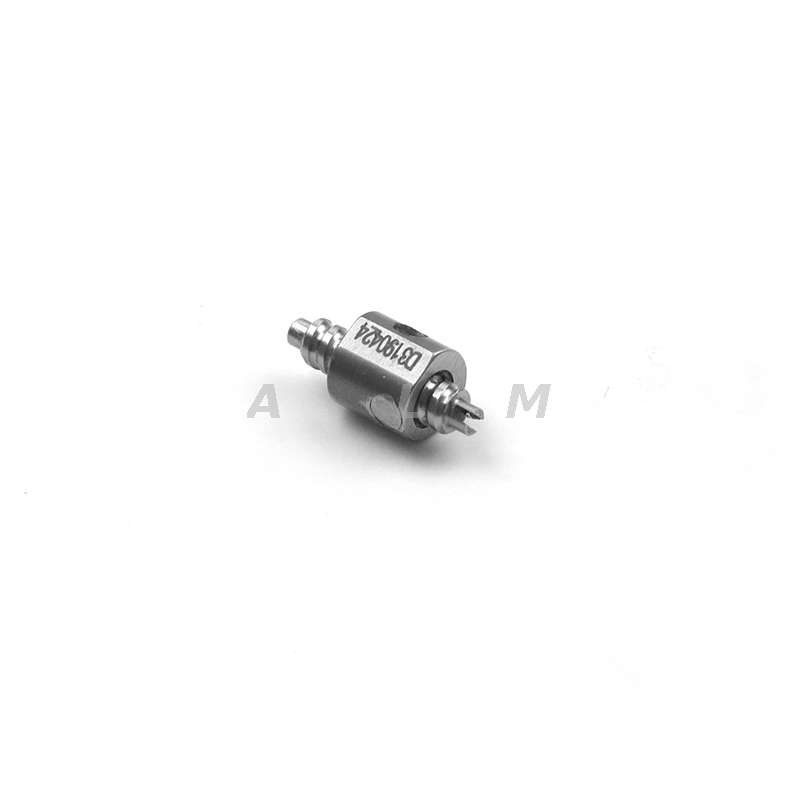

Diameter 5mm Lead 2mm Ball Screw 5X2

Wide application
Short delivery lead time
Material:Gcr15 or 9cr18 or SUS440C
MOQ:1 set
Availability:
Quantity:
  • 5X2

  • ALM

  • 8483401000

Diameter 5mm Lead 2mm Ball Screw 5X2.ALM micro ball screws are widely used for CNC router, humanoid robotics, high precision lathe, precise automation, fetch robotics, machine tools and so on.ALM has been specializing in screw manufacturing for 16 years,Outstanding production and quality control techniques have enable ALM to become the global volume manufacturer of screw products.

ALM ball screw



ALM ball screw


Miniature ball screw diameter:

3mm~16mm

Lead and pitch: 0.5mm~20mm
Accuracy grade: C0~C7 ( JIS B1192 standard )
Manufacturing technology:

both ground and rolled ball screw are available

Certificate: IATF16949, ISO9001:2015; RoHS, CE compliance
MOQ:

1 piece available for prototype

Delivery time:

Samples 10~15 days, small order 20 days,bulk order 20~30 days.

Packing:

Plastic bag + wooden box or according to customers' demands


Other models:

0401, 0501, 0502, 0601, 0602, 0801, 0802, 0803, 0804, 0805 1001, 1002, 1003, 1004, 1201, 1202, 1203, 1204, 1205, 1210, 1402, 1403, 1404, 1405, 1602, 1603, 1604, 1605, 1608, 1610 etc.

Mating parts:

Nut housing,ball screw support unit WBK,BF,EK,EF,FK,FF,end maching service is available


Notes:Above is part of standard models,other model or nut type is available upon drawing



How a ball screw works?


Ball screw application


ALM's mini ball screw advantages


1. High transfer efficiency

Balls with free motion in the ball screw assembly transfer the force and motion between screw and nut. This transfer mode replaces the traditional transfer mode that screw shaft and nut effect directly. Therefore the minimum rolling friction takes place of the sliding friction of traditional screw. The transfer efficiency of ALM ball screw will reach more than 90%. The drive torque of transfer unit reduces to 1/3 of sliding screw. This also greatly reduces the heat release.


2. High positioning accuracy
ALM Ball screw has low heat release, small temperature increase and with actions of pre-stretch and eliminating axial clearance in the process, which make ball screw have high positioning accuracy and repeating positioning accuracy.Positioning deviation can be 0.002mm per 300mm travel.


3. Clean and smooth,excellent surface finish
ALM Ball screw has no sticky friction.ISO management systems ensure strict performance during production and experienced talent staff combing precision machine and optimized process flow causing super quality smooth ball screw.Each ball screw will go through ultrasonic before assembly.


4. Long service life
Since the strict control of ball screw groove shapes, surface hardness and material selection, the actual life of ALM ball screw is much longer.


5. Good synchronization
Due to smooth running, axial clearance elimination and consistency in manufacturing, several sets of ball screw assembly can drive the same unit or several identical parts to obtain the good synchronization.



 Miniature Ball screw Application


ALM mini ball screws are used widely in the humanoid robots,precision equipment or industrial machinery,defense industry, power tools, medical industry, passenger cars, wire harness cable processing, laser machine, 3D printer, custom automation equipment,linear servo actuator,3C Intelligent Manufacturing, new energy automobile etc.




 Email or call us for a quote right now!
