| Quantity: | |
|---|---|
25x25
ALM
8479909090

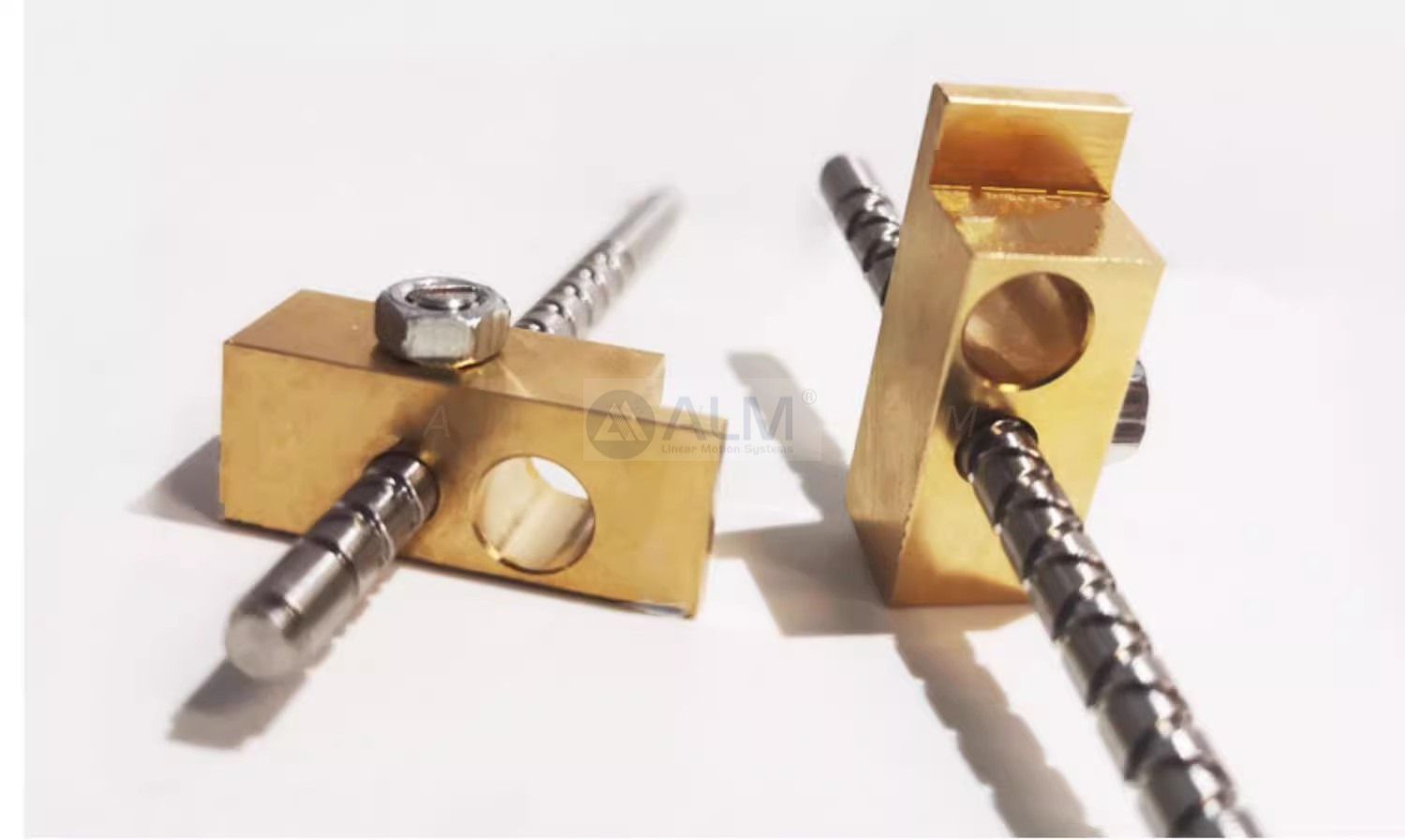

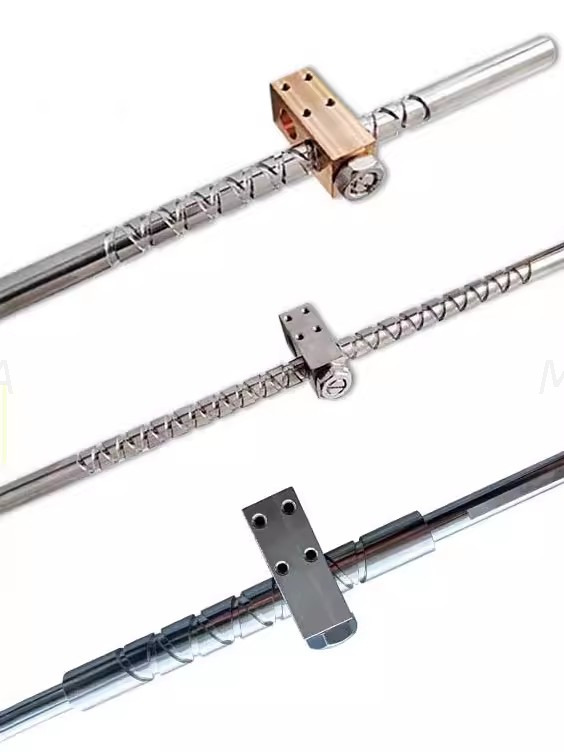

Custom Carbon /Stainless Steel Brass/Bronze Diameter 25mm length 500~800 Reciprocating Self Reversing Screw
With 25x25 self-reversing screw,only one direction of rotation is required to achieve reciprocated bi-directional lateral movement.A crisscross thread pattern allows you to drive the nut back and forth without changing the lead screw's direction of rotation.
| Diamter | 25mm |
| Lead | 25mm |
| Length | According to your needs |
| Shaft end machining | Processing according to your requirements |
| Nut shape and dimension | According to your needs |
| Thread Direction | Right hand thread/left hand thread/right and left hand thread |
| Available screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
Available nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
Available surface coating | Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated,molybdenum disulfide. |
| Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
| Clearance | 7e,higher precision is available upon request |
Contact our sales staff to customize more reciprocating lead screw details.
Custom Carbon /Stainless Steel Brass/Bronze Diameter 25mm length 500~800 Reciprocating Self Reversing Screw
With 25x25 self-reversing screw,only one direction of rotation is required to achieve reciprocated bi-directional lateral movement.A crisscross thread pattern allows you to drive the nut back and forth without changing the lead screw's direction of rotation.
| Diamter | 25mm |
| Lead | 25mm |
| Length | According to your needs |
| Shaft end machining | Processing according to your requirements |
| Nut shape and dimension | According to your needs |
| Thread Direction | Right hand thread/left hand thread/right and left hand thread |
| Available screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
Available nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
Available surface coating | Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated,molybdenum disulfide. |
| Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
| Clearance | 7e,higher precision is available upon request |
Contact our sales staff to customize more reciprocating lead screw details.
