r6 2rs 608 2rs 608z 625zz 626zz 628zz
ALM
8482102000

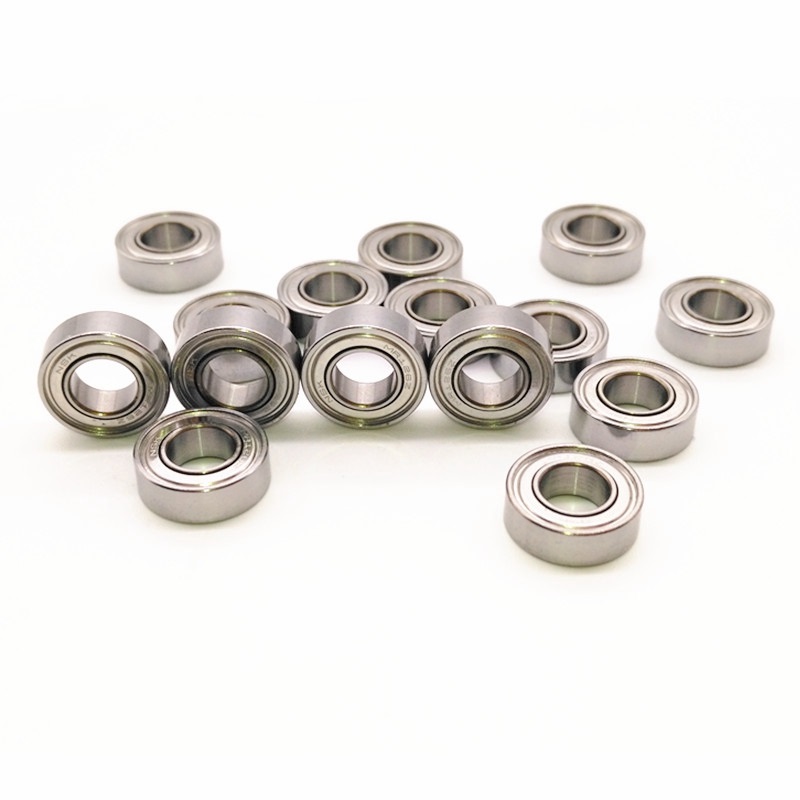

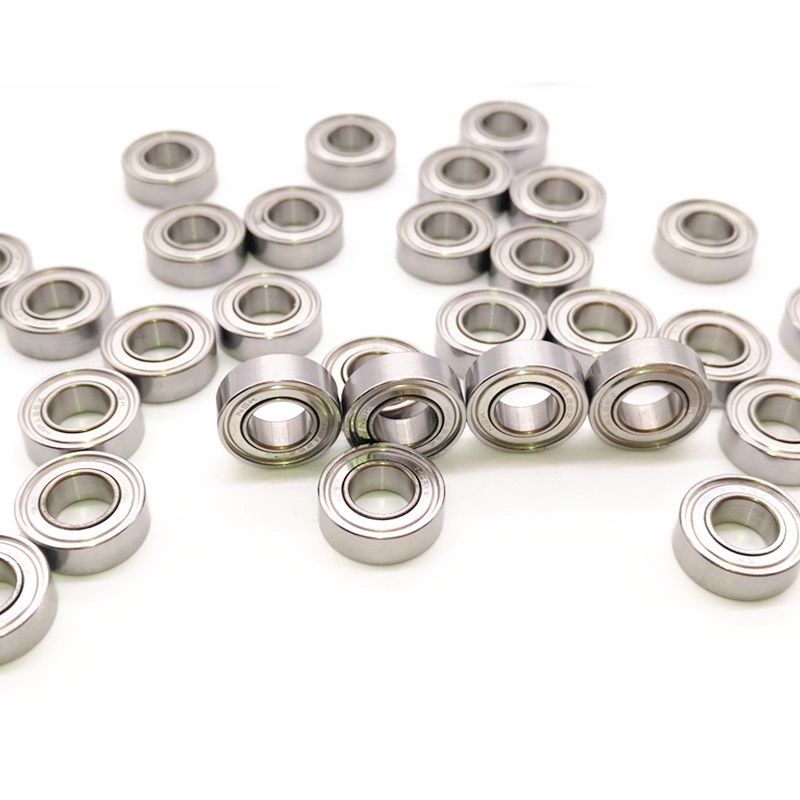

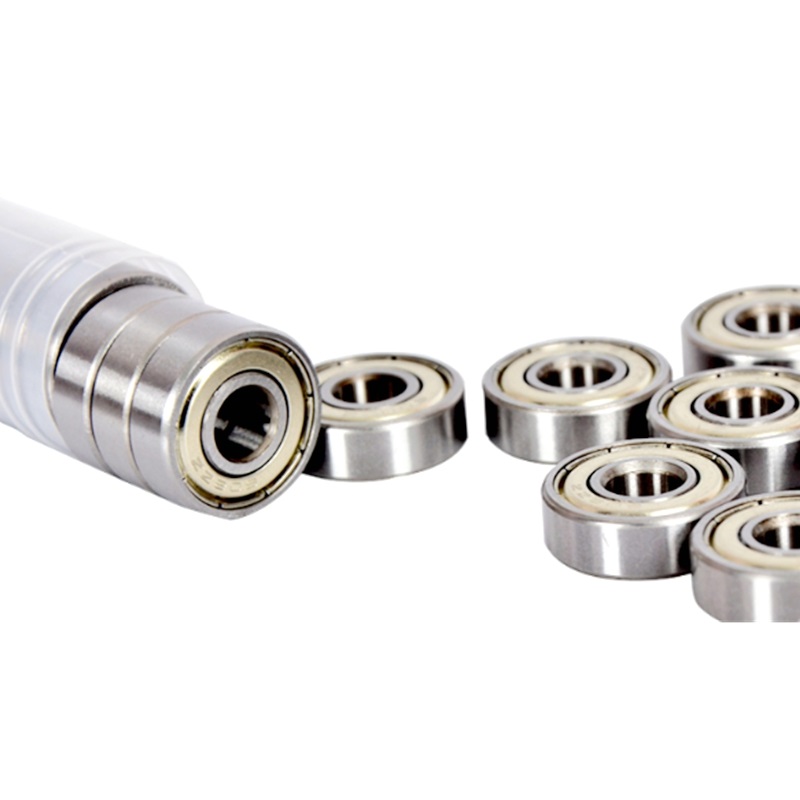

Deep Groove Ball High Precision Abec-7 High Load Skateboard 608Z Bearing
Quality certificate: | ISO9001:2015 |
Series models: | 1) 6000 series: 604 605 606 607 608 609 6000 6001 6002 6003 6004 6005 6006 6007 6008 6009 6010 6011 6012 2) 6200 series: 624.625.626.627.628.629.6200.6201.6202.6203.6204.6205.6206.6207.6208.6209.6210.6211.6212 3) 6300 series: 634.635.636.637.638.639.6300.6301.6302.6303.6304.6305.6306.6307.6308.6309.6310.6311.6312 4) 6400 series: 6403.6404.6405.6406.6407.6408.6409.6410.6411.6412.6413.6414.6415.6416.6417.6418.6419.6420 5) 6700 series: 673.674.675.676.677.678.679.6700.6701.6702.6703.6704.6705 6) 6800 series: 685.686.687.688.689.6800.6801.6802.6803.6804.6805.6806.6807.6808.6809.6810.6811.6812 7) 6900 series: 695.696.697.698.699.6900.6901.6902.6903.6904.6905.6906.6907.6908.6909.6910.6911.6912 8)16000 series: 16001.16002.16003.16004.16005.16006.16007.16008.16009.16010.16011.16012.16013.16014.16015 |
Delivery time: |
|
Advantages: | Low friction ,Long service life ,Enhanced operational reliability ,Consistency of roller profiles and sizes ,Rigid bearing application,Running-in period with reduced temperature peaks ,Separable and interchangeable |

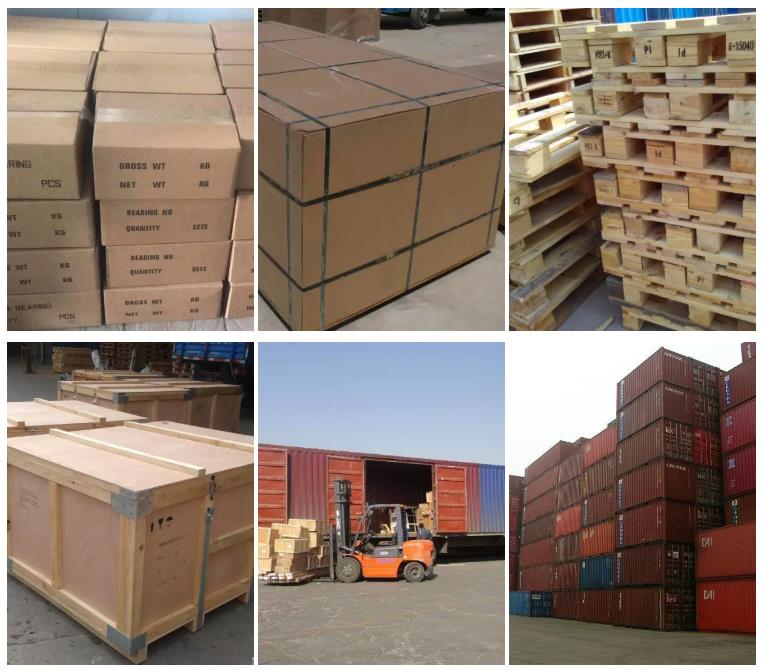

Packing | Standard industrial package or according to your requirement 1.Industrial packing: plastic bag+ carton plywood pallet 2.plastic bag+ white box+carton+plywood pallet 3.commercial packing: plastic bag+color box+carton +plywood pallet |
What is deep groove ball bearings?
Deep groove ball bearings (GB/T 276-1994), also known as single row radial ball bearings, are the most widely used rolling bearings. It is characterized by low frictional resistance and high rotational speed. It can be used on parts with radial load or combined load of radial and axial action. It can also be used on parts with axial load, such as small power motors. Automobile and tractor gearboxes, machine tool gearboxes, general machines, tools, etc.
Deep Groove Ball High Precision Abec-7 High Load Skateboard 608Z Bearing
The basic deep groove ball bearing consists of an outer ring, an inner ring, a set of steel balls and a set of cages. There are two types of deep groove ball bearings: single row deep groove ball bearing and double row deep groove ball bearing.

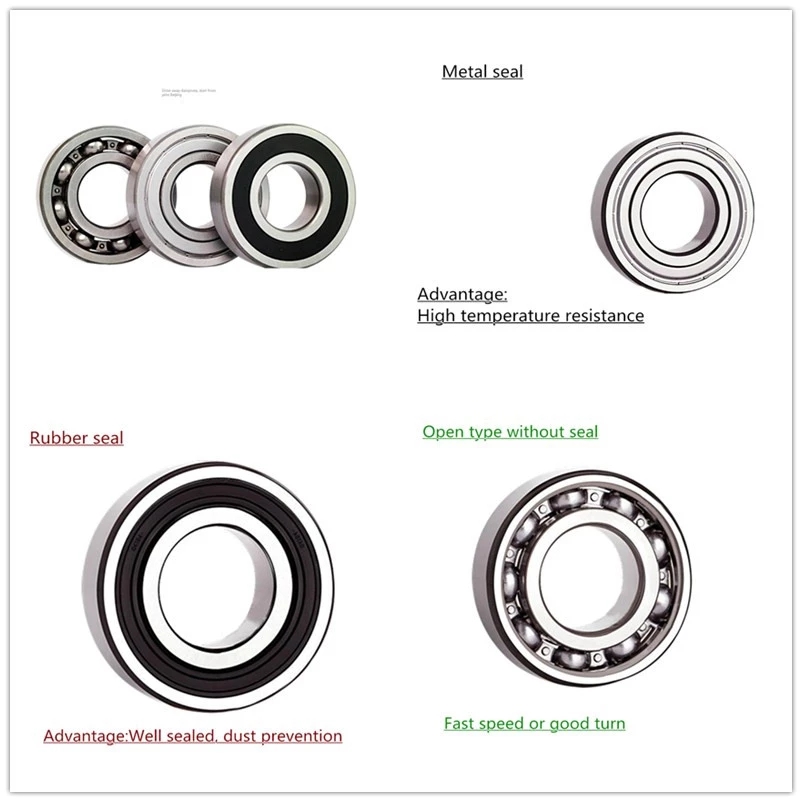

Deep groove ball is divided into two types: sealed and open. The open type means that the bearing does not have a sealing structure. The sealed deep groove ball is divided into dust proof seal and oil proof. seal. The dust seal cover material is stamped from steel plate, which is simple to prevent dust from entering the bearing raceway. The oil-proof type is a contact type oil seal, which can effectively prevent the grease from overflowing inside the bearing.
Deep Groove Ball High Precision Abec-7 High Load Skateboard 608Z Bearing
Deep Groove Ball High Precision Abec-7 High Load Skateboard 608Z Bearing
Quality certificate: | ISO9001:2015 |
Series models: | 1) 6000 series: 604 605 606 607 608 609 6000 6001 6002 6003 6004 6005 6006 6007 6008 6009 6010 6011 6012 2) 6200 series: 624.625.626.627.628.629.6200.6201.6202.6203.6204.6205.6206.6207.6208.6209.6210.6211.6212 3) 6300 series: 634.635.636.637.638.639.6300.6301.6302.6303.6304.6305.6306.6307.6308.6309.6310.6311.6312 4) 6400 series: 6403.6404.6405.6406.6407.6408.6409.6410.6411.6412.6413.6414.6415.6416.6417.6418.6419.6420 5) 6700 series: 673.674.675.676.677.678.679.6700.6701.6702.6703.6704.6705 6) 6800 series: 685.686.687.688.689.6800.6801.6802.6803.6804.6805.6806.6807.6808.6809.6810.6811.6812 7) 6900 series: 695.696.697.698.699.6900.6901.6902.6903.6904.6905.6906.6907.6908.6909.6910.6911.6912 8)16000 series: 16001.16002.16003.16004.16005.16006.16007.16008.16009.16010.16011.16012.16013.16014.16015 |
Delivery time: |
|
Advantages: | Low friction ,Long service life ,Enhanced operational reliability ,Consistency of roller profiles and sizes ,Rigid bearing application,Running-in period with reduced temperature peaks ,Separable and interchangeable |
Packing | Standard industrial package or according to your requirement 1.Industrial packing: plastic bag+ carton plywood pallet 2.plastic bag+ white box+carton+plywood pallet 3.commercial packing: plastic bag+color box+carton +plywood pallet |
What is deep groove ball bearings?
Deep groove ball bearings (GB/T 276-1994), also known as single row radial ball bearings, are the most widely used rolling bearings. It is characterized by low frictional resistance and high rotational speed. It can be used on parts with radial load or combined load of radial and axial action. It can also be used on parts with axial load, such as small power motors. Automobile and tractor gearboxes, machine tool gearboxes, general machines, tools, etc.
Deep Groove Ball High Precision Abec-7 High Load Skateboard 608Z Bearing
The basic deep groove ball bearing consists of an outer ring, an inner ring, a set of steel balls and a set of cages. There are two types of deep groove ball bearings: single row deep groove ball bearing and double row deep groove ball bearing.
Deep groove ball is divided into two types: sealed and open. The open type means that the bearing does not have a sealing structure. The sealed deep groove ball is divided into dust proof seal and oil proof. seal. The dust seal cover material is stamped from steel plate, which is simple to prevent dust from entering the bearing raceway. The oil-proof type is a contact type oil seal, which can effectively prevent the grease from overflowing inside the bearing.
Deep Groove Ball High Precision Abec-7 High Load Skateboard 608Z Bearing
ALM Deep Groove Ball Bearing Technical Data:
Iron Sealing Model | Rubber Sealing Model | internal diameterØ d (mm) | outer diameter Ø D (mm) | width B (mm) | rs min (mm) | dynamic load (kN) | static load(kN) | weight(kg) |
---|---|---|---|---|---|---|---|---|
6000ZZ | 6000RS | 10 | 26 | 8 | 0,3 | 4,55 | 1,96 | 0,02 |
6200ZZ | 6200RS | 10 | 30 | 9 | 0,6 | 6 | 2,6 | 0,032 |
6300ZZ | 6300RS | 10 | 35 | 11 | 0,6 | 8,15 | 3,45 | 0,057 |
6001ZZ | 6001RS | 12 | 28 | 8 | 0,3 | 5,1 | 2,36 | 0,022 |
6201ZZ | 6201RS | 12 | 32 | 10 | 0,6 | 6,95 | 3,1 | 0,039 |
6301ZZ | 6301RS | 12 | 37 | 12 | 1 | 9,65 | 4,15 | 0,064 |
6002ZZ | 6002RS | 15 | 32 | 9 | 0,3 | 5,6 | 2,85 | 0,033 |
6202ZZ | 6202RS | 15 | 35 | 11 | 0,6 | 7,8 | 3,75 | 0,045 |
6302ZZ | 6302RS | 15 | 42 | 13 | 1 | 11,4 | 5,4 | 0,09 |
6003ZZ | 6003RS | 17 | 35 | 10 | 0,3 | 6 | 3,25 | 0,04 |
6203ZZ | 6203RS | 17 | 40 | 12 | 0,6 | 9,5 | 4,75 | 0,067 |
6303ZZ | 6303RS | 17 | 47 | 14 | 1 | 13,4 | 6,55 | 0,117 |
6004ZZ | 6004RS | 20 | 42 | 12 | 0,6 | 9,3 | 5 | 0,068 |
6204ZZ | 6204RS | 20 | 47 | 14 | 1 | 12,7 | 6,55 | 0,105 |
6304ZZ | 6304RS | 20 | 52 | 15 | 1,1 | 16 | 7,8 | 0,153 |
6404ZZ | 6404RS | 20 | 72 | 19 | 1,1 | 29 | 16,3 | 0,415 |
6005ZZ | 6005RS | 25 | 47 | 12 | 0,6 | 10 | 5,85 | 0,077 |
6205ZZ | 6205RS | 25 | 52 | 15 | 1 | 14,3 | 8 | 0,125 |
6305ZZ | 6305RS | 25 | 62 | 17 | 1,1 | 22,4 | 11,4 | 0,232 |
6405ZZ | 6405RS | 25 | 80 | 21 | 1,5 | 33,5 | 19 | 0,56 |
6006ZZ | 6006RS | 30 | 55 | 13 | 1 | 12,7 | 8 | 0,115 |
6206ZZ | 6206RS | 30 | 62 | 16 | 1 | 19,3 | 11,2 | 0,192 |
