Tr3.5x8
ALM
8483900090

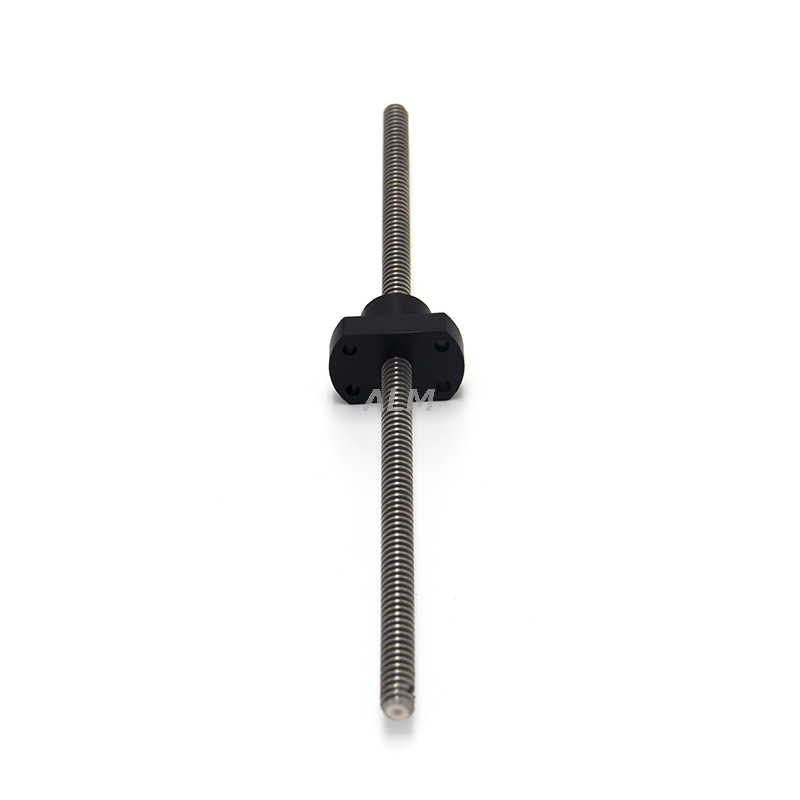

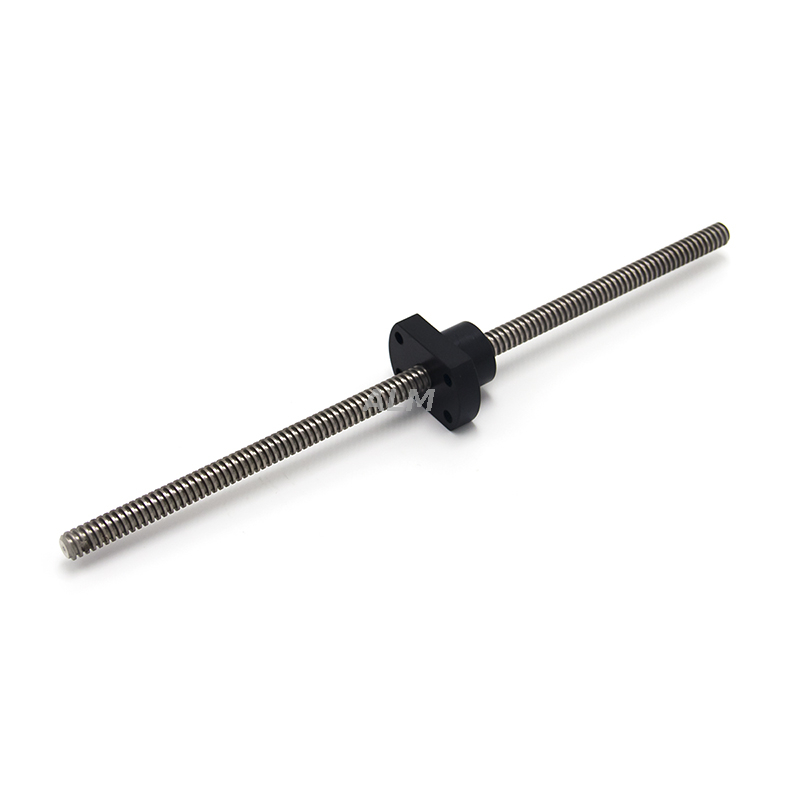

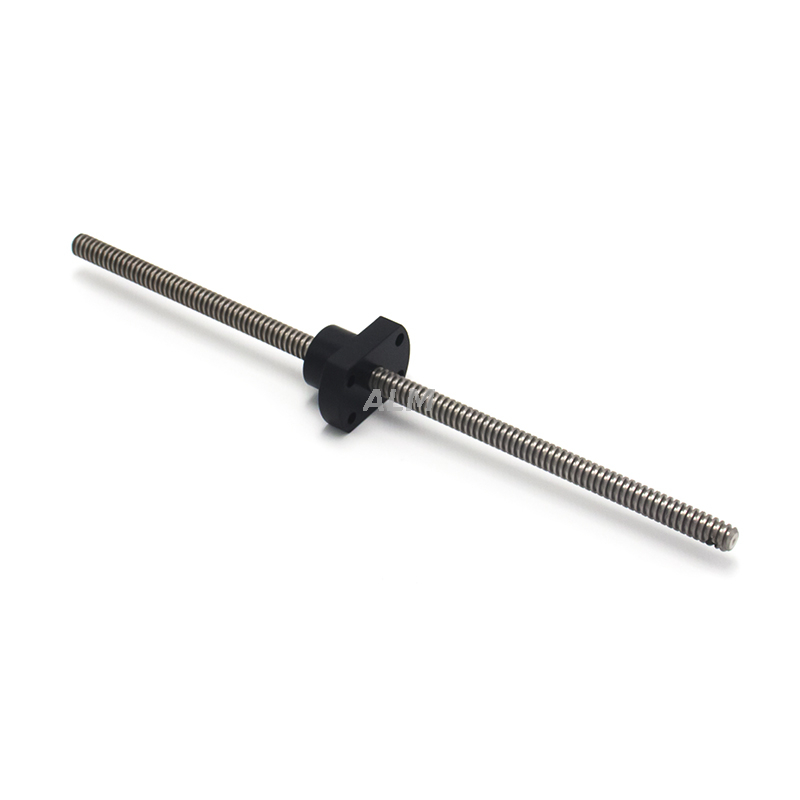

Dia 3.5mm Lead 8mm Miniature Lead Screw Tr3.5x8
Model no:Tr3.5x8
Diameter:3.5mm, lead 8mm
Material:SUS304
Nut material:POM,other lead nut materials are available upon request.
Customized nuts and end machining are available upon drawing
ALM Quality standard: ISO2901-2016 ,DIN103,GB/T5796-1-2005
Clearance: 7e
Other Available Material for Screw: ASTM1045, SUS303, SUS304, SS316, SS316L
Material for nut: Brass, Tin bronze, Phosphor bronze, Aluminum bronze, POM, PEK, nylon, Stainless steel, 1045, Zinc alloy, Brass+Plastic, Aluminum alloy+Plastic, Brass+Steel, Self lubricating(No oil type)
Available surface coating:Zinc-plated, nickel plated, hard chromium plated, fluorine coated,tungsten disulfide, black chorme plated etc.
Mechanical efficiencies for Trapezoidal lead screws range from 20% – 40% depending upon the lead angle, coefficient of friction and nut material. Plastic nuts offer approximately 10% – 20% better efficiency than bronze because of their lower coefficient of friction when running against steel screws.
Trapezoidal lead screws and nuts are widely used and well suited for both manual and power drive applications including:
•Pharmaceutical machinery
•Packaging machinery
•Slide drives
•Metric valve stems
•Medical device drives
•Farm machinery
•Screw press drives
To get more technical files,email to us now!
