Tr3.5x1
ALM
8483900090

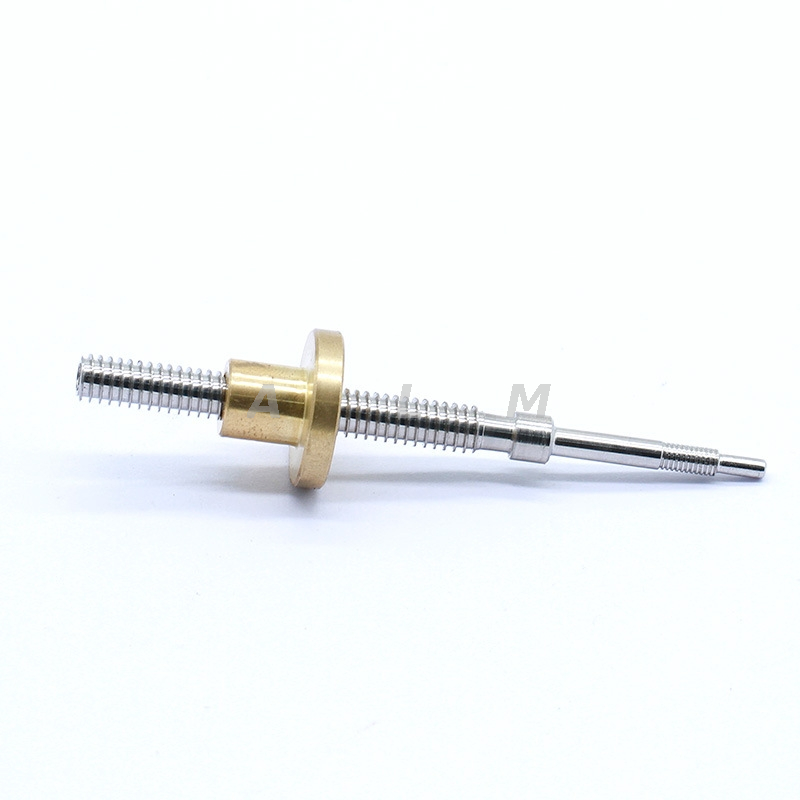

Tr3.5x1 miniature trapezoidal lead screw pitch is 1mm.Tr3.5x1 lead screw is suitable for small and space-limited applications.Tr3.5x1 lead screw with custom brass flange nut has the characteristics of corrosion resistance,wear resistance and long service life.ALM provides custom service,lead screw can be manufactured according to customer requirements.ALM lead screws are exported to 72 countries,deeply trusted by foreign customers.
| Product name | T3.5 Miniature Tr3.5x1 Trapezoidal Lead Screw with Brass Flange Nut |
| Lead screw model | Diameter 3.5mm,Lead 1mm,Pitch 1mm |
| Lead screw material | ASTM1045,SUS303,SUS304,SS316,SS316L (other customized materials,according to customer requirements) |
| Lead nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEK,nylon,POK,Stainless steel,1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
| Lead screw quality standard | ISO2901-4,DIN103 |
| Lead screw clearance | 7e,higher precision is available upon request |
For more information,pls contact the salesman.
| Lead Screw Thread Types |
1.T ISO Trapezoidal Thread Din103
For transmission and position adjustment,widely used in the mechanical industry.
2.H High-helix Screws
A high-helix lead screw,speedy multi-start lead screw,or steep lead screw features a high pitch that is used to transform a smaller radial movement into a large axial movement.
3.M ISO Metric Thread (60°)
The most common form of thread used for fastening and precision transmission.
4.A ACME Thread (29°)
Inch threads can also be used for fastening connections,but not for high accuracy.
5.R Knuckle Thread
With the same arc thread as ball screw,the transmission is smoother.
6.G Gothic thread
Gothic double arc thread,offering the advantages of ball screw,is similar a new kind of lead screw.
7.X Self-reversing thread
A screw that makes the slide block reciprocate without changing the rotation direction of the spindle.
| Common Lead Screw Shaft End Machining Drawing |
ALM provides lead screw shaft end machining custom services,the following is the common shaft end machining drawing,other lead screw shaft end machining according to customer requirements.
Milling Circlip
Processing Thread
Milling Keyway
Milling Slotted Drives
Milling Hex Socket
Milling Flat
| Various Lead Screw and Lead Nut Materials |
ALM provides a variety of lead screw and lead nut materials for your selection.You can also contact us,we will give you professional advice according to your specific application.
1.plastic materials
2.metal materials
| Our Advantages |
| Free service | Performance testing |
| Selection of auxiliary | |
| Technical solution | |
| Please contact the salesman for details | |
Custom service | Stainless steel and other customized materials |
| Surface treatment | |
| Custom lead nut and shaft end machining | |
| Please contact the salesman for details | |
| Lead Screw Application |
Lead screws are commonly used in instrument-level applications that require smooth,precise,clean,and maintenance-free operation.The common application industry of the lead screw are shown in the figure below.
| Lead Screw Parameter |
A broad range of lead nuts are available,other nut type or size can be made upon drawing
When selecting the right nut for an application,there are a few things to keep in mind.Bronze nuts provide superior service at high working loads.They should be well lubricated with a good quality,Extreme Pressure(EP)grease compatible with the operating environment.Plastic nuts can be used without lubrication and are popular for low load applications.
Other ready lead screw models are available
