Diameter 12mm Lead 3mm Lead Screw Tr12X3

Professional skills
Customized service
Fast delivery:5~10 days
Availability:
Quantity:
  • Tr12x3

  • ALM

  • 8483900090

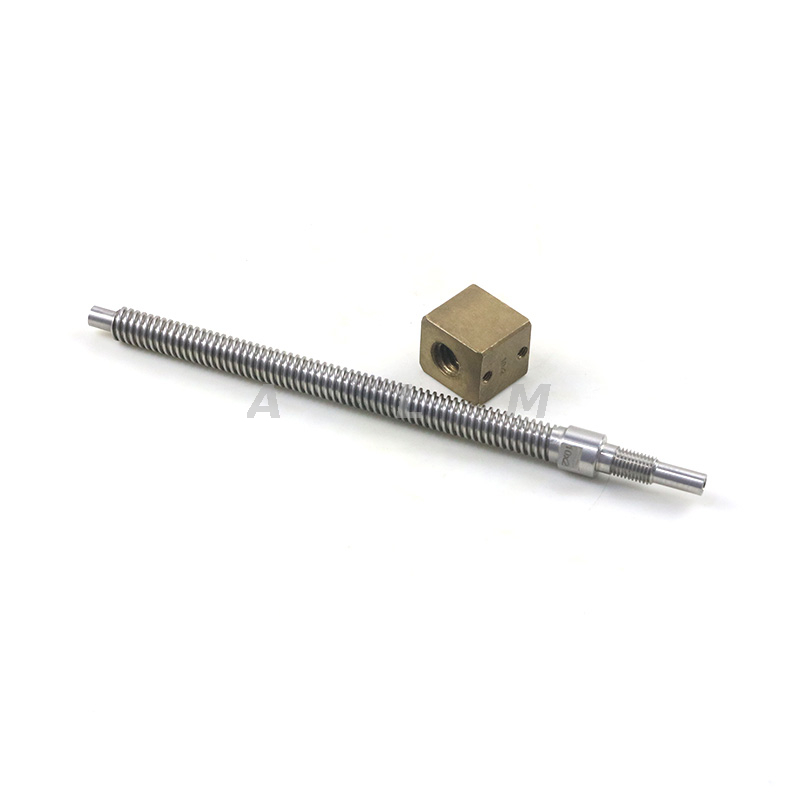

Diameter 12mm Lead 3mm Lead Screw Tr12X3. Lead Screw Tr12 is a miniature trapezoidal lead screw type.The diameter of the trapezoidal lead crew is 12mm and the lead of the trapezoidal lead screw is 3mm. The trapezoidal lead screw pitch is 3mm.ALM has rich experience in cooperation with different buyers and believes that ALM's specialized technology can absolutely satisfy the buyer's request.


lead screw motor

Model no Tr12x3
Parameters Diameter 12mm, pitch 2mm,lead 3mm
Material SUS304
Nut material Brass
ALM Quality standard ISO2901-2016 ,DIN103,GB/T5796-1-2005
Clearance 7e


Linear lead screw


Transmission Screw thread types


  Thread   Types

                                                Features
Trapezoidal   thread T ISO Trapezoldal Thread:For transmission and posltion adjustment, wldely used  In the  mechanical Industry.
Metric thread M ISO Metric Thread (60° ):The most common form of thread used for fastening   and  precislon transmission.
ACME thread English threads can also be used for fastening connectlons,but not for high accuracy
Round thread Wlth the same arc thread as ball screw, the transmission is smoother.
Goethe thread Gothic double arc thread,drawing the advantages of ball screw, is the new products.
Reclprocating   thread X Reclprocating thread:A screw that makes the slldle block reclprocate without   changing the rotation direction of the spindle.



Design Considerations

Most applications can be satisfied by selecting from ALM stock sizes listed. However, OEM may find an optimum design solution requiring a special size or special features such as stub series threads, special diameter and lead combinations, multiple start thread, etc. For these applications, ALM is uniquely qualified with over 15 years of experience in serving the OEM market. Extensive tooling and software resources can be utilized to assist the OEM designer in finding the very best metric solution for any application. Contact ALM Application Engineering for more details.


Nut Selection

When selecting the right nut for an application, there are a few things to keep in mind. Bronze nuts provide superior service at high working loads. They should be well lubricated with a good quality, Extreme Pressure (EP) grease compatible with the operating environment. Plastic nuts can be used without lubrication and are popular for low load applications.


Trapezoidal lead screws and nuts are widely used and well suited for both manual and power drive applications including:

Pharmaceutical machinery

Packaging machinery

Slide drives

Metric valve stems

Medical device drives

Farm machinery

Screw press drives



lead screw catalog.pdf


  To get more technical files,email to us now!




Lead screw workshop

ALM possesses factory occupying 8000 square meters with 120 employees.Among which,more than 30 professional technical engineers in lead screws,ball screws and the mating linear motion parts.


All factory key manufacturing and testing equipments are imported from Japan, like CNC lathe, internal and external high-precision grinder, screw grinding machine, etc. ALM has passed the ISO9001:2015 and TS16949 Quality Management System.


The R&D achievements over many years bring the company more than 25 national patents on lead screw and ball screw design.



Production technology


Quality testing facilities


Quality testing
