| Quantity: | |
|---|---|
Tr13X28.575
ALM
8483900090

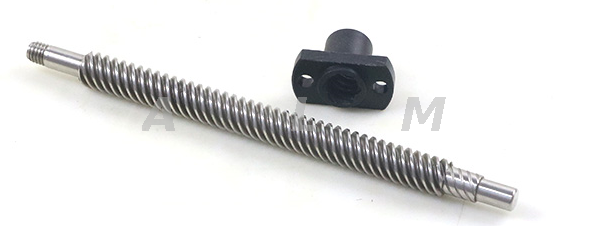

Diameter 13mm Lead 28.575mm Lead Screw Tr13X28.575. The diameter of the trapezoidal lead crew is 13mm and the lead of the trapezoidal lead screw is 28.575mm. The trapezoidal lead screw pitch is 9.525mm.ALM has been specializing in lead screw manufacturing for 16 years, providing lead screws suitable for various mechanical, construction, electric, chemical, marine, aviation and other engineering equipment.
| Screw Material | ASTM1045, SUS303, SUS304, SS316, SS316L |
| Nut material | POM, Brass, Bronze, PTFE ,C45 |
| Quality standard | ISO2901-4, DIN103 |
| Clearance | 7e, higher precision is available up on request |
| Thread type | Direction of thread | ||
| Code | Meaning | Code | Meaning |
| Tr | ISO trapezoidal thread(30°） | RH | Right Hand |
| A | ACME thread（29°） | LH | Left Hand |
| M | ISO Metric thread（60°） | RL | Bi-directional thread |
Feature: Non self locking,High surface smoothness,low friction,good straightness
Application: 3D printer, CNC router, medical machine, Semiconductor and LCD Production Equipment, Machine Tools and Injection Molding Machines, Semiconductor Manufacturing Equipment, Laboratory Equipment etc..
Packing and Delivery:In cartons or wooden cases
Sample order:DHL, FeDex, UPS VIP account with discount.So you can get favorable shipping freight.
Bulk order:Negotiated professional shipping agent by air or by sea.
