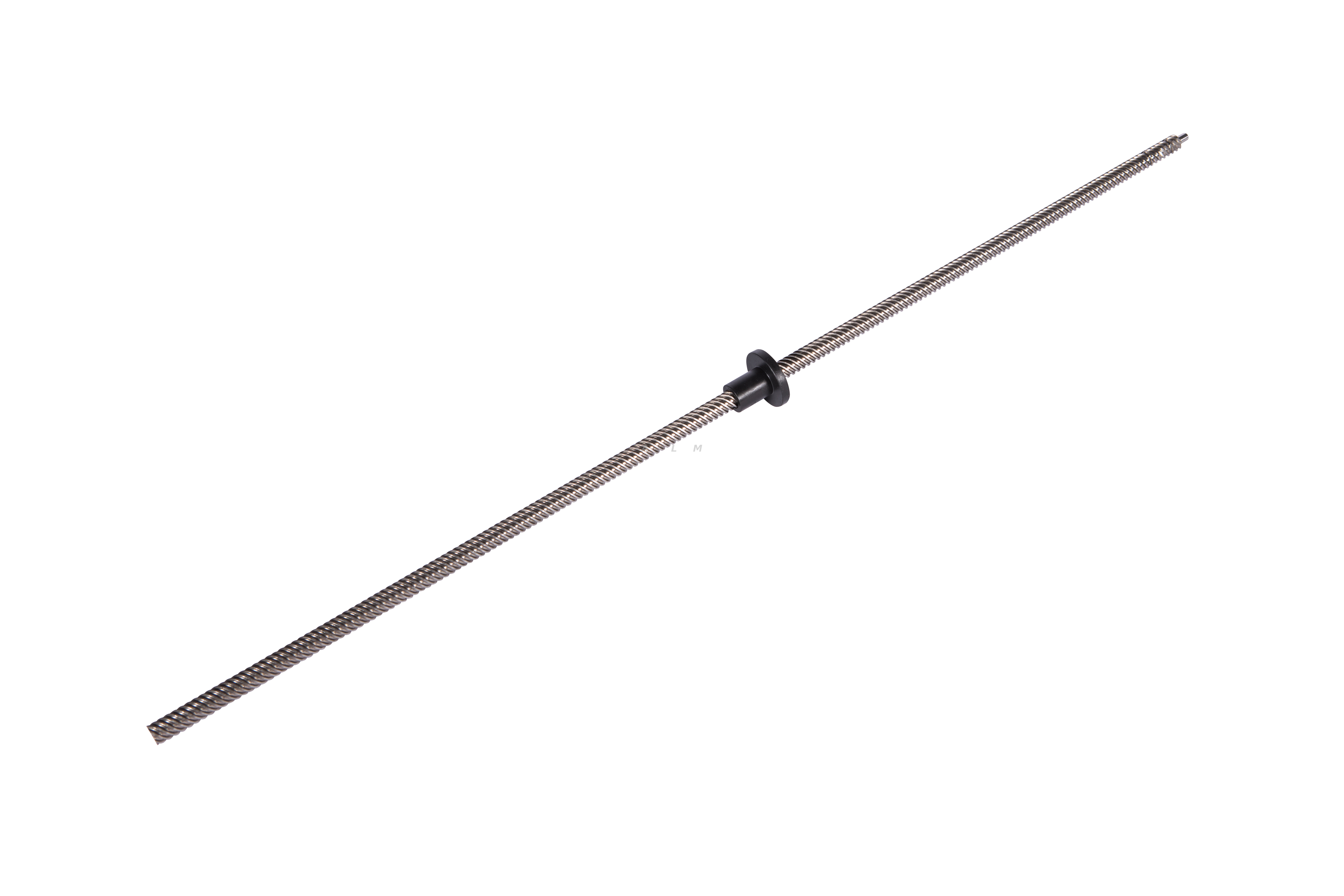

Diameter 8mm Lead15mm Lead Screw Tr8X15

Wide application
Rich experience
Support for custom
Integrity management
Availability:
Quantity:
  • Tr8X15

  • ALM

  • 8483900090

Diameter 8mm Lead 15mm Lead Screw Tr8X15. Lead Screw Tr8 is a miniature trapezoidal lead screw type.The diameter of the trapezoidal lead crew is 8mm and the lead of the trapezoidal lead screw is 15mm. The trapezoidal lead screw pitch is 2.5mm.ALM has been specializing in screw manufacturing for 16 years and has become the leading screw manufacturing company in the industry after continuous accumulation.However, ALM will not stop here; ALM will be constantly seeking ways to continue providing our customers with good quality service and products.



Lead screw selection





What is the lead and pitch of lead screw?


Lead=pitch*starts


Lead and pitch

ALM's lead screw manufacturing technology:


Left hand and right hand thread lead screw

lead screw processing technology


ALM lead screw production tolerance


ALM lead screw tolerance sheet



Available Material for screwASTM1045, SUS303, SUS304, SS316, SS316L

Material for nutBrass, Tin bronze, Phosphor bronze, Aluminum bronze, POM, PEEK, nylon, POK, Stainless steel, 1045, Zinc alloy, Brass+Plastic, Aluminum alloy+Plastic, Brass+Steel, Self lubricating(No oil type)

Quality standardISO2901-4, DIN103

Clearance7e



A broad range of lead nuts are available,other nut type or size can be made upon drawing


Lead nut


Part of ALM standard models:


lead screw list

lead screw list 2


Other models are available upon drawing


ALM lead screw Feature: Self locking, High surface smoothness, low friction, good straightness, flexible production


Lead screw Application3D printer, CNC router, medical machine, Semiconductor and LCD Production Equipment, Machine Tools and Injection Molding Machines, Semiconductor Manufacturing Equipment, Laboratory Equipment etc..


Sample order:DHL, FeDex, UPS VIP account with discount.So you can get favorable shipping freight.

Bulk order:Negotiated professional shipping agent by air or by sea.


Contact us for a quote now!

Lead screw workshop

ALM possesses factory occupying 8000 square meters with 120 employees.Among which,more than 30 professional technical engineers in lead screws,ball screws and the mating linear motion parts.


All factory key manufacturing and testing equipments are imported from Japan, like CNC lathe, internal and external high-precision grinder, screw grinding machine, etc. ALM has passed the ISO9001:2015 and TS16949 Quality Management System.


The R&D achievements over many years bring the company more than 25 national patents on lead screw and ball screw design.



Production technology


Quality testing facilities


Quality testing
