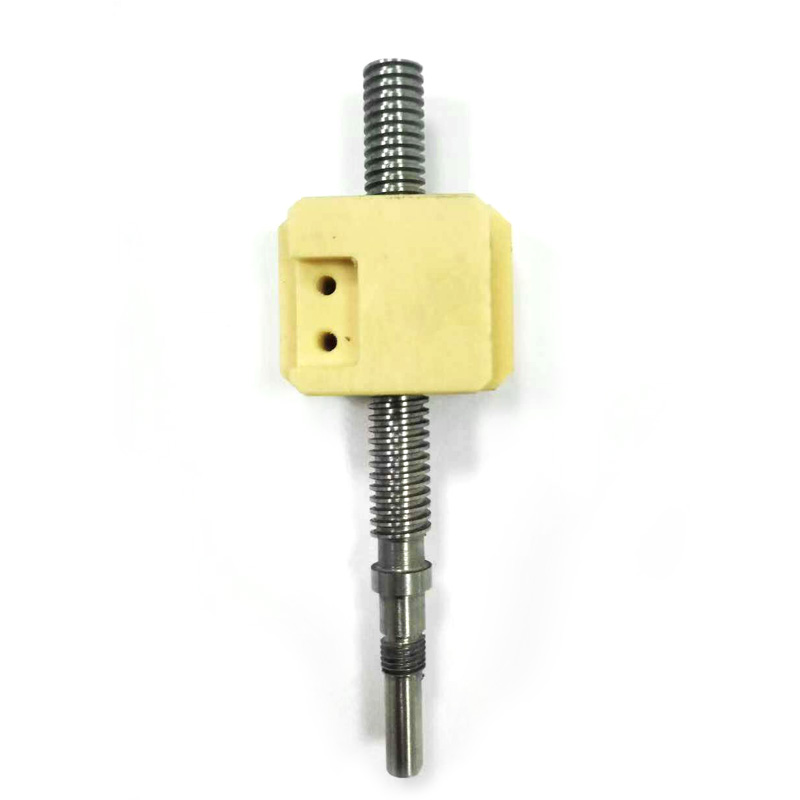

High Quality Tr8x4 Pitch 2mm Trapezoidal Transmission Screw
Model no:Tr8x4
Diameter:8mm, pitch 2mm, two starts
Material:SUS304
Nut material:brass
Customized nuts and end machining are available upon drawing
ALM Quality standard: ISO2901-2016 ,DIN103,GB/T5796-1-2005
Clearance: 7e
Transmission Screw thread types
| Thread Types | Features |
| Trapezoidal thread | T ISO Trapezoldal Thread:For transmission and posltion adjustment, wldely used In the mechanical Industry. |
| Metric thread | M ISO Metric Thread (60° ):The most common form of thread used for fastening and precislon transmission. |
| ACME thread | English threads can also be used for fastening connectlons,but not for high accuracy |
| Round thread | Wlth the same arc thread as ball screw, the transmission is smoother. |
| Goethe thread | Gothic double arc thread,drawing the advantages of ball screw, is the new products. |
| Reclprocating thread | X Reclprocating thread:A screw that makes the slldle block reclprocate without changing the rotation direction of the spindle. |
Design Considerations
Most applications can be satisfied by selecting from ALM stock sizes listed. However, OEM may find an optimum design solution requiring a special size or special features such as stub series threads, special diameter and lead combinations, multiple start thread, etc. For these applications, ALM is uniquely qualified with over 15 years of experience in serving the OEM market. Extensive tooling and software resources can be utilized to assist the OEM designer in finding the very best metric solution for any application. Contact ALM Application Engineering for more details.
Nut Selection
When selecting the right nut for an application, there are a few things to keep in mind. Bronze nuts provide superior service at high working loads. They should be well lubricated with a good quality, Extreme Pressure (EP) grease compatible with the operating environment. Plastic nuts can be used without lubrication and are popular for low load applications.
Trapezoidal lead screws and nuts are widely used and well suited for both manual and power drive applications including:
•Pharmaceutical machinery
•Packaging machinery
•Slide drives
•Metric valve stems
•Medical device drives
•Farm machinery
•Screw press drives
To get more technical files,email to us now!
